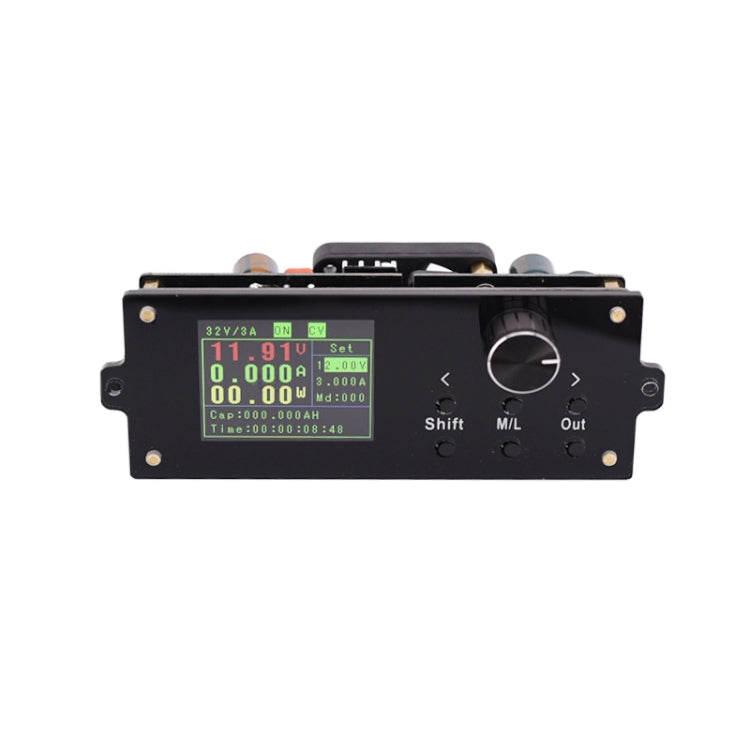

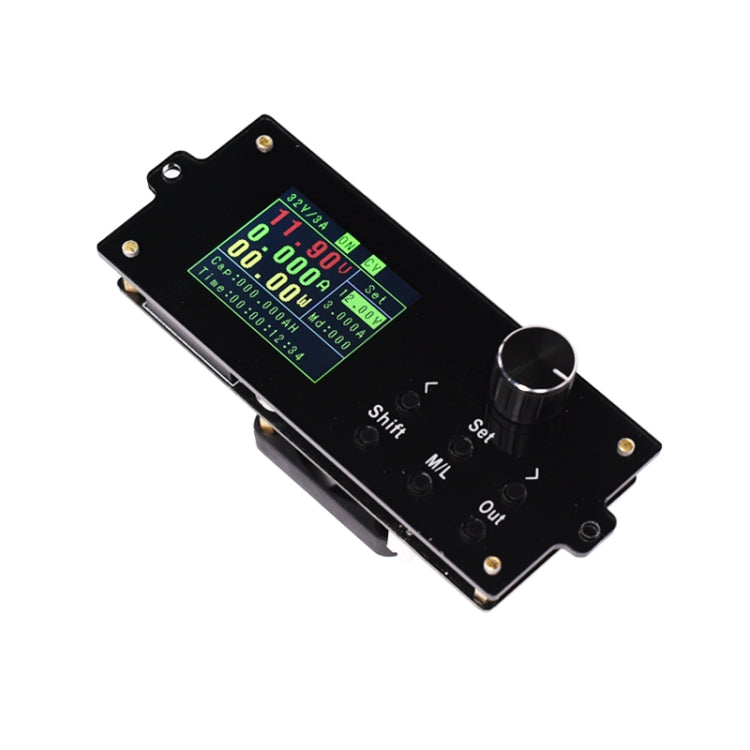

DPX3203 Adjustable Constant Voltage Current Regulator Power Supply Buck Module

Name: DPX3203 Adjustable Constant Voltage Current Regulator Power Supply Buck Module
Brand: PMC Jewellery
SKU: TBD0602107301A
Price: 749.00 ZAR
Availability: InStock

R 749.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Input voltage range: 6-40V
2. Output voltage adjustment range: 0-32V (input must be greater than output)
3. Output current adjustment range: 0-3A
4. Input protection mode: reverse connection/overvoltage protection
5. Output protection mode: (Ovp) overvoltage, (Ocp) overcurrent, (Opp) overpower
6. Output power: 0-60W
7. Output voltage setting resolution: 10mV
8. Output current setting resolution: 1mA
9. Output ripple: less than 100mVpp (input 35V, output 12V, current 2A)
10. 100Hz fluctuation transmission ratio: less than 1/10000
11. Storage operation: There are 10 groups of parameters stored in M0-M9

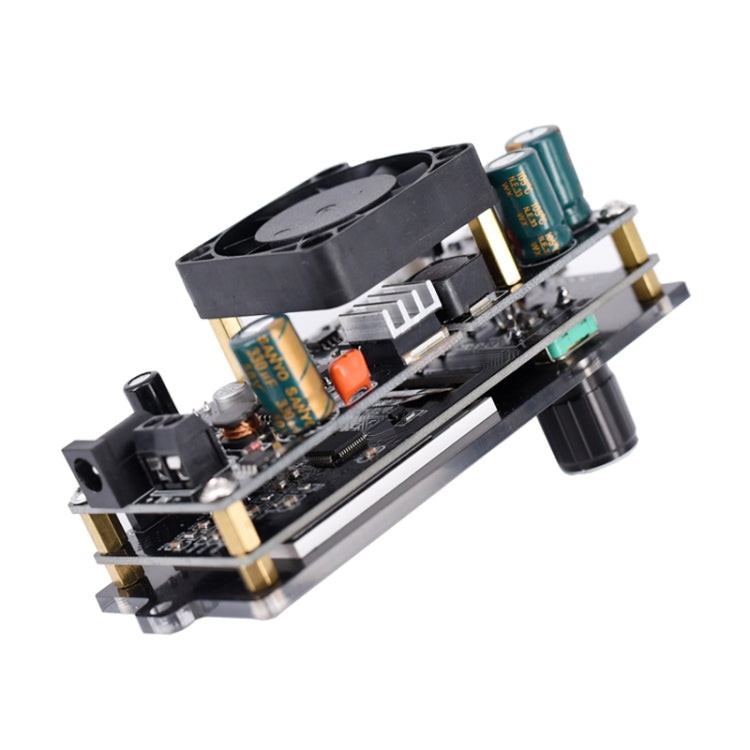

12. Cooling method: onboard radiator and cooling fan
13. Cooling fan startup conditions: output current greater than 0.5A or output power greater than 25W

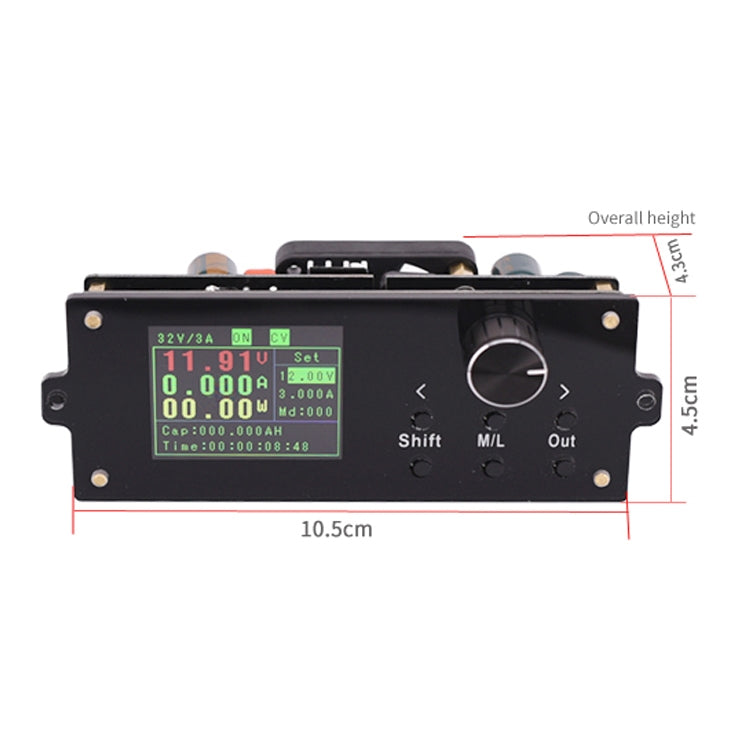

14. Size: about 10.5x4.5x4.3 cm
15. Weight: about 95g

Features:
1. Using a microprocessor, the output voltage and current can be accurately adjusted and displayed

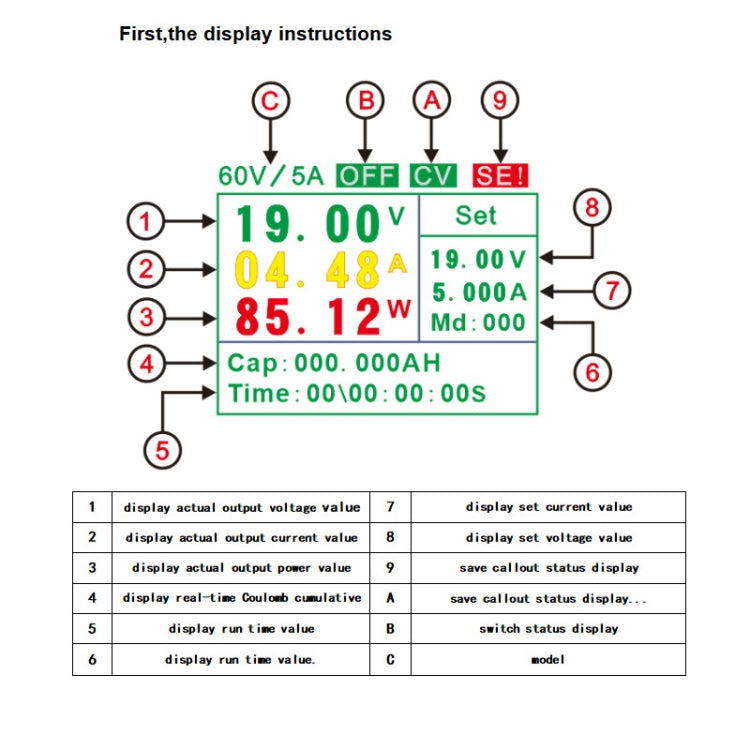

2. Adopt 1.8-inch color LCD display, which can display the working status of voltage, current, capacity, time and power supply in real time
3. It is convenient and quick to adjust and read parameters through buttons and knobs, and it is convenient to save and recall parameters
4. The output overvoltage (Ovp), overcurrent (Ocp), and overpower protection (Opp) can be set, and the output can be turned off when the output exceeds the set value
5. The built-in cooling fan ensures that the power device will not be damaged due to overheating
6. It can output constant voltage and constant current
7. With input reverse connection protection function, it can prevent damage to the power supply due to input reverse connection
