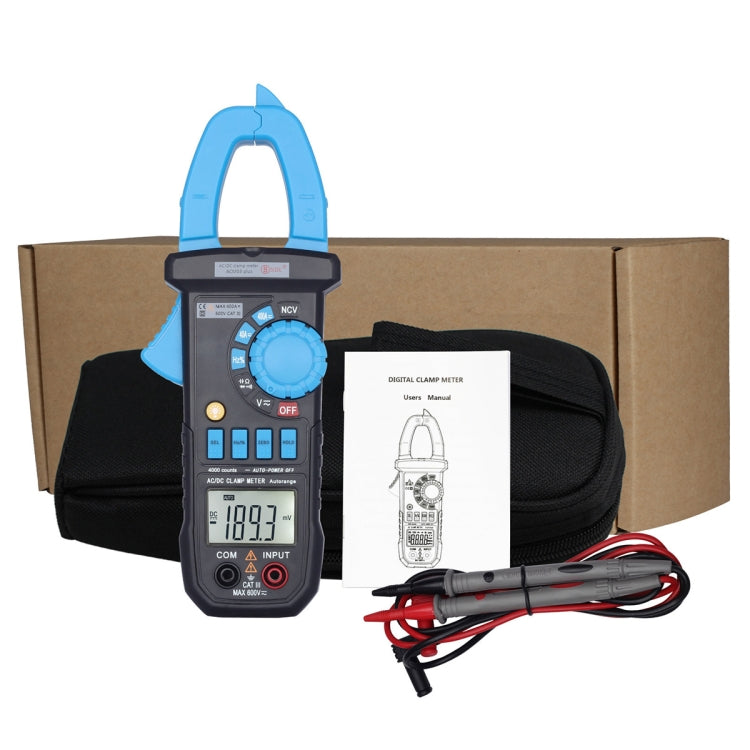

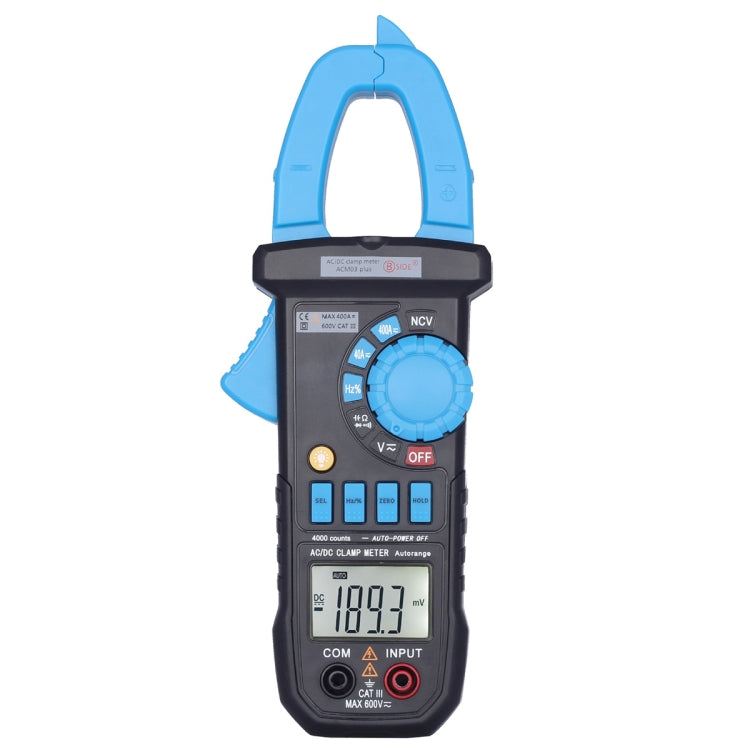

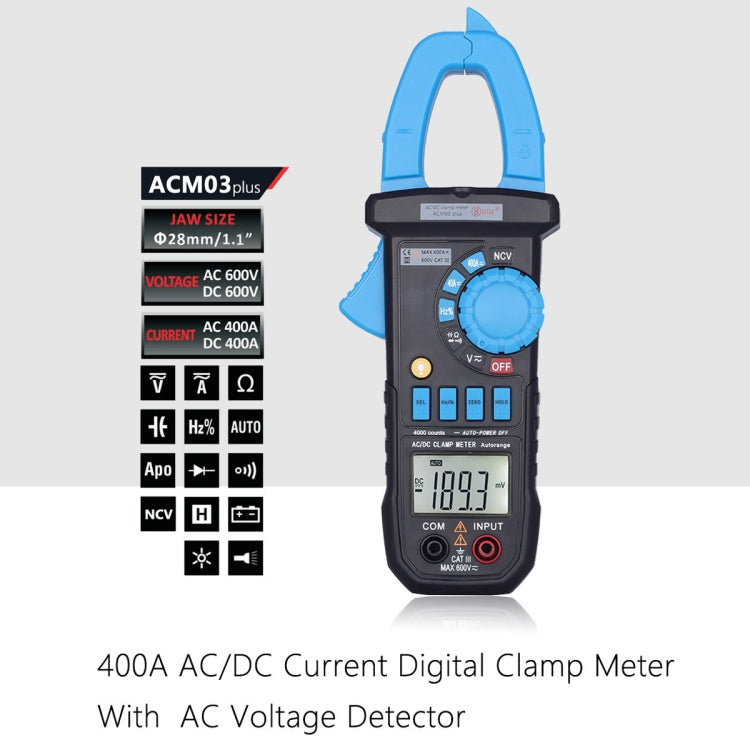

BSIDE ACM03 Plus 400A AC / DC Clamp Meter

Name: BSIDE ACM03 Plus 400A AC / DC Clamp Meter
Brand: BSIDE
SKU: HC5852
Price: 1079.00 ZAR
Availability: InStock

R 1,079.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. It is designed according to the relevant safety requirements of iec1010-1 and iec1010-2-032
2. Used to measure AC and DC current
3. Non-contact voltage detection (NCV)
4. AC/DC voltage, resistance, capacitance, frequency, diode and circuit, etc.
5. Auto/Manual range
6. Pass section test, duty cycle test

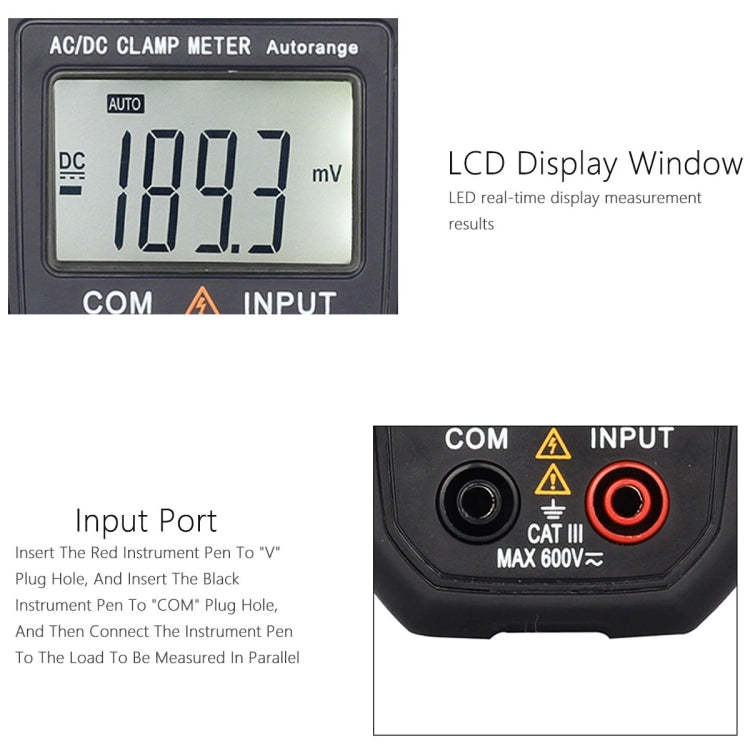

7. LCD display data

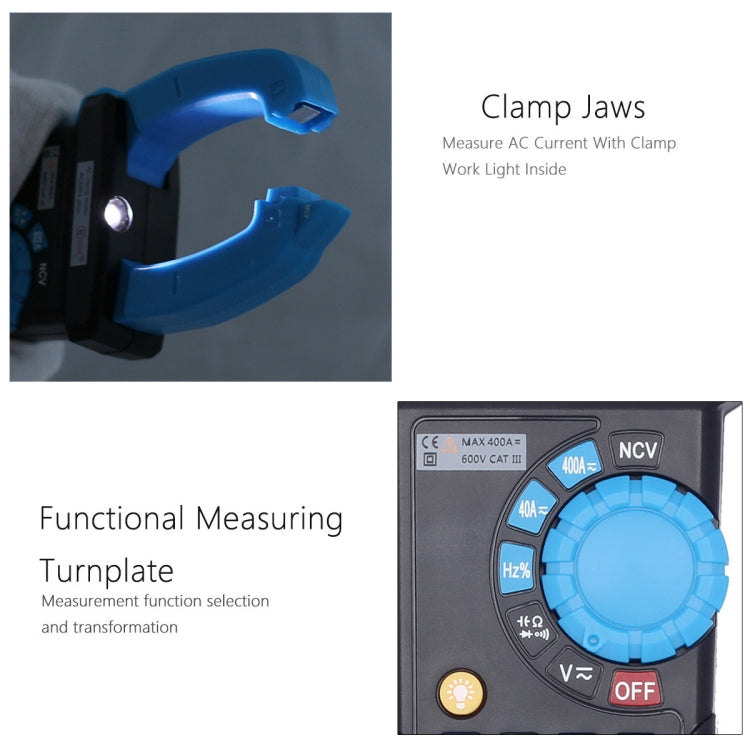

8. Clamp head lighting and backlight
9. Data retention.
10. Display 3999 word count
11. DC voltage: 400m/4V/40V/400V/600+-0.8%
12. AC voltage: 400mV+-0.8%, 4V/40V/400V/600V+-1.2%
13. Alternating current: 40A/400A+-3.0%
14. DC current: 40A/400A+-3.0%
15. Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm+-1.2%, 40Mohm+-2.0%
16. Capacitance: 40nF/400nF/4uF/40uF/100uF+-3.0%
17. Frequency: 50Hz/500Hz/5000Hz/50kHz/100kHz+-1.0%
18. Non-contact voltage detection (NCV): 90-1000V (50-500Hz)
19. Power supply: 3x1.5V, AAA battery (not included)
20 Product size: 21.5x7x2.7cm
21. Product weight: 300g
