Waveshare 7.8 inch 1872x 1404 E-Ink Display HAT for Raspberry Pi

Name: Waveshare 7.8 inch 1872x 1404 E-Ink Display HAT for Raspberry Pi
Brand: Waveshare
SKU: ZY23044897
Price: 3099.00 ZAR
Availability: InStock

R 3,099.00

Em promoção Esgotado

Envio calculado na finalização da compra.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview

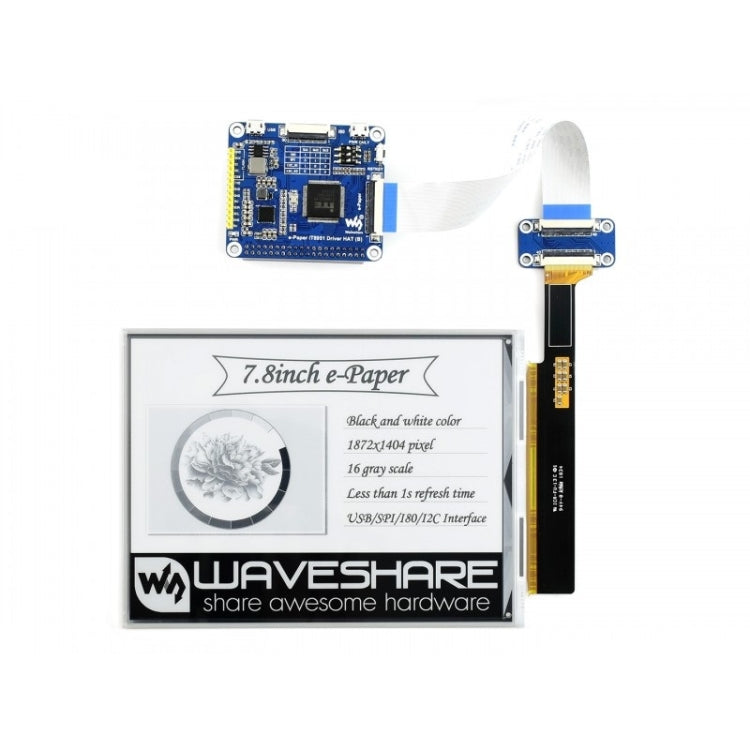

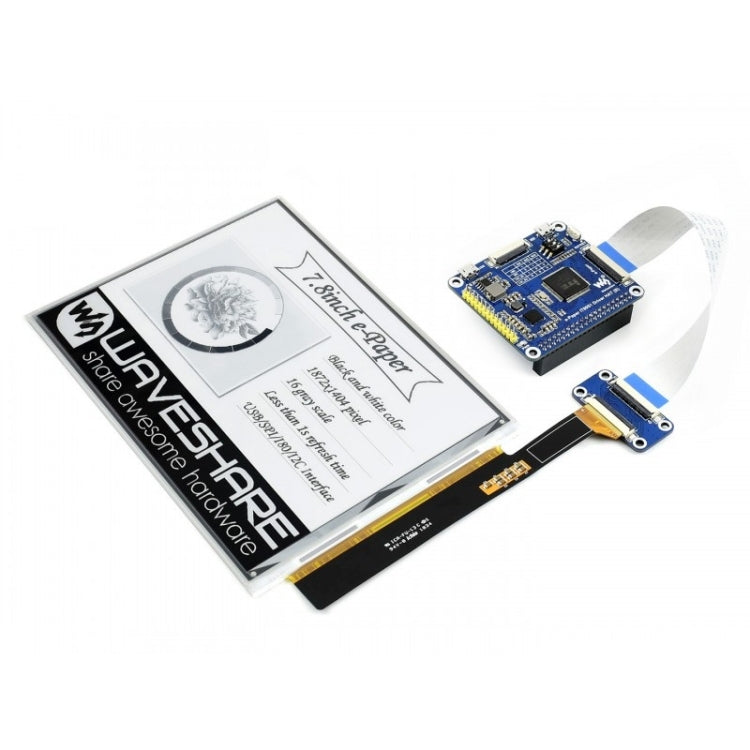

1. This is an E-Ink display HAT for Raspberry Pi, 7.8 inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.
2. Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Low power consumption, basically power is only required for refreshing
3. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
4. USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
5. Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications
1. Operating voltage: 5V
2. Interface: USB/SPI/I80/I2C
3. Outline dimension: 173.8mm x 127.6mm x 0.78mm
4. Display size: 158.184mm x 118.638mm
5. Dot pitch: 0.0845mm x 0.0845mm
6. Resolution: 1872 x 1404
7. Display color: Black, white
8. Gray scale: 2-16 (1-4 bit)
9. Full refresh time: 450ms
10. Total refresh power: 1.2W(typ.)
11. Total standby power: 0.1W(typ.)
12. Viewing angle: >170 degree
13. Weight: 77g

Packing List:

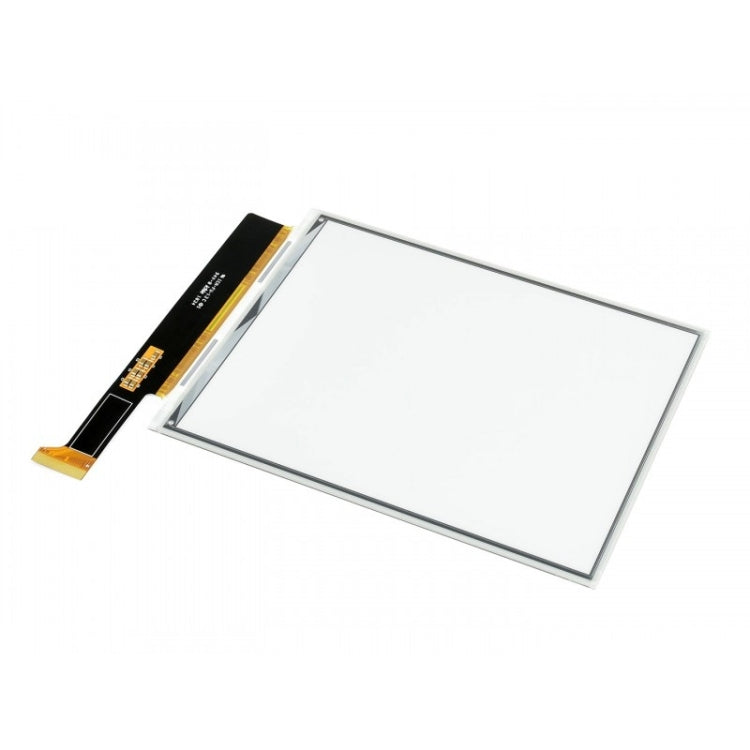

1. 7.8 inch e-Paper x1

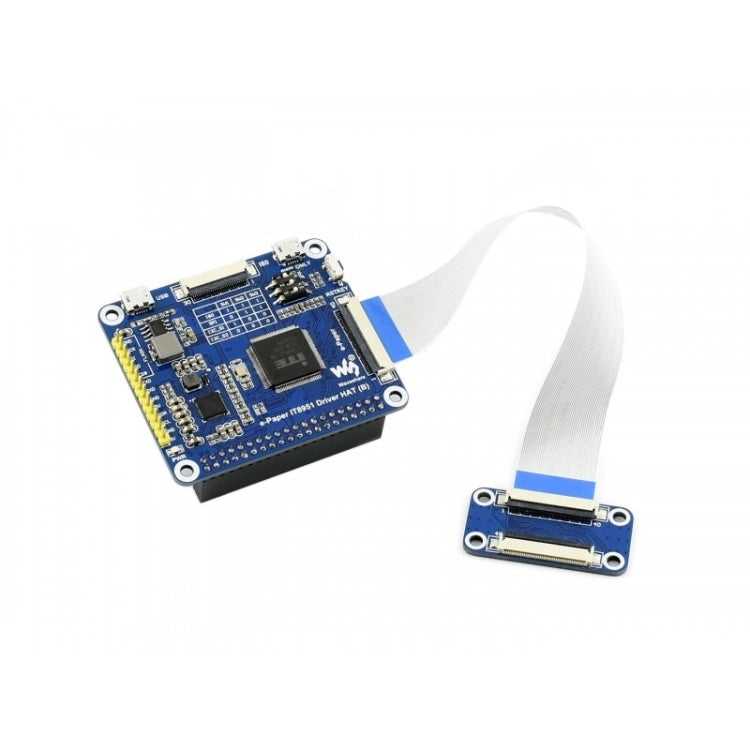

2. e-Paper IT8951 Driver HAT (B) x1
3. 7.8 inch e-Paper Adapter x1
4. 33PIN FFC (same side contact) x1
5. USB type A plug to micro B plug cable x2

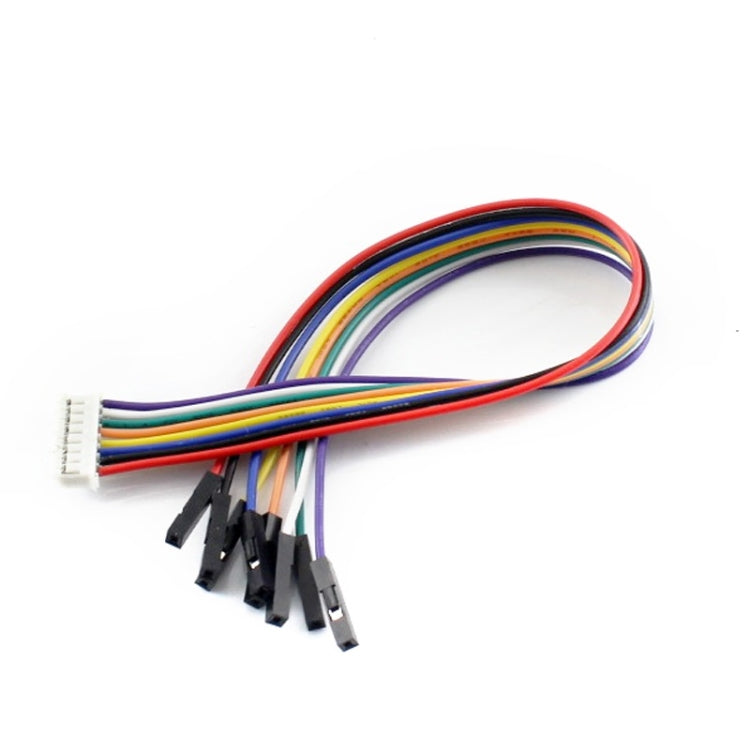

6. PH2.0 20cm 8Pin x1

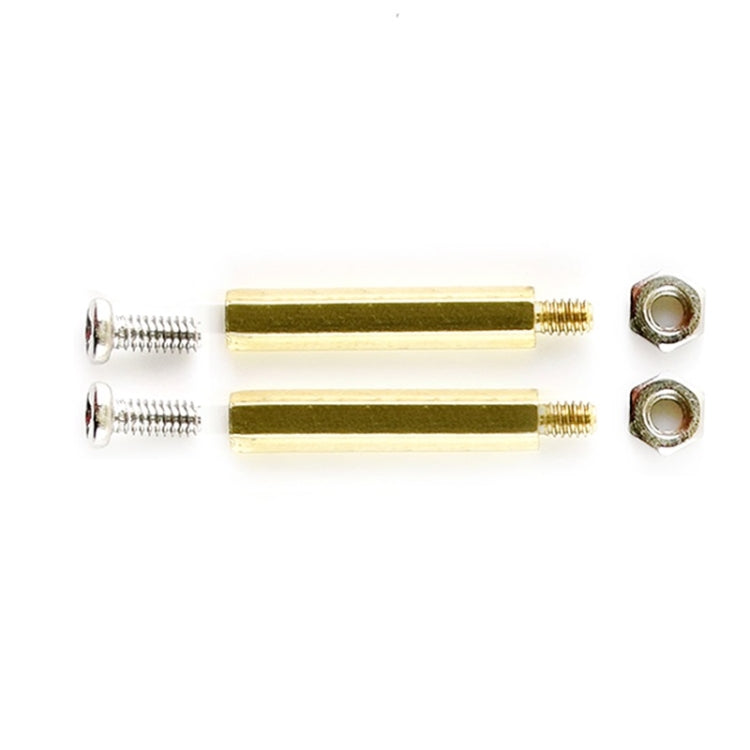

7. RPi screws pack (2pcs) x1
