Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range

Name: Waveshare RS485-HUB-8P Industrial-grade Isolated 8-ch RS485 Hub, Rail-mount Support, Wide Baud Rate Range
Brand: Waveshare
SKU: TBD04144801
Price: 1149.00 ZAR
Availability: InStock

R 1,149.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Interface standard: compliant with RS485 standard
2. Physical interface: RS485 wiring terminal
3. Communication rate: 300-460800bps baud rate (adaptive)
4. Support points: each RS485 interface can support up to 32 nodes
5. Communication distance: 1200m (9600bps), the higher the communication rate, the shorter the distance
6. Working mode: RS485 two-wire (A, B), half-duplex transparent transmission
7. Power supply voltage: DC 9-24V
8. Transmission medium: ordinary parallel wire/twisted pair

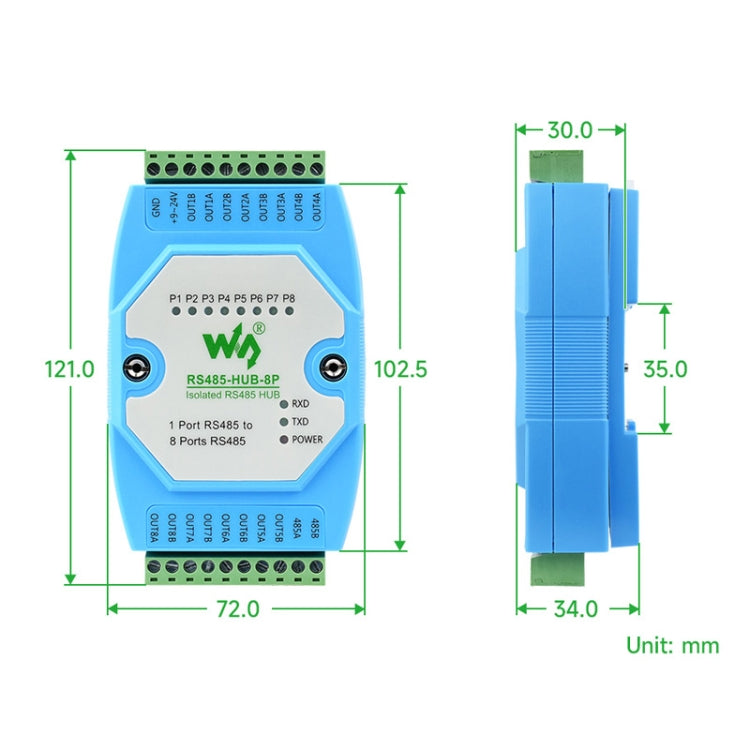

9. Size: about 12.1 x 7.2 x 3cm

Features:

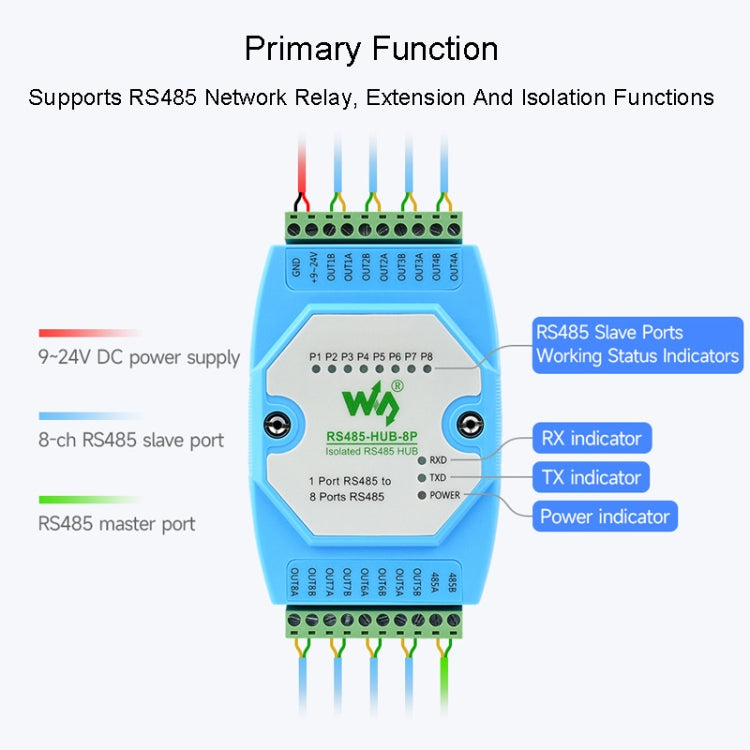

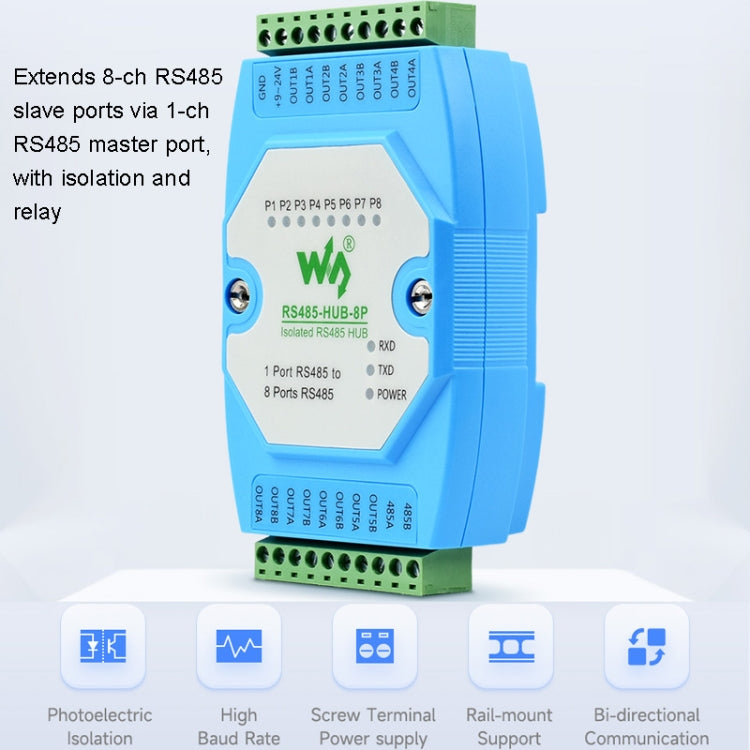

1. 8-way RS485 slave port can be extended by one 485 master port with isolation and relay

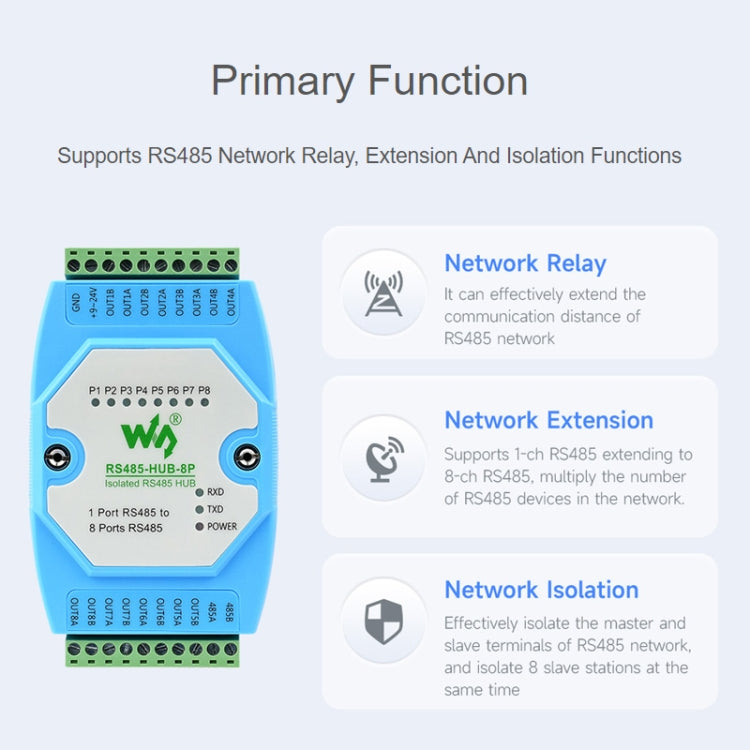

2. RS485 network relay, extension and isolation functions can be realized

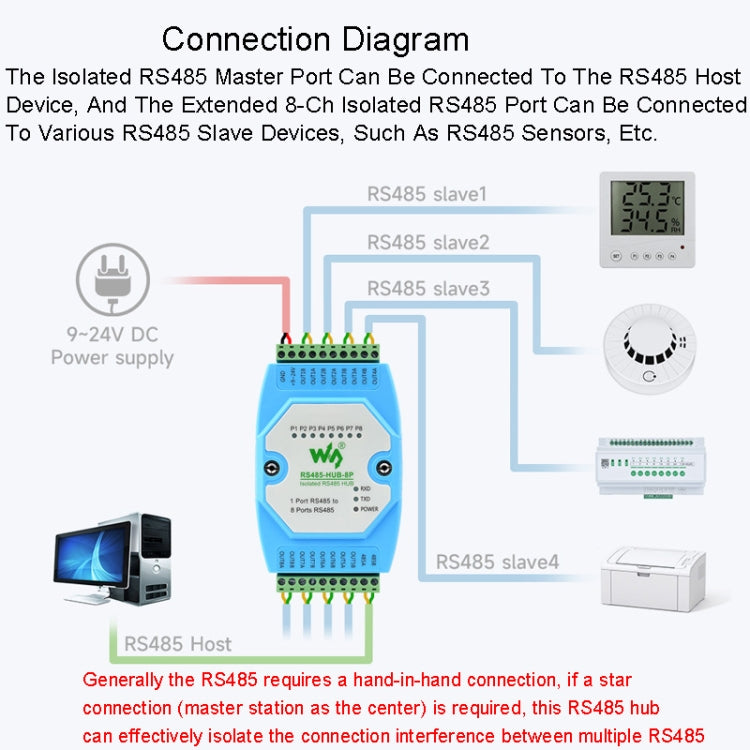

3. The isolated RS485 interface at the RS485 master port can be connected to RS485 master control devices, and the extended 8-way isolated RS485 interface can be externally connected to various RS485 slave devices, such as RS485 sensors, etc.

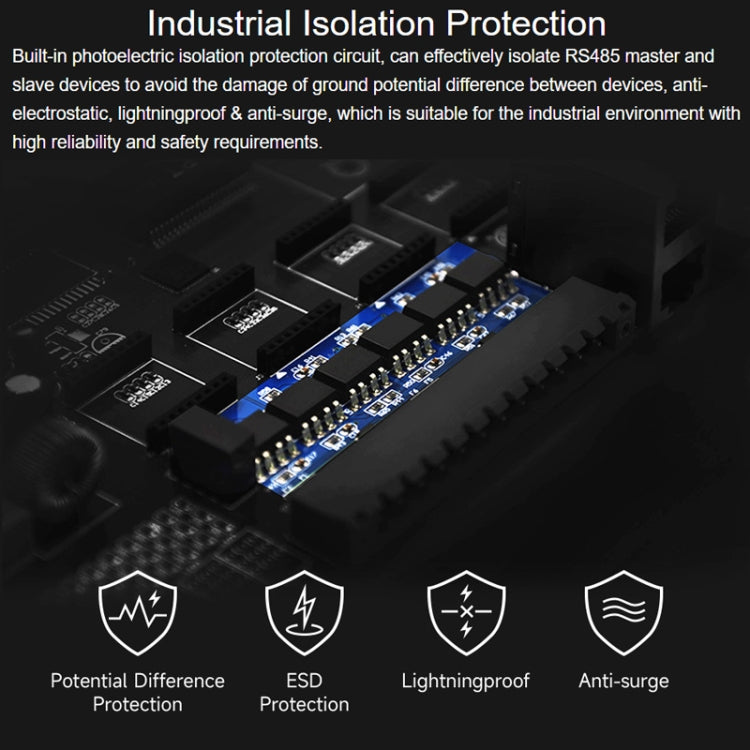

4. Built-in optoelectronic isolation protection circuit, RS485 master and slave devices are isolated, which can effectively protect RS485 master and slave devices from the damage of ground potential difference between devices, static electricity, surge, which can be applied to industrial environment with high requirements of reliability and safety

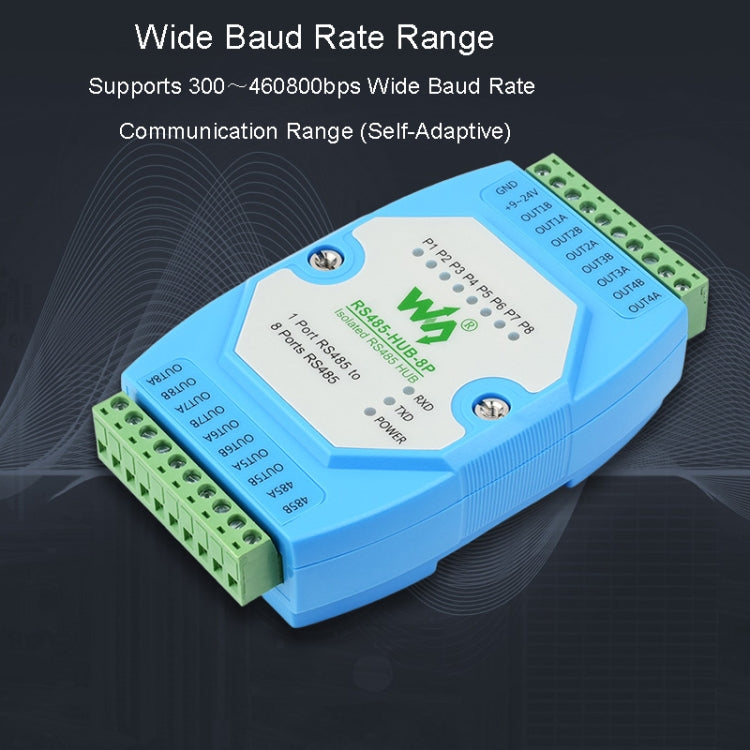

5. Wide baud rate range, support 300-460800bps wide baud rate communication range (self-adaptive)

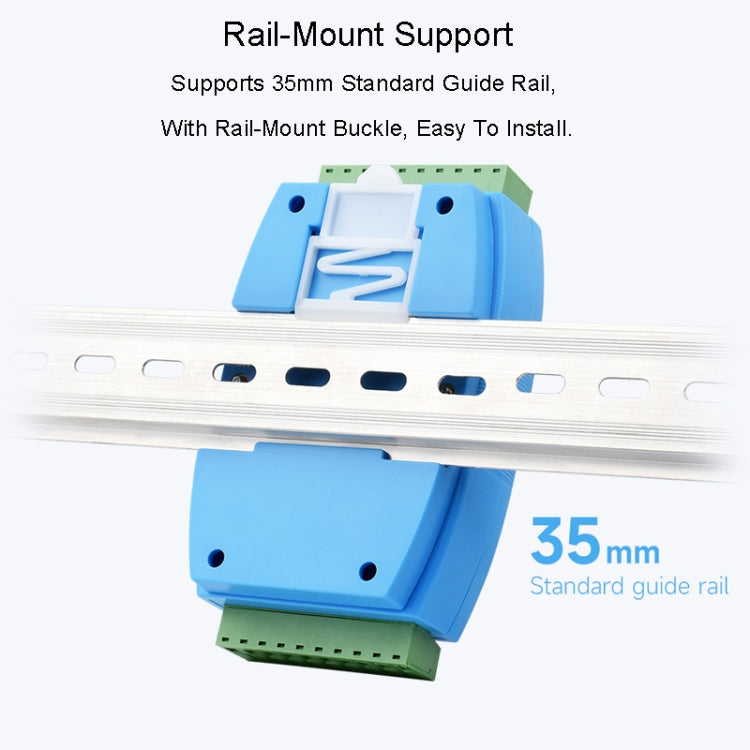

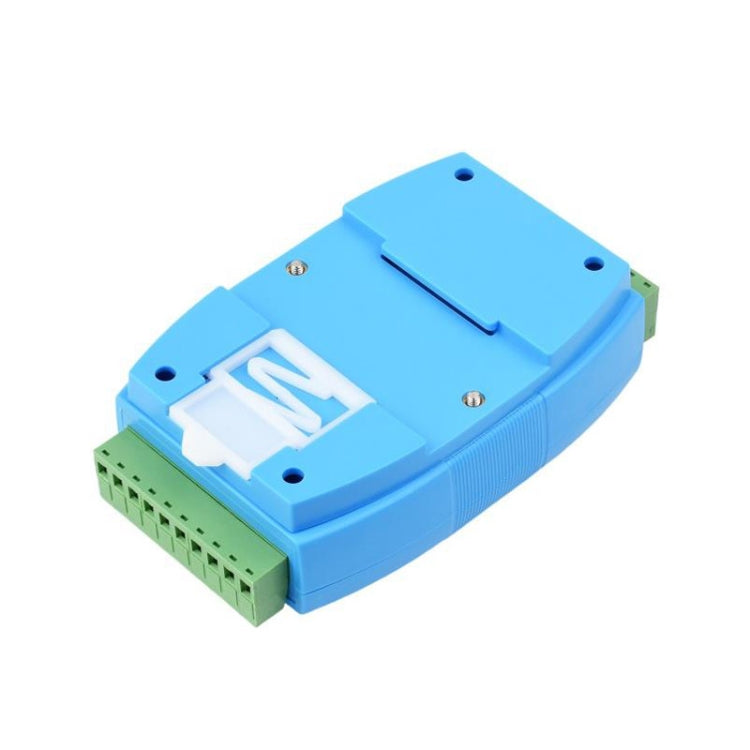

6. Support 35mm standard rail with rail clips, easy to install
