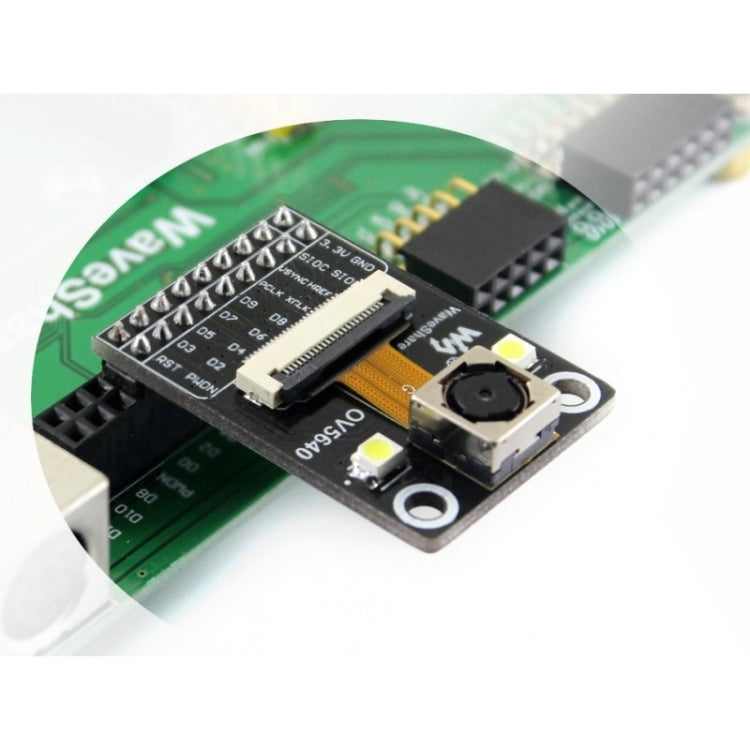

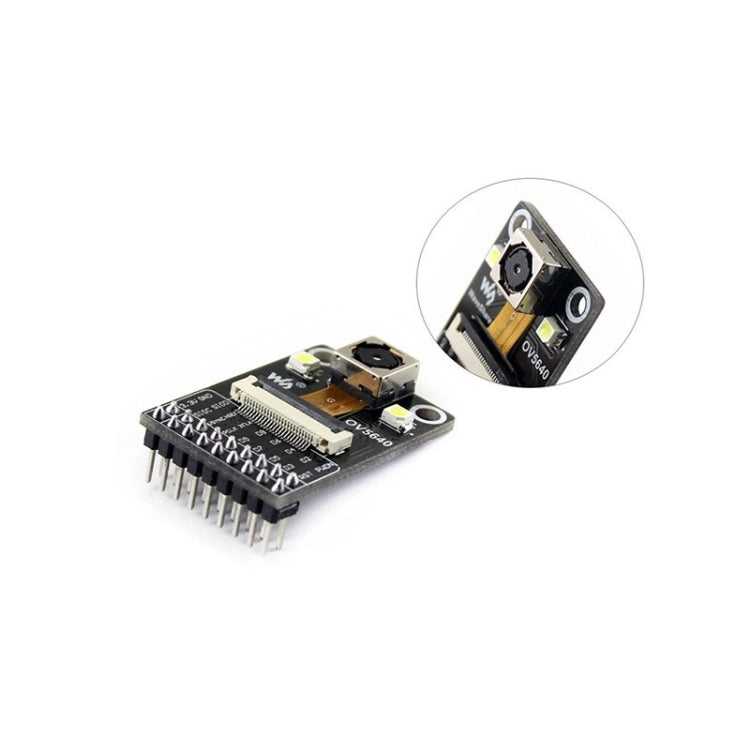

Waveshare OV5640 Camera Module Board (C), 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Waveshare OV5640 Camera Module Board (C), 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Regular price R 619.00
Regular price Sale price R 619.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Auto focusing by detecting the object distance
4. Onboard flash LED, allowed to take pictures in the dark
5. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
6. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.8
- Focal Length: 3.37mm (adjustable)
- Diagonal: 67.4 degree
7. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
8. Operating Voltage: 3.3V
9. Control Interface: SCCB (I2C compatible)
10. Data Interface: DVP 8-bit
11. Dimension: 35.70mm x 23.90mm
