Waveshare

Waveshare Flexible RGB Full-color LED Matrix Panel, 2.5mm Pitch, 96x48 Pixels, Adjustable Brightness Bendable PCB

Name: Waveshare Flexible RGB Full-color LED Matrix Panel, 2.5mm Pitch, 96x48 Pixels, Adjustable Brightness Bendable PCB
Brand: Waveshare
SKU: TBD01350857
Price: 929.00 ZAR
Availability: InStock

R 929.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Pixel: 96 x 48=4608 dots
2. Pitch: 2.5mm
3. Pixel format: 1R1G1B
4. Viewing angle: greater than 140 degrees
5. Control mode: synchronous
6. Drive: 1/16 scan

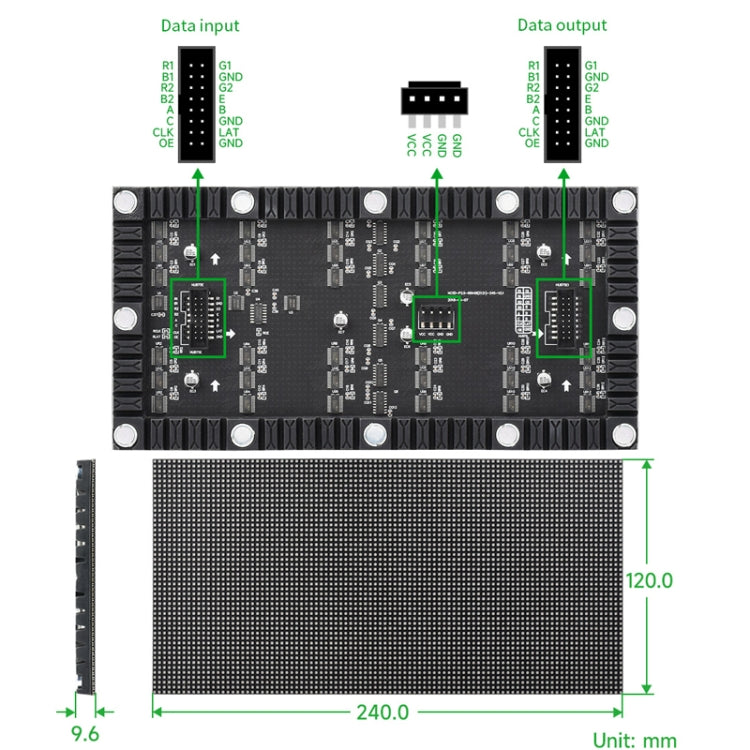

7. Connector: HUB75
8. Power supply: 5V / 2.5A (VH4 connector input)
9. Power: within 20W
10. Size: 24 x 12cm

Features:
1. 4608 independent RGB led, full color display, brightness adjustable
2. 96x48 pixels, 2.5mm pitch, allows displaying text, color image or animation
3. 240x120mm size, moderate size, suitable for DIY desktop display or wall mount display

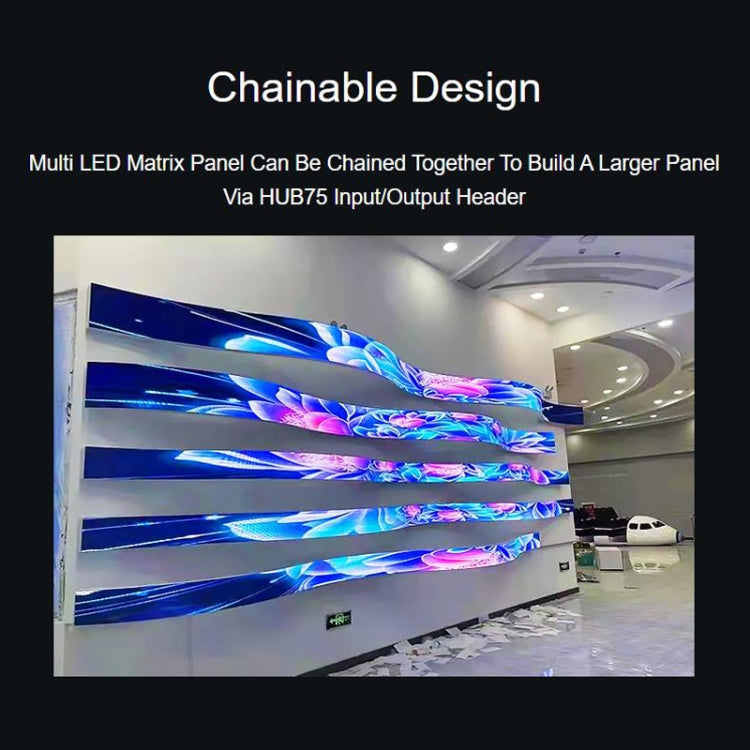

4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support

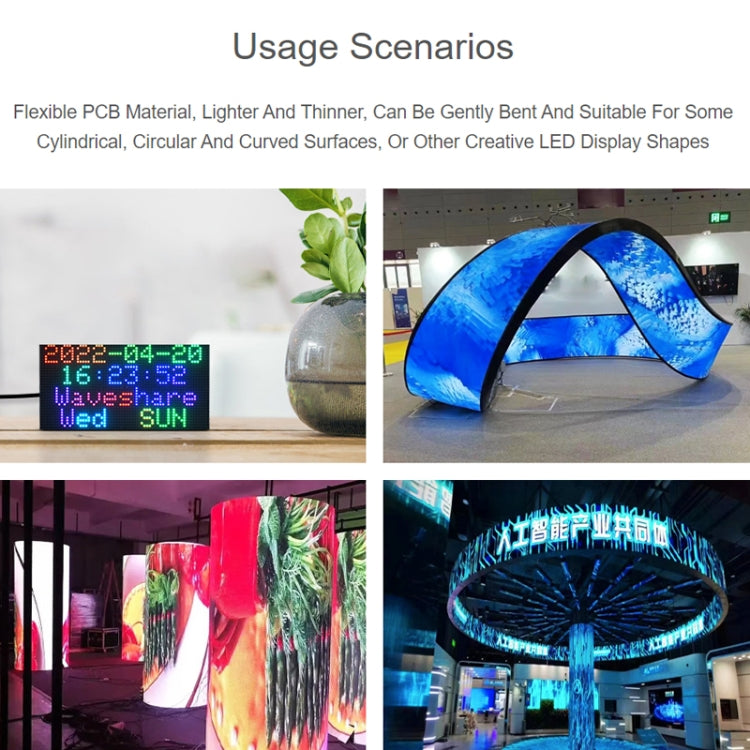

5. Flexible PCB material, can be gently bent, suitable for some application scenarios such as cylinders, spheres and other curved surfaces
6. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)
