Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board With Case

Name: Waveshare ESP32-S3 4.3inch 800×480 Touch LCD Development Board With Case
Brand: Waveshare
SKU: TBD0605306602
Price: 1519.00 ZAR
Availability: InStock

R 1,519.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Equipped with high-performance Xtensa32-bit LX7 dual-core processor, the main frequency is up to 240MHz
2. Support 2.4 GHz Wi-Fi (802.11b/g/n) and Bluetooth5 (LE), onboard antenna
3. Built-in 512 KB SRAM and 384 B ROM, stacked 16 MB Flash and 8MB PSRAM

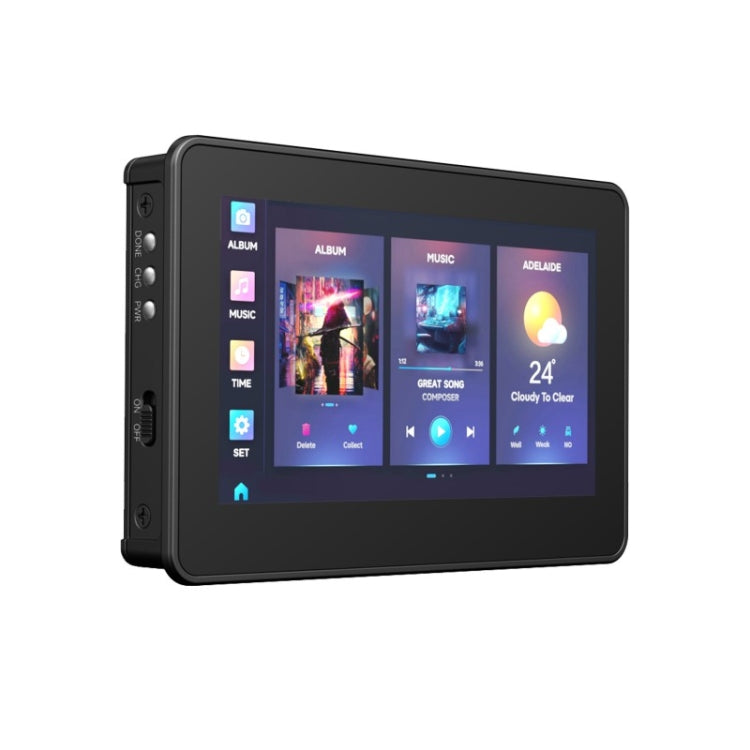

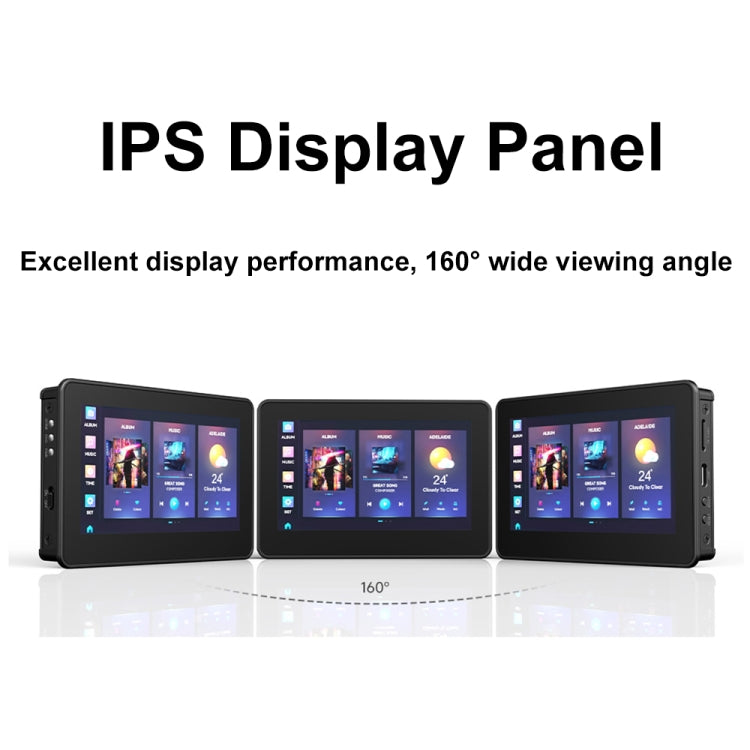

4. Onboard 4.3-inch LCD capacitive touch screen, 800×480 resolution, 65K color

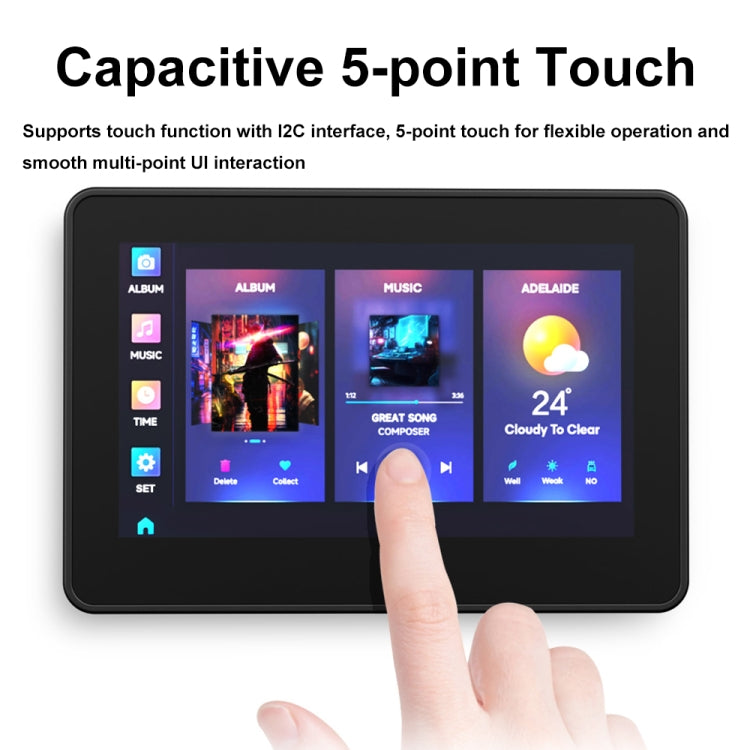

5. Support I2C interface to control capacitive touch, 5-point touch, support interruption
6. Onboard voltage regulator chip, support 7-36V wide voltage power supply
7. Onboard RTC chip and rechargeable battery to achieve power-off time without loss

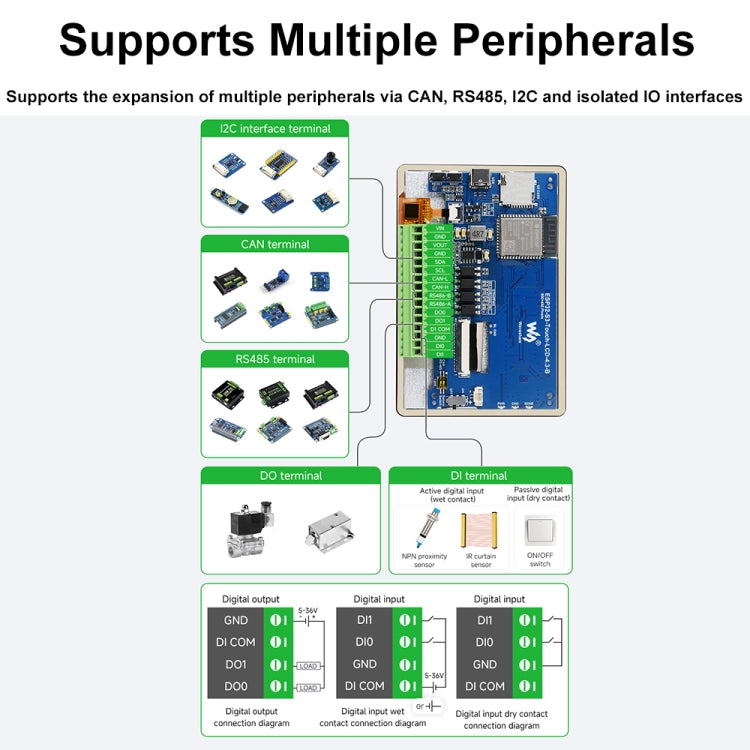

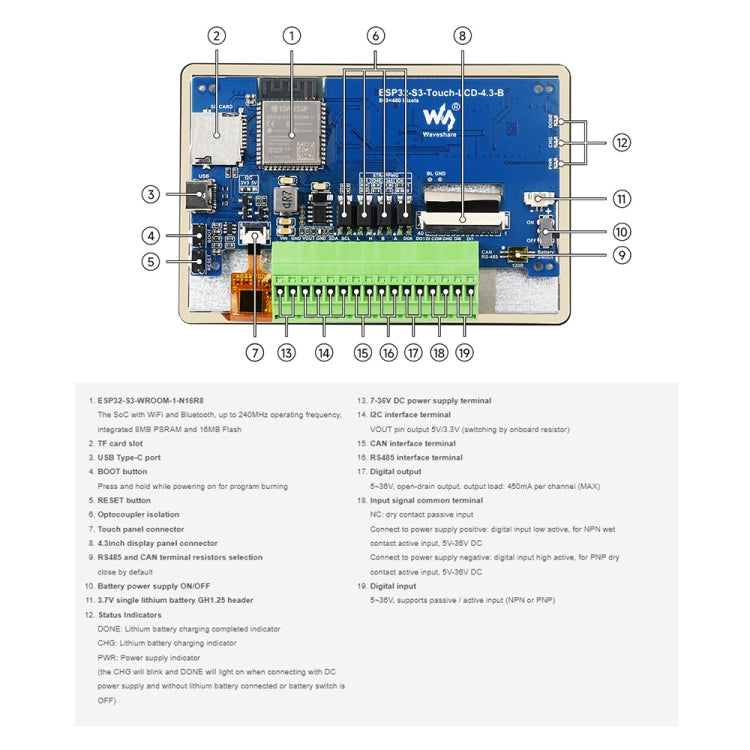

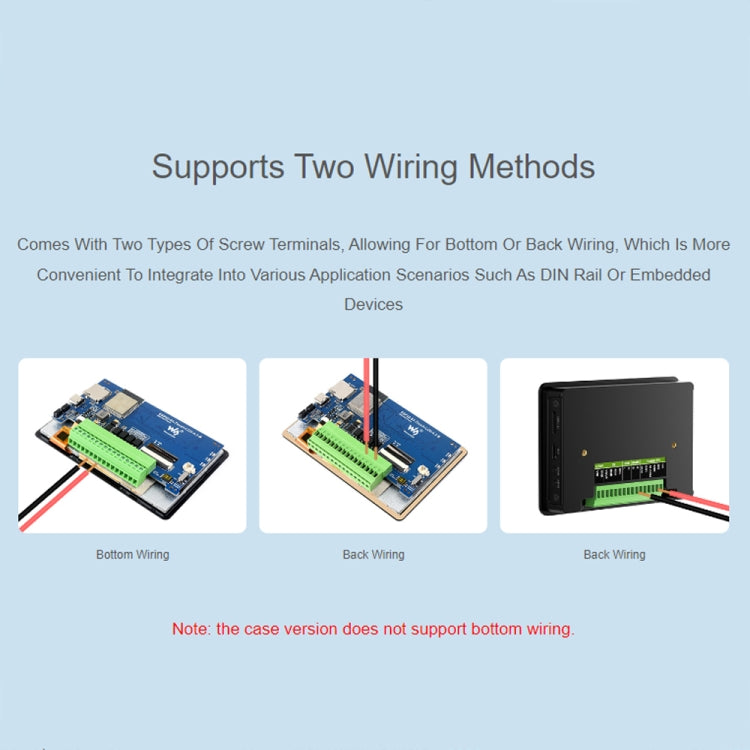

8. Onboard CAN, RS485, I2C interface, Micro SD card holder, GH1.25 2P battery interface and digital quantity isolation IO and other resources
9. Input with bidirectional optocoupler isolation, supports passive and active switch input, active supports positive voltage and negative voltage
10. Output with optocoupler isolation, stronger driving capability, sink current up to 450mA (MAX)

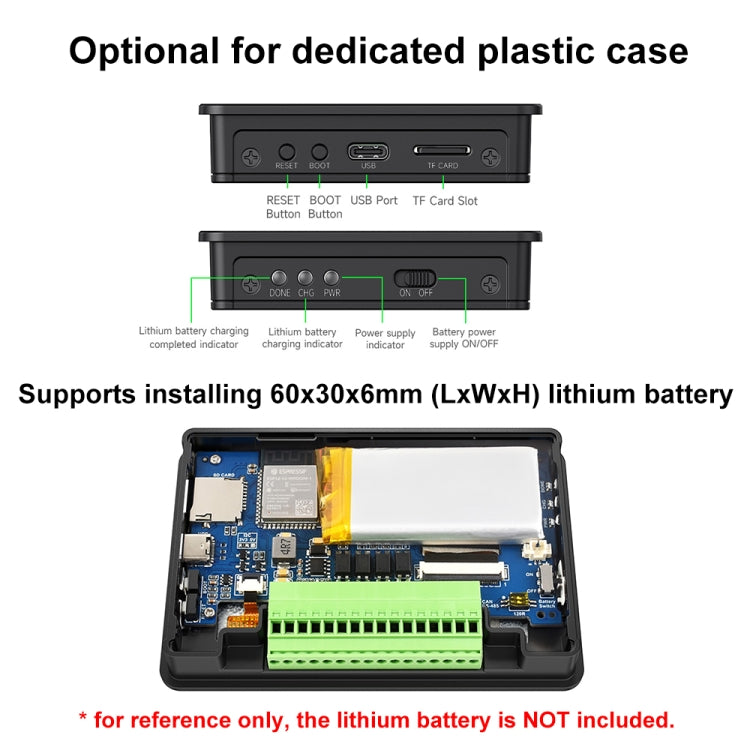

11. External LED indicator, convenient for checking power and battery charging status
12. Support flexible clock, module power separate setting and other precise control, realize multi-scenario low power mode
13. Application areas: HMI human-machine interface, LVGL GUI development

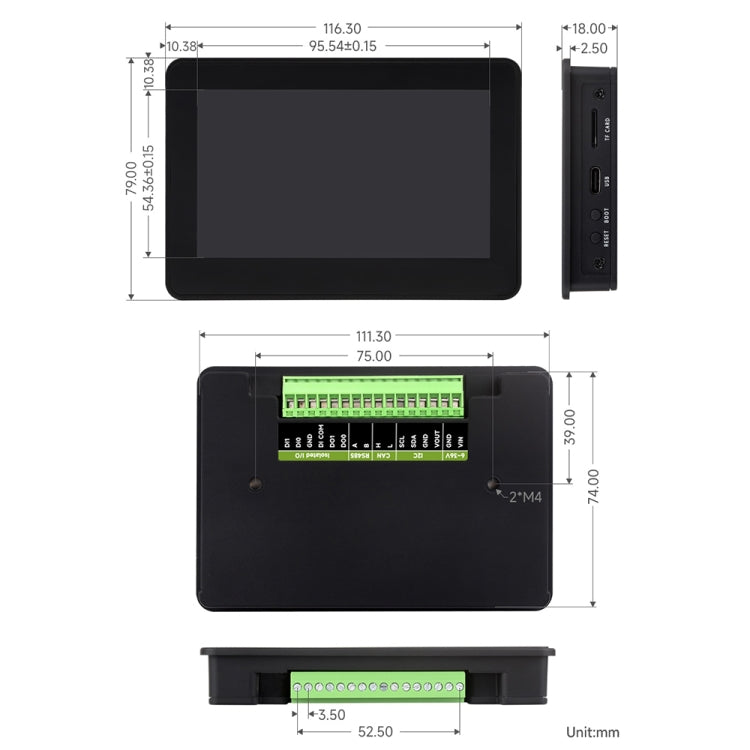

14. Product size: 112.4 x 75.1 x 17.4mm, 116.3 x 79 x 18mm
15. Weight: 115g, 149g
