Description

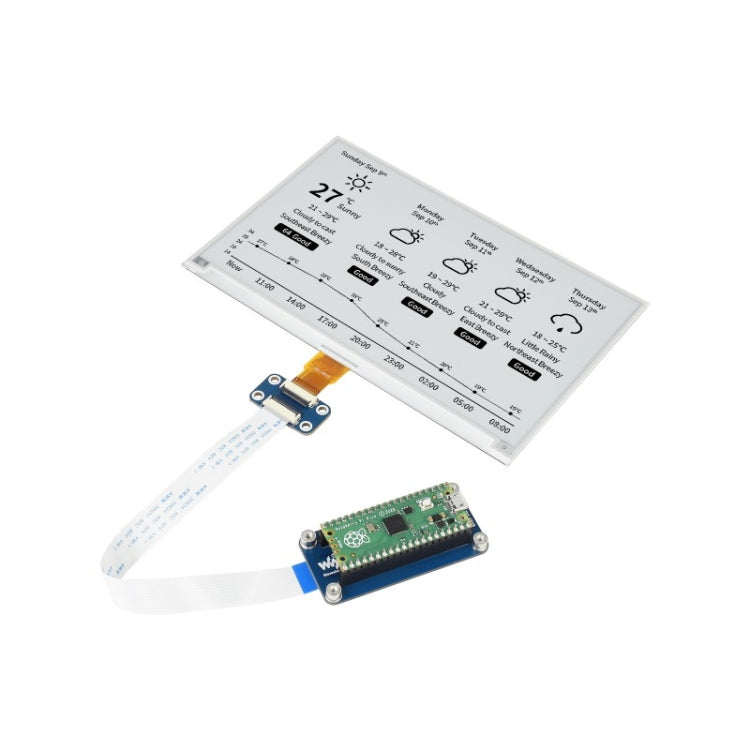

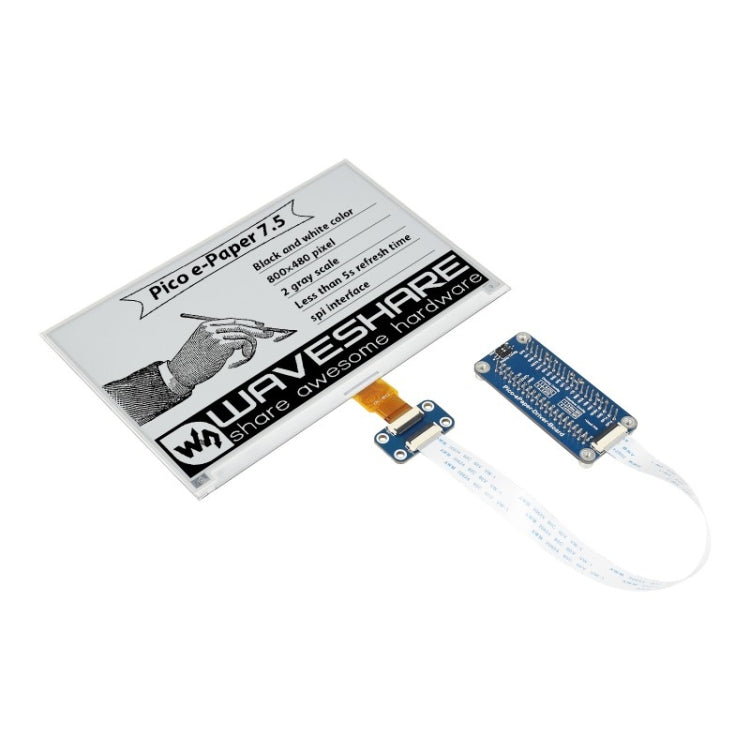

The Waveshare 7.5 inch E-Paper E-Ink Display Module is designed for use with the Raspberry Pi Pico. It is suitable for applications requiring low power consumption and long-lasting display capabilities.

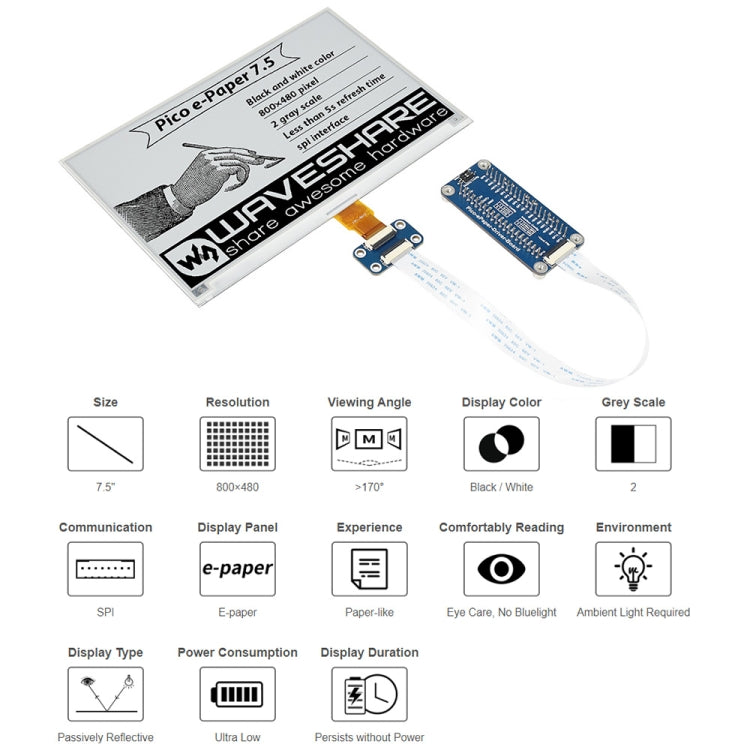

- Product Type: E-Paper Display Module

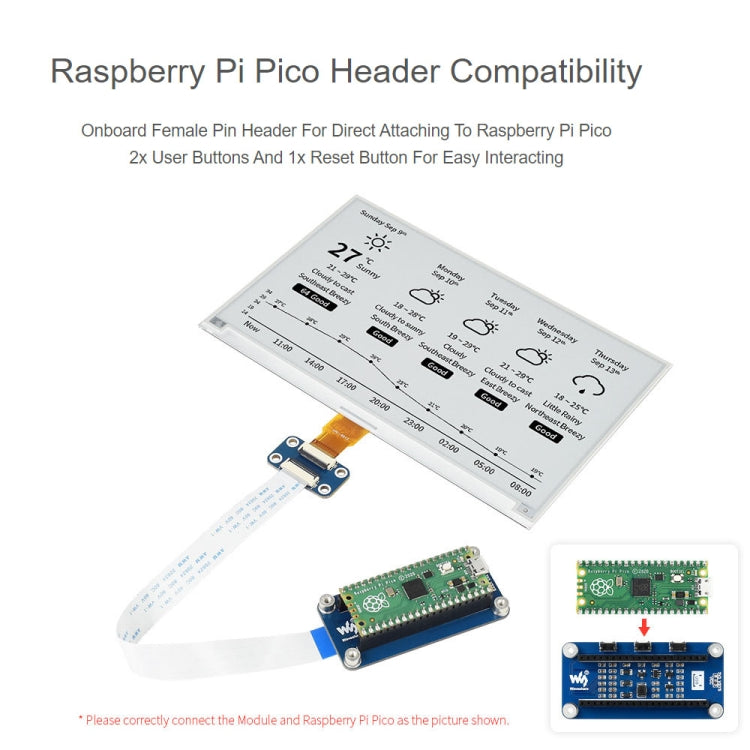

- Compatibility: Raspberry Pi Pico
- Material: E-Ink
- Color: Black, White
- Operating Voltage: 3.3V
- Display Resolution: 800x480 pixels

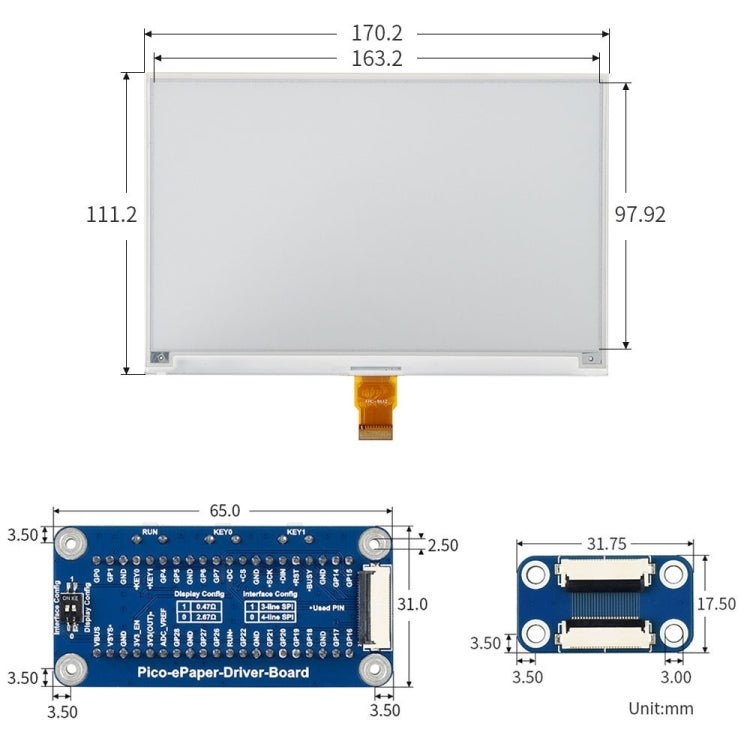

- Display Size: 163.2 x 97.92 mm
- Outline Dimensions: 170.2 x 111.2 mm
- Viewing Angle: Greater than 170 degrees
- Refresh Power: 26.4 mW (typical)
- Standby Current: Less than 0.01 µA
- Dot Pitch: 0.204 x 0.204 mm

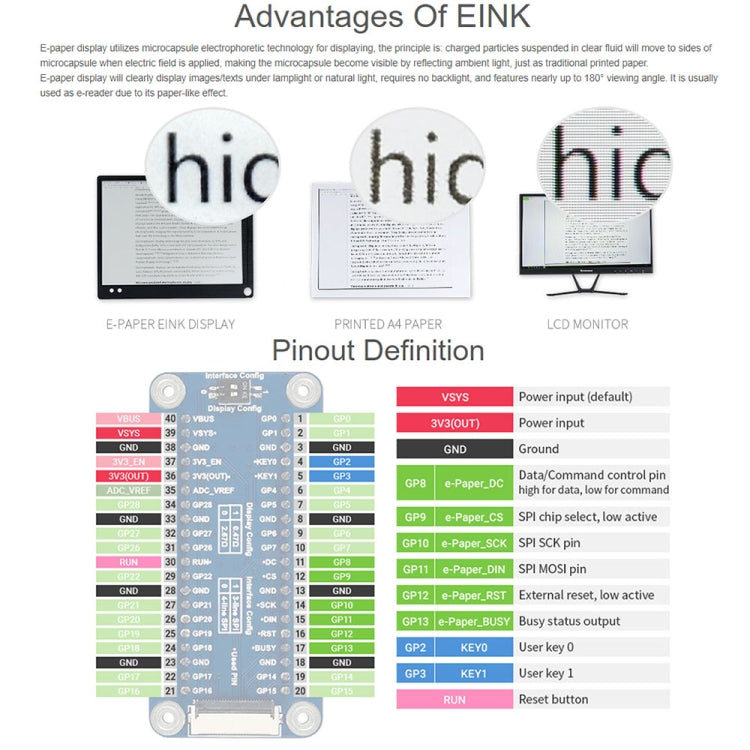

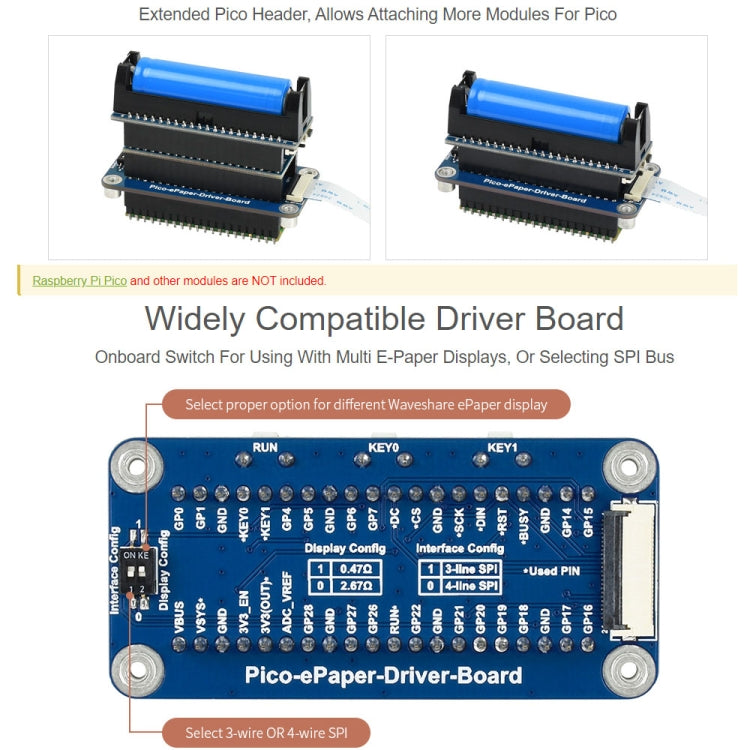

- Interface: 3-wire SPI, 4-wire SPI
- Full Refresh Time: 5 seconds
- User Buttons: 2x user buttons, 1x reset button
- Development Resources: Includes manual and examples for Raspberry Pi Pico in C/C++ and MicroPython
