Waveshare 4-DOF Metal Robot Arm Kit for Raspberry Pi, Bluetooth / WiFi Remote Control, US Plug

Name: Waveshare 4-DOF Metal Robot Arm Kit for Raspberry Pi, Bluetooth / WiFi Remote Control, US Plug
Brand: Waveshare
SKU: ZY17420052
Price: 1499.00 ZAR
Availability: InStock

R 1,499.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Overview

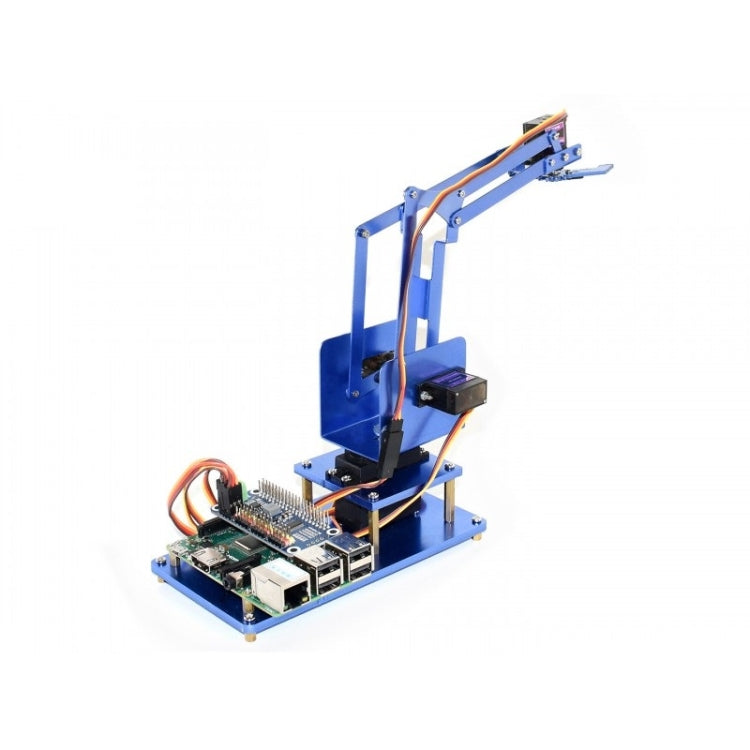

1. Equip your Raspberry Pi with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.
2. This starter robotic arm kit includes: servo driver HAT, metal mechanical arm structure, and 4x metal gear servos. When used with the Raspberry Pi, it is easy to control the arm by smart phone through Bluetooth or WiFi connection.

The Servo Driver
Adopts Servo Driver HAT:
1. Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Jetson Nano
2. I2C controlled, using only 2 pins
3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
4. Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
5. Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
6. Reserved I2C control pins, allows to work with other control boards
7. Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

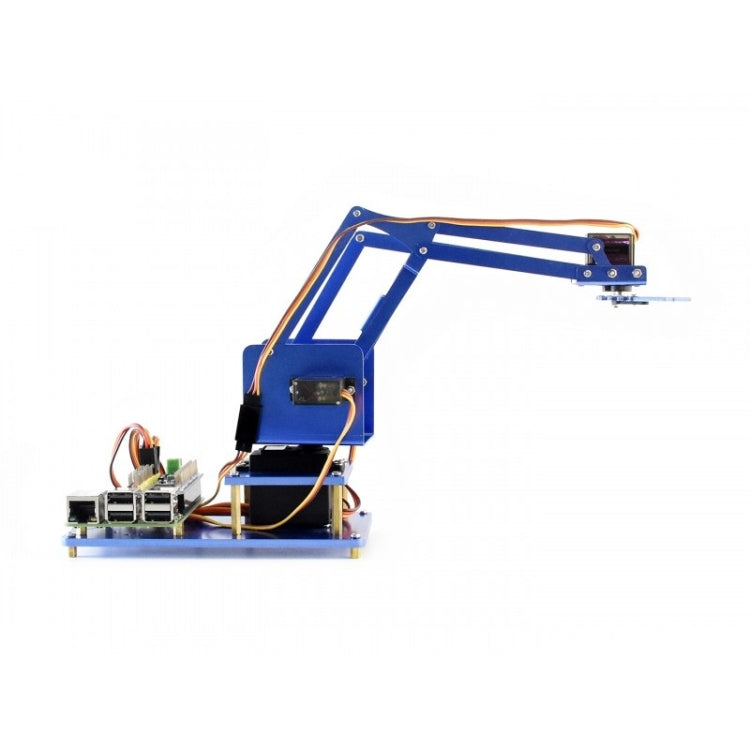

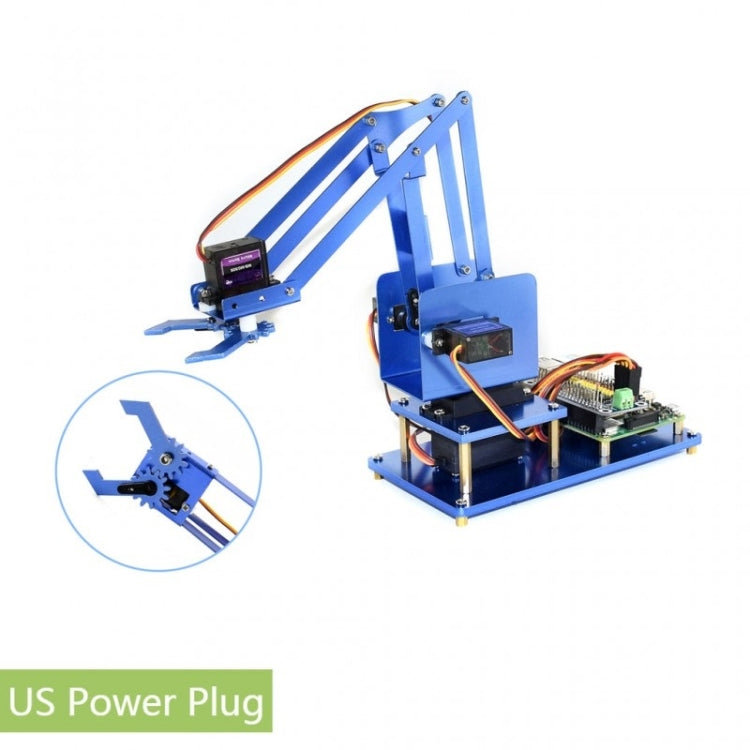

The Robot Arm Structure
1. 4-DOF, large solid base, metal mechanical grasper
2. Full aluminium alloy body, sandblasting oxidation surface, strong & durable
3. Clever mechanical structure and mounting design, agile to control, easy to build
4. Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth moving

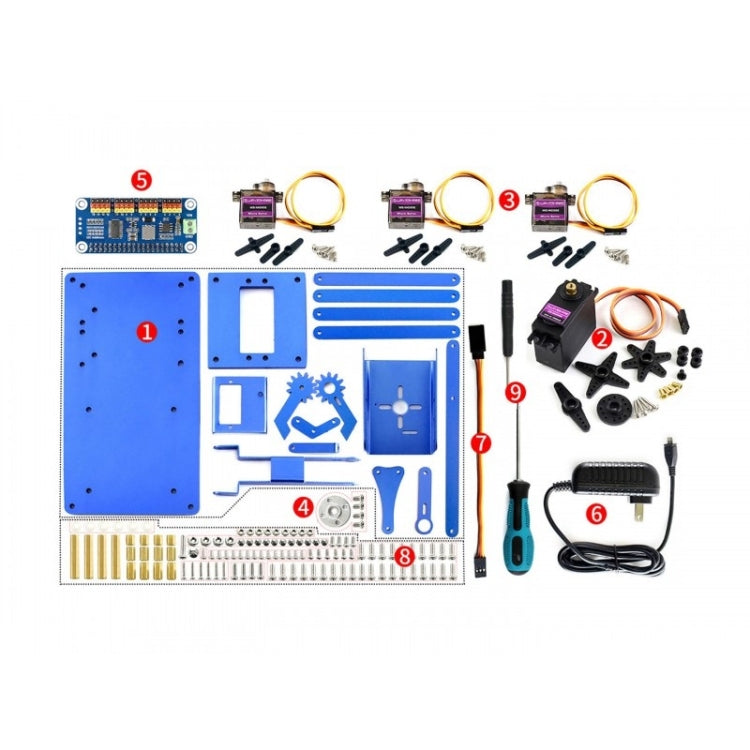

Package Contents
Note: micro:bit is NOT included.
1. Metal arm parts x1
2. MG996R Servo x1
3. MG90S Servo x3
4. MG996R servo wheel x1
5. Servo Driver for micro:bit x1
6. Power adapter US plug 5V 3A Micro x1
7. Servo extension wire 150mm x1
8. Screws pack x1
9. Screwdrivers 2PCS x1
