Description

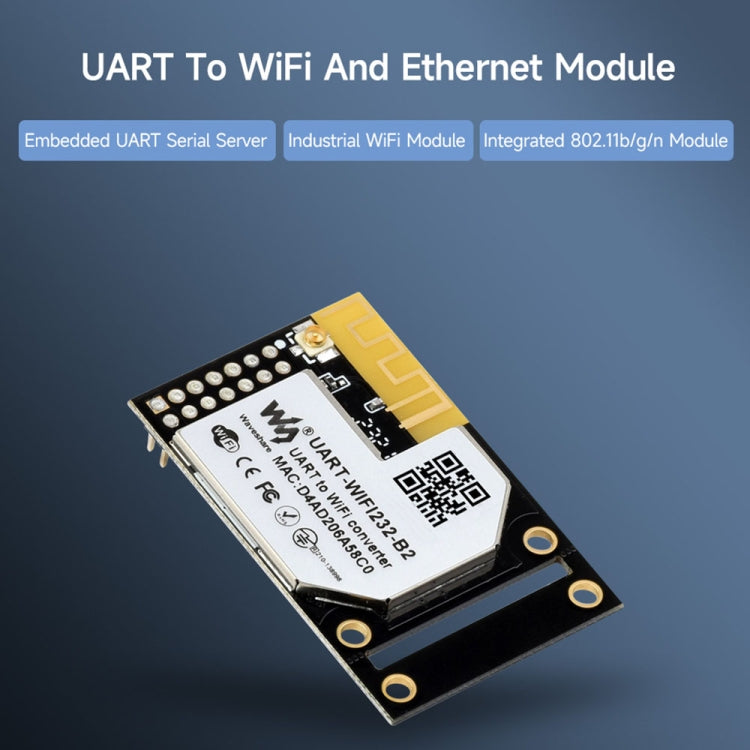

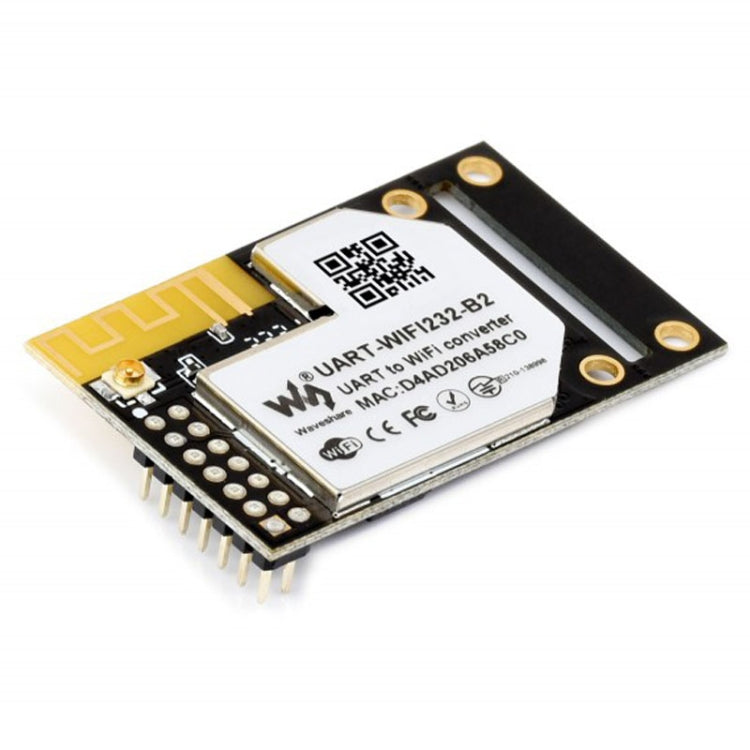

The Waveshare 25116 UART to WiFi and Ethernet Module is an integrated communication module designed for data transmission. It is suitable for applications such as IoT gateways, smart instrument monitoring, and security IoT.
- Product Type: Modules Expansions Accessories

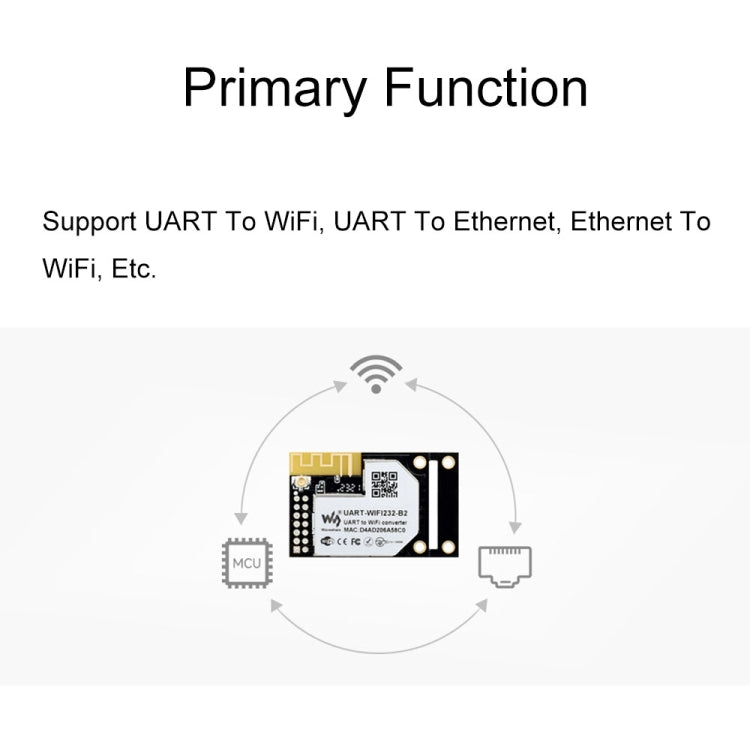

- Compatibility: UART to WiFi and Ethernet
- Material: Not specified
- Key Feature: Integrated 802.11b/g/n module
- Power Supply: DC 3.3V

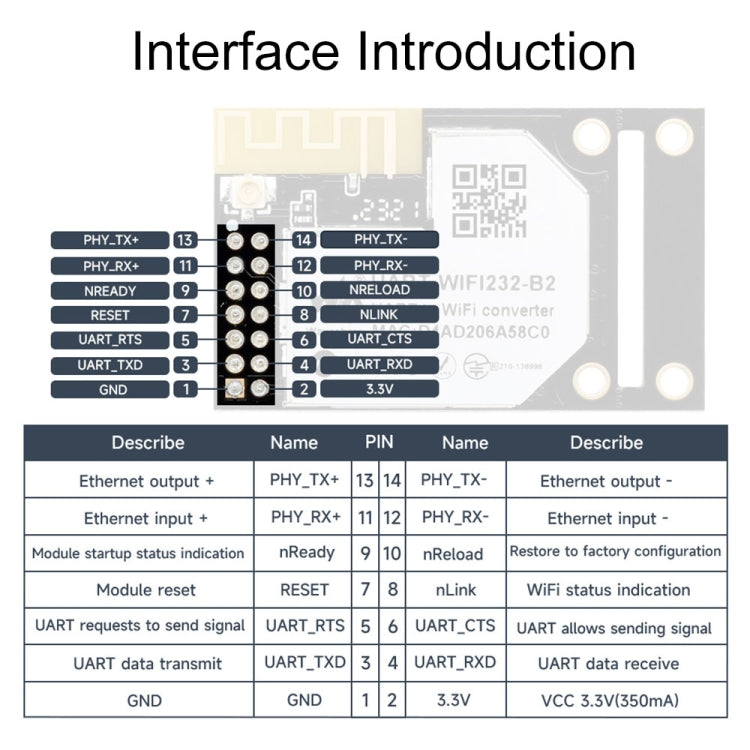

- Power Supply Method: Pin header

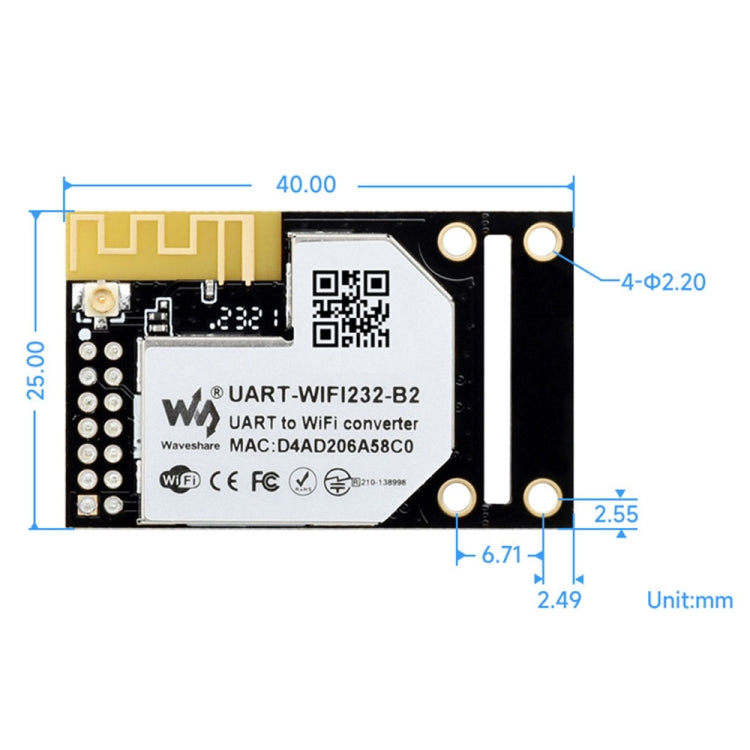

- Dimensions: 25 x 40 x 8 mm
- Ethernet: 10/100M auto-negotiation (connected through pin header)
- WIFI: Complies with 802.11b/g/n
- Serial Port: UART
- Frequency Band: 2.412-2.484 GHz
- Wireless Network Modes: Station / AP / AP+Station
- Security Mechanism: WPA-PSK / WPA2-PSK
- Encryption Type: TKIP/AES
- Transmission Power: 802.11b: +19dBm (max @11Mbps), 802.11g: +18dBm (max @54Mbps), 802.11n: +17dBm (maximum @HT20, MCS7); +17dBm (maximum @HT40, MCS7)
- Receiving Sensitivity: 802.11b: -89dBm (@11Mbps), 802.11g: -81dBm (@54Mbps), 802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
- Baud Rate: 300-460800 bps
- Check Digit: None, odd, even, mark, space
- Data Bits: 5-9 bits
- Flow Control: RTS/CTS
- Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP/MQTT

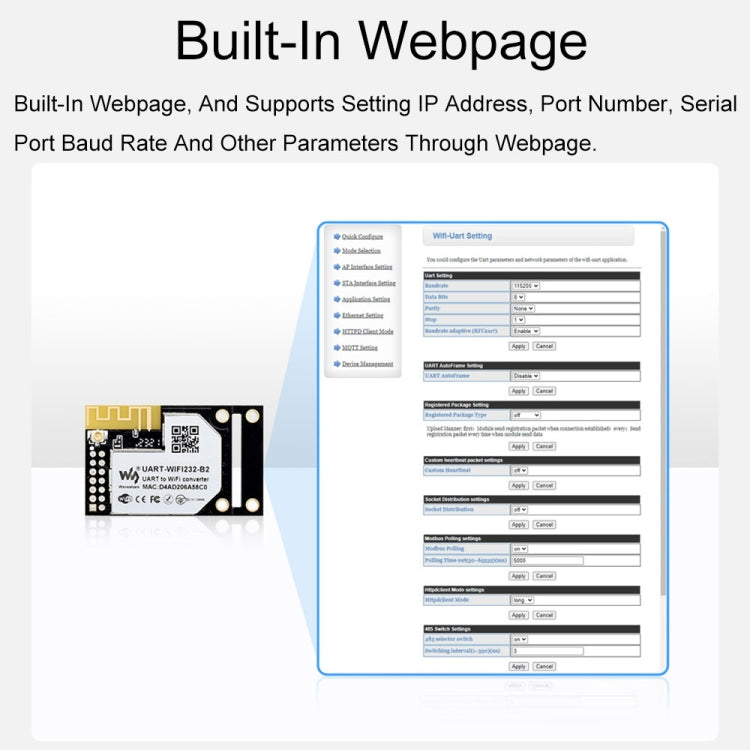

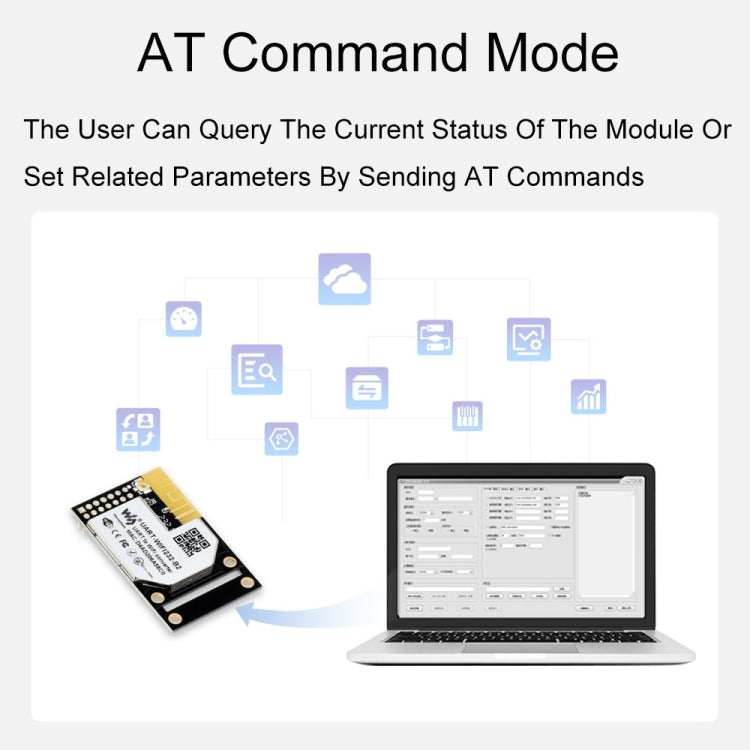

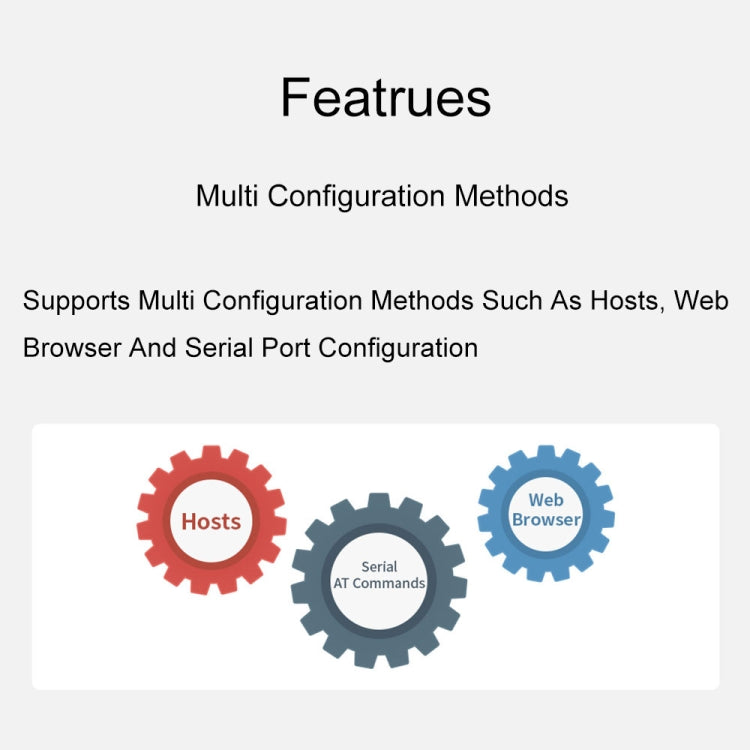

- Configuration: Host, browser, serial AT command
- Communication Method: TCP/IP direct communication, VCOM

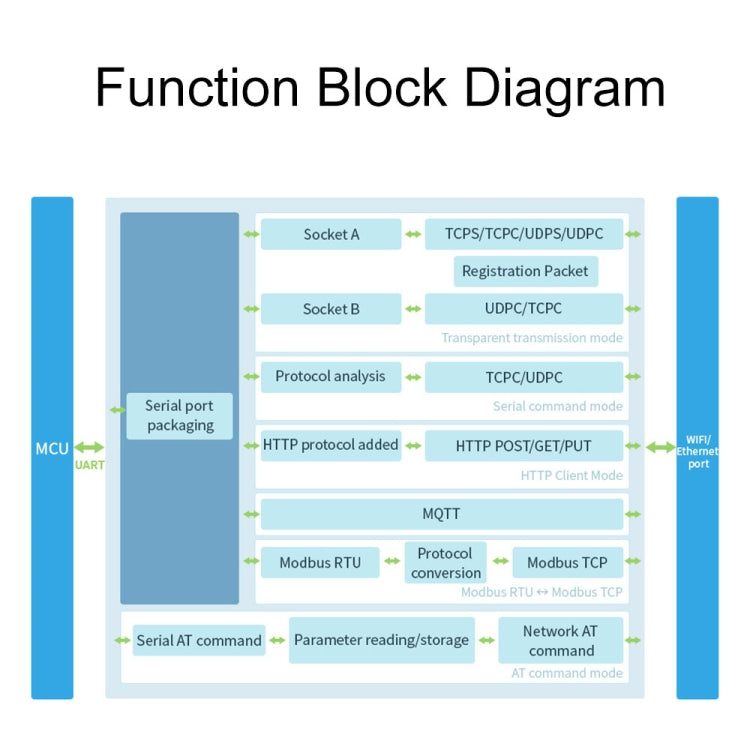

- Working Mode: Transparent transmission, serial port command, HTTPD Client, Modbus TCP to Modbus RTU
- Operating Temperature: -40 to 85 degrees Celsius
- Humidity Range: 5% to 95%
