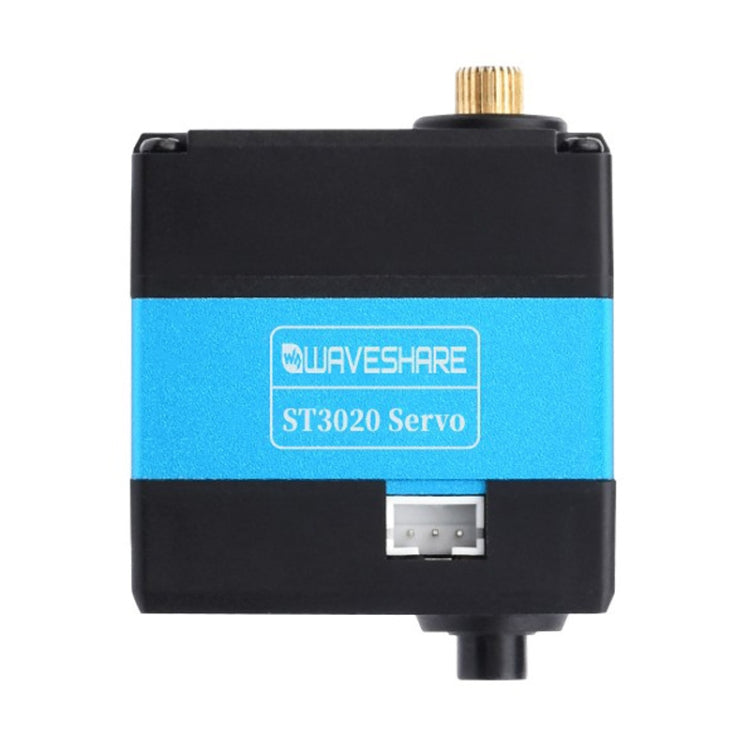

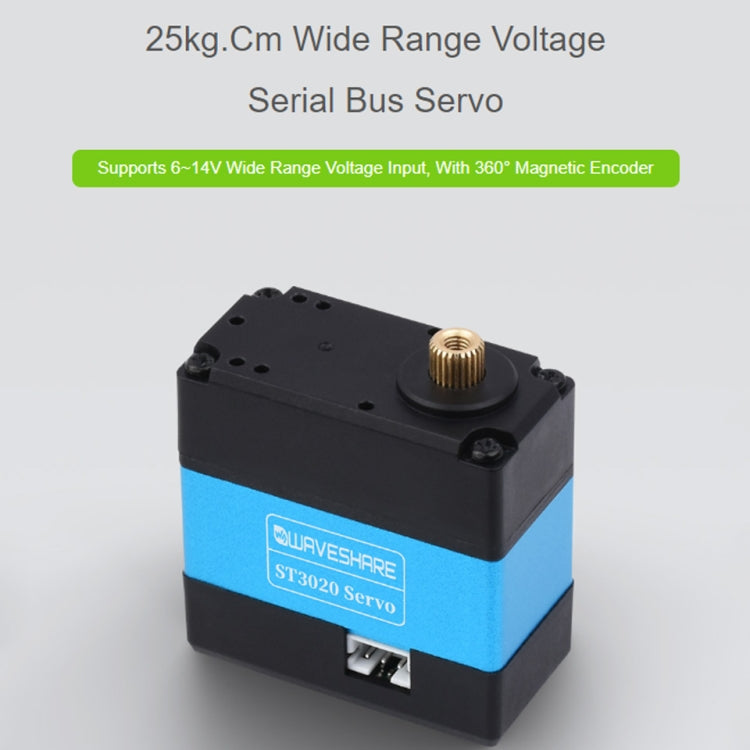

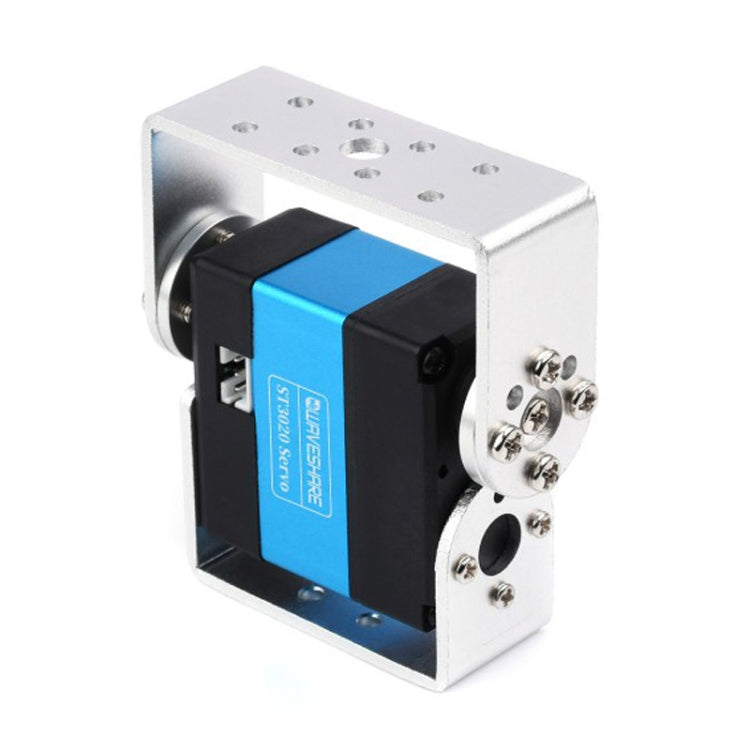

Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo
Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo
Sale
Sold out
Pre-order
Regular price
R 749.00
Regular price
Sale price
R 749.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
1. Torque: 25kg.cm@12V

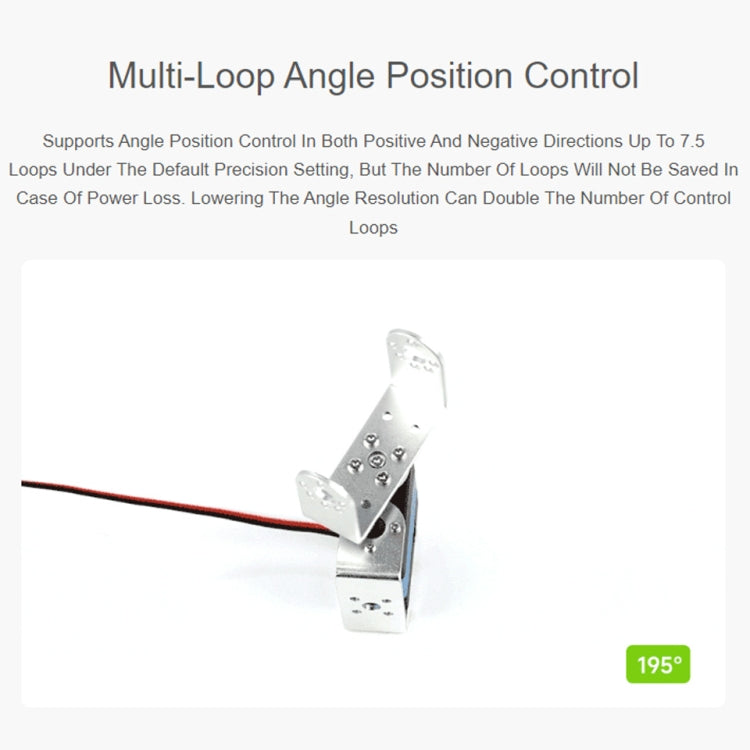

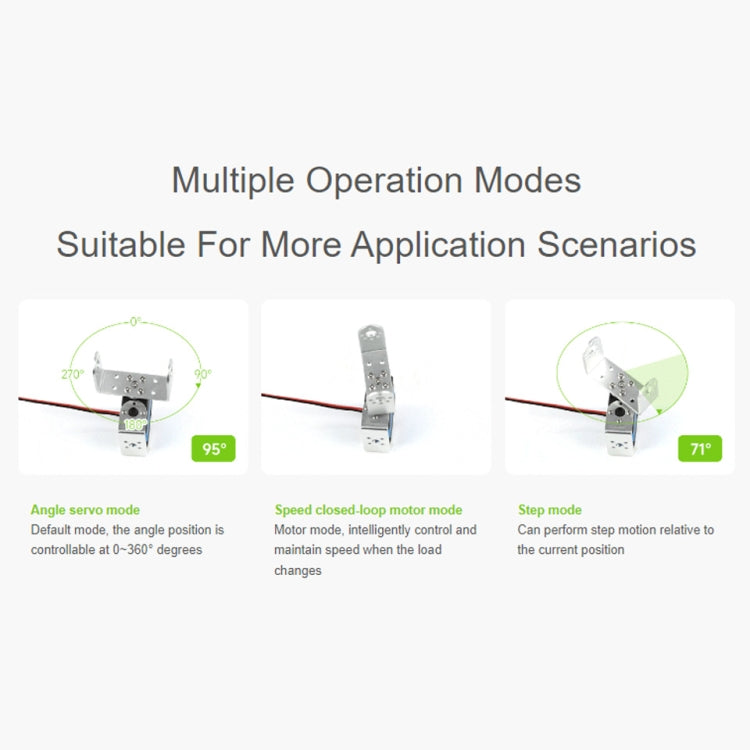

2. Rotation angle: 360 degrees (0-4095)
3. Position sensor resolution: 0.088 degrees (360 degrees/4096)
4. Institutional restriction angle: no restriction

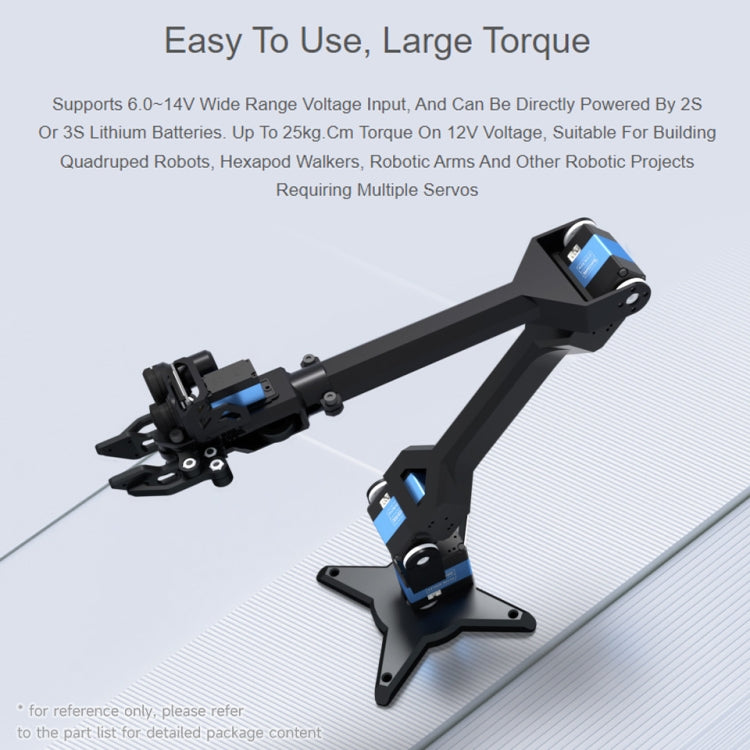

5. Working voltage: 6-14 V (typ. 12V)

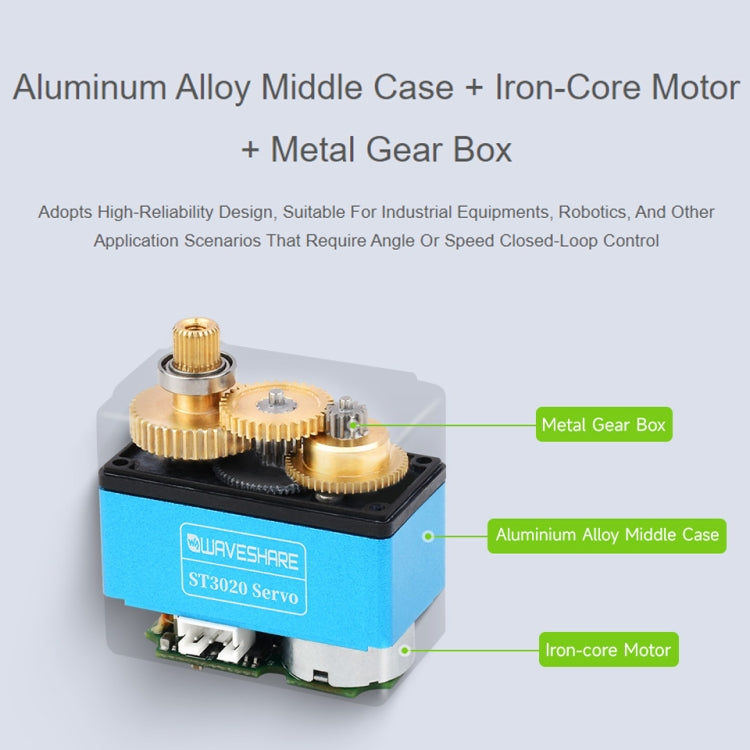

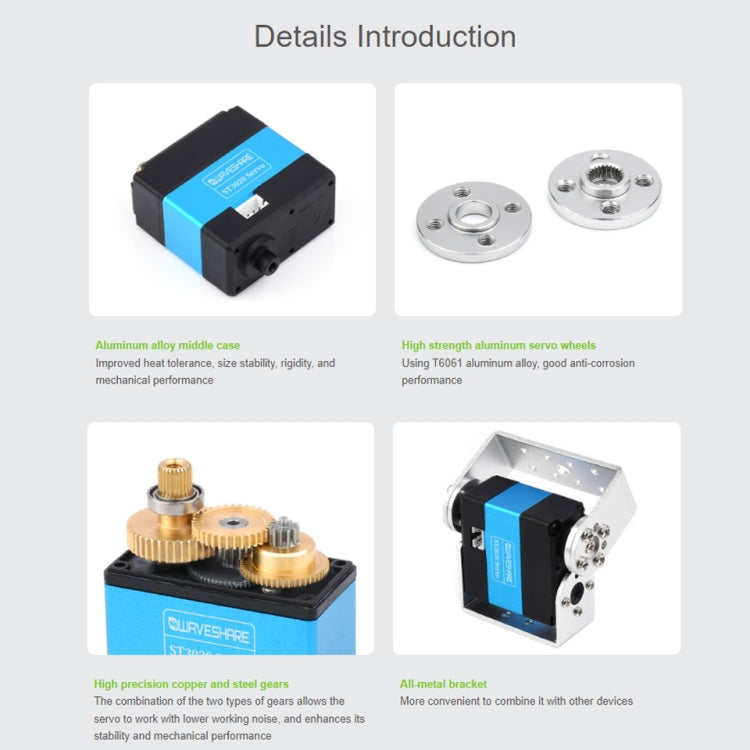

6. Gear: high-precision metal gear
7. No-load speed: 0.167 seconds/60 degrees (60RPM)@12V

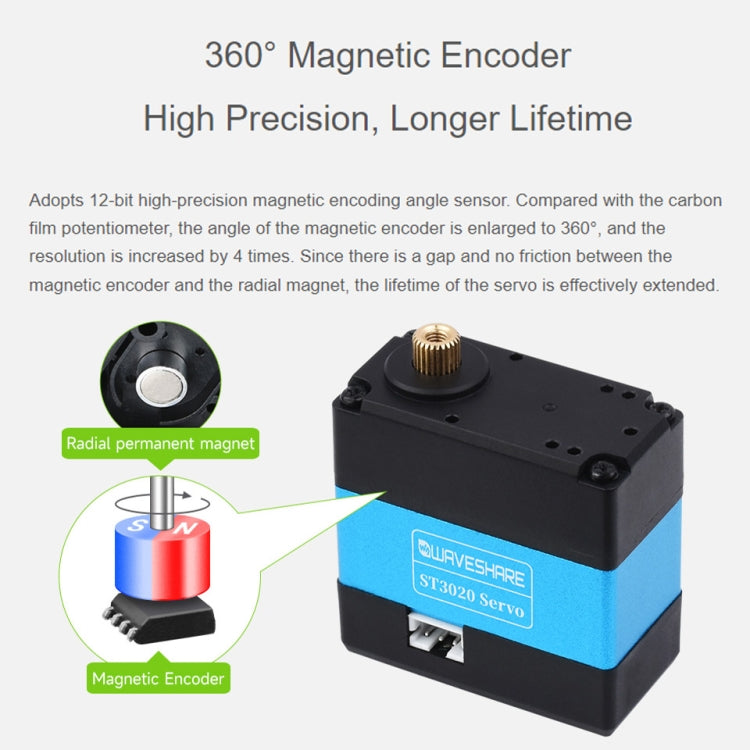

8. Encoder type: 12-bit magnetic encoder

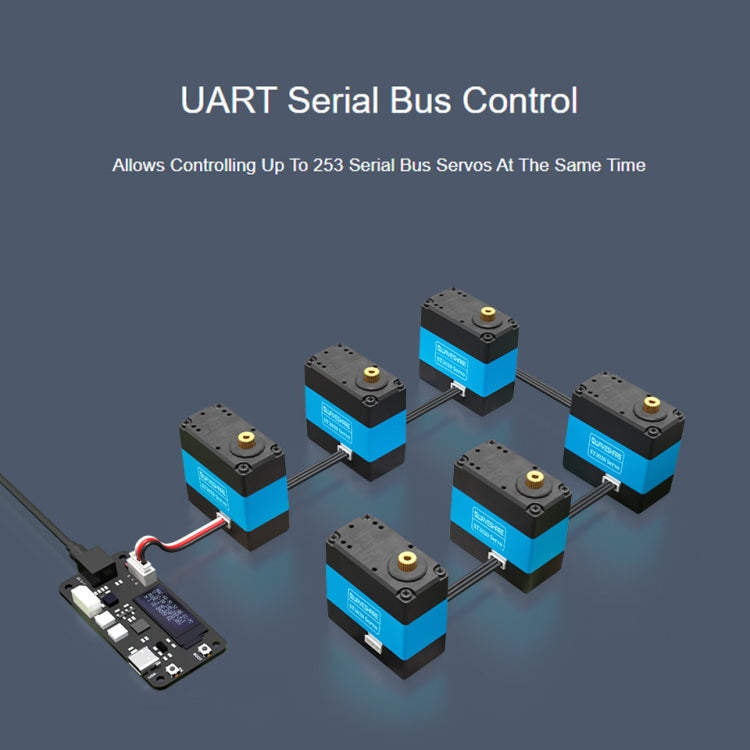

9. ID range: 1-253
10. Baud rate: 38400bps-1Mbps (default 1Mbps)

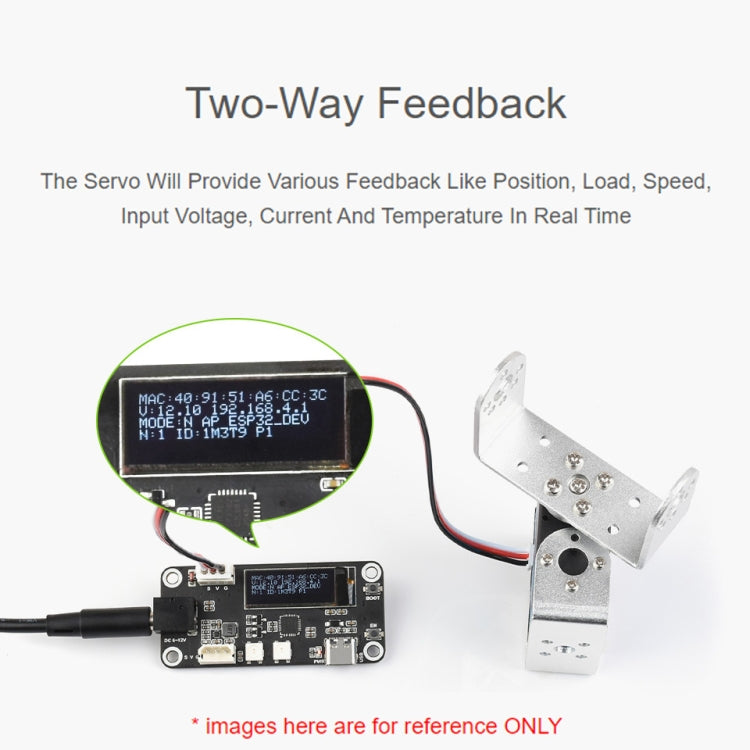

11. Feedback: position, load, speed, input voltage, current, temperature
12. No-load current: 200mA@12V
13. Stalled rotor current: 2.7A@12V
14. KT: 9.26kg.cm/A
15. Weight: 97 grams
