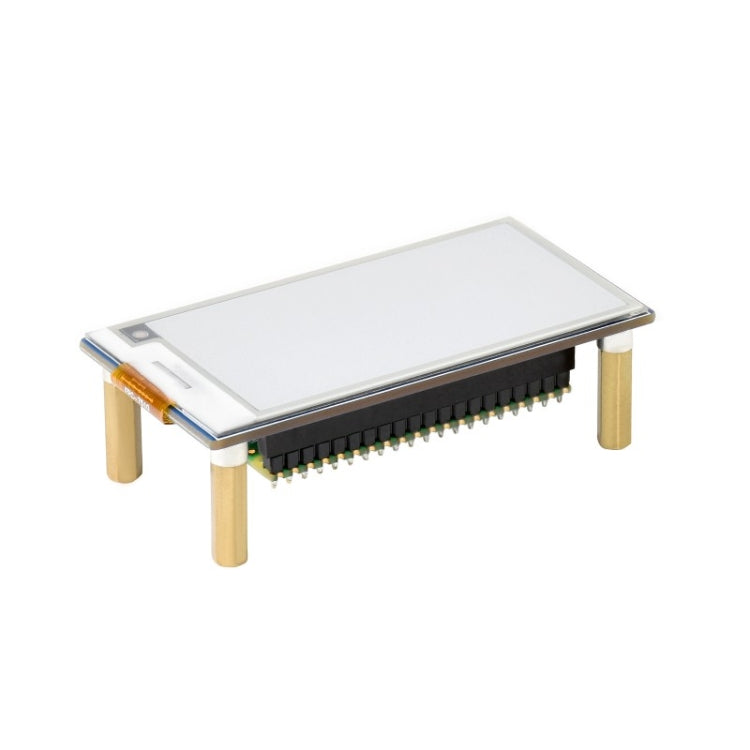

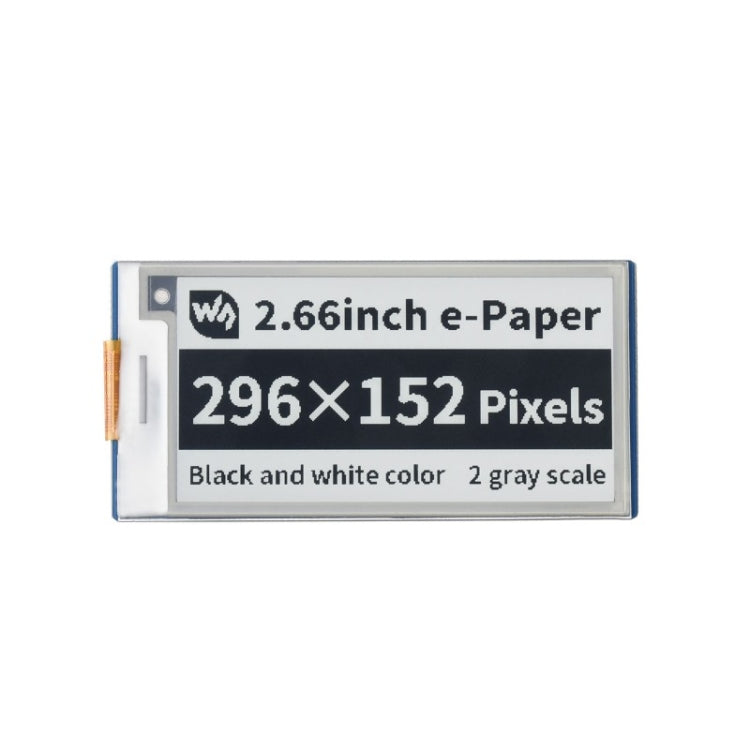

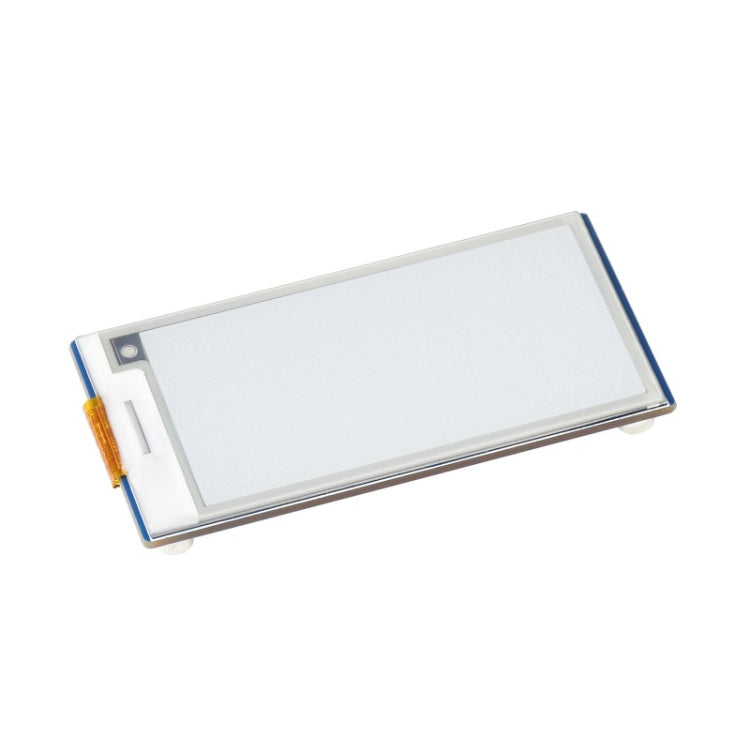

Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface
No reviews
Sale
Sold out
Pre-order
Regular price
R 489.00
Regular price
Sale price
R 489.00
Unit price
/
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing

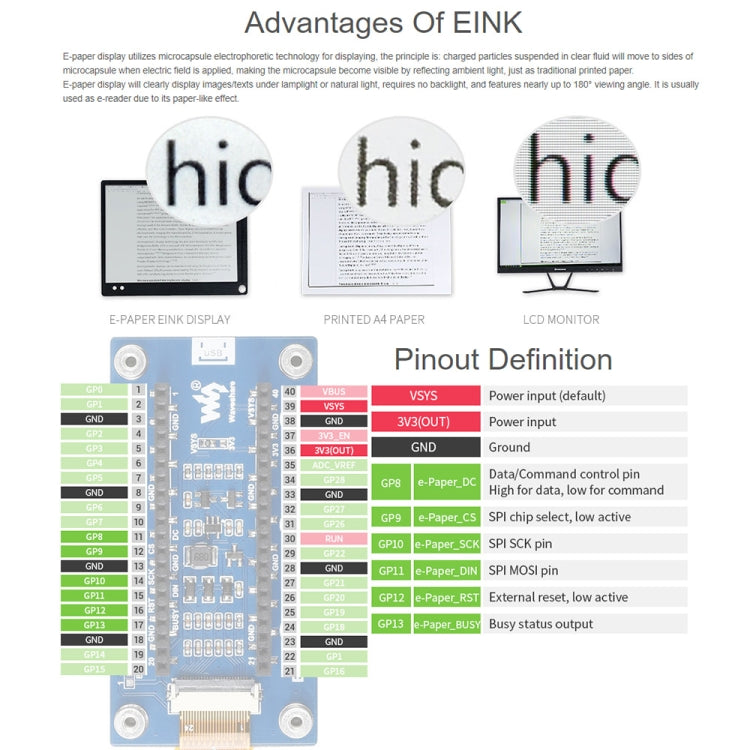

3. SPI interface, requires minimal IO pins

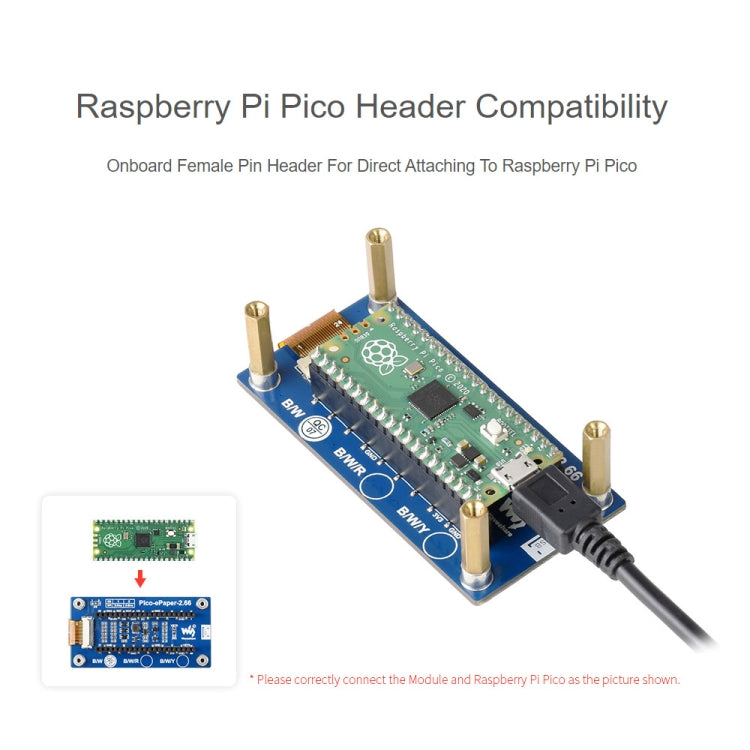

4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

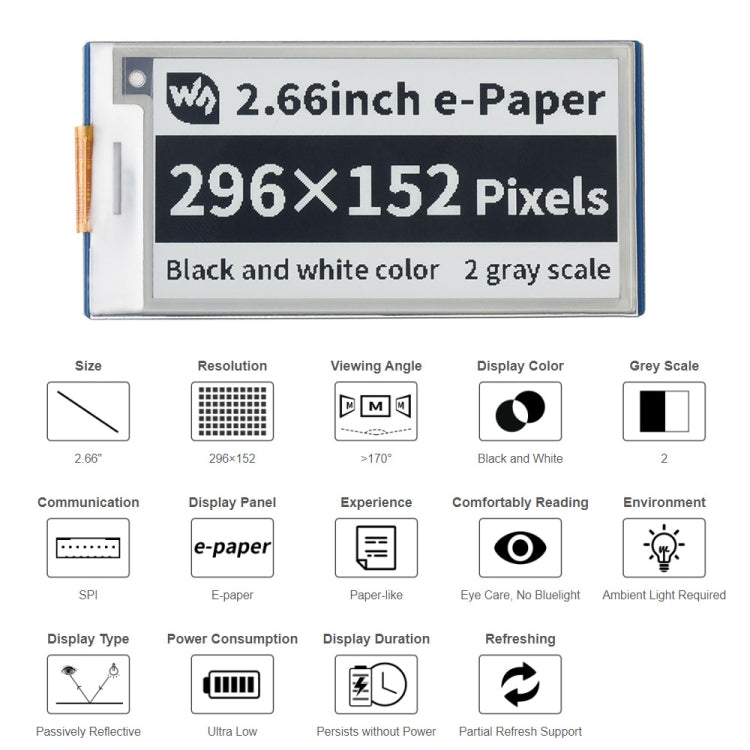

Specification
1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 296 x 152 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 74.00 x 37.50mm
10. Display size: 60.088 x 30.704mm
11. Refresh power: 42.4mW(typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.203 x 0.202mm
Package List
1. Pico-ePaper-2.66 x1
2. Standoff pack x1
