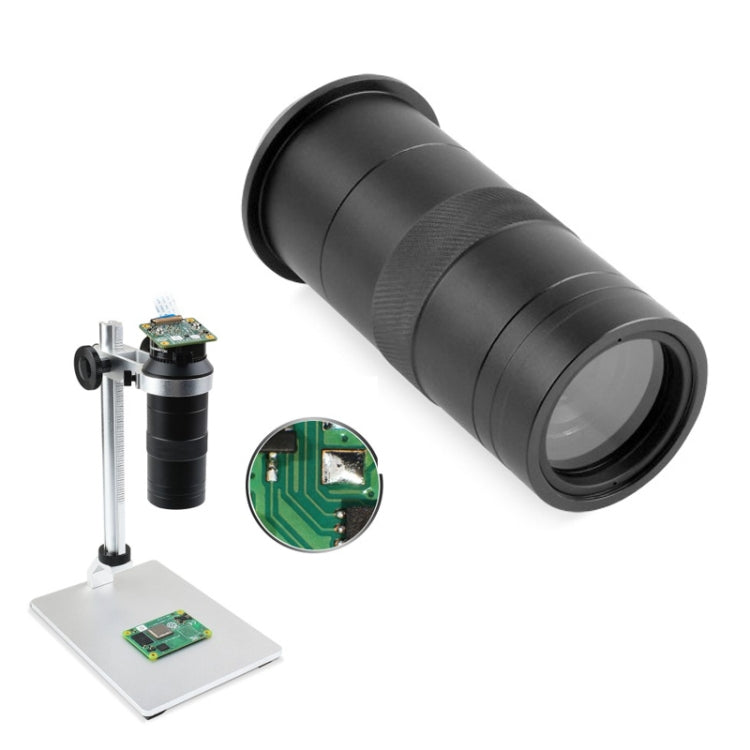

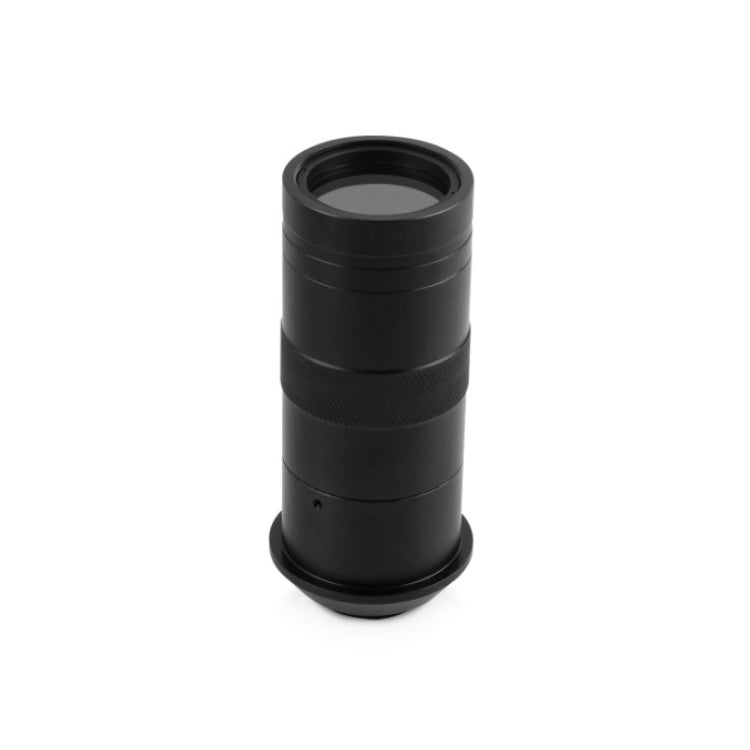

Waveshare 100X Industrial Microscope Lens, C/CS-Mount, for Raspberry Pi HQ Camera(24229)
Waveshare 100X Industrial Microscope Lens, C/CS-Mount, for Raspberry Pi HQ Camera(24229)
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description

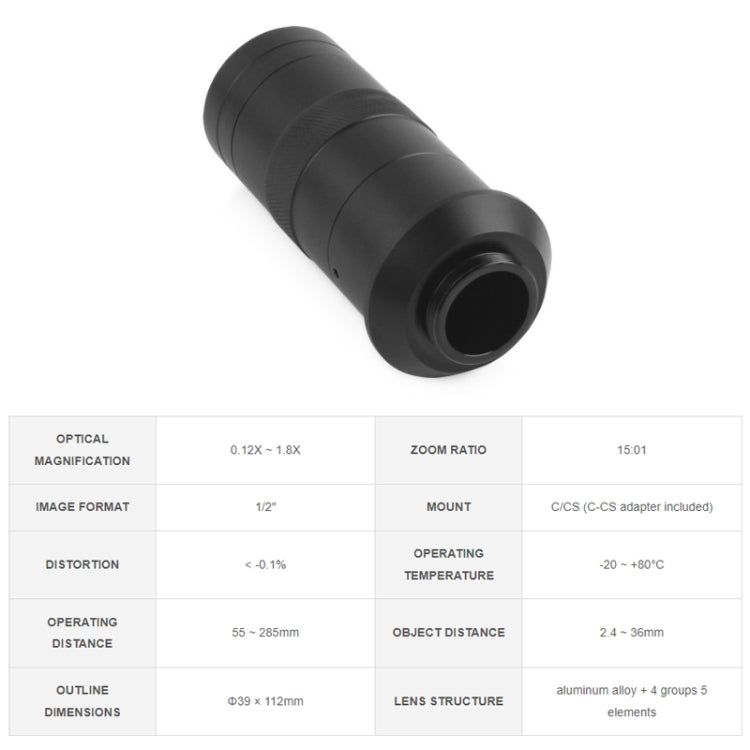

1. Optical magnification: 0.12X ~ 1.8X
2. Zoom ratio: 15:01

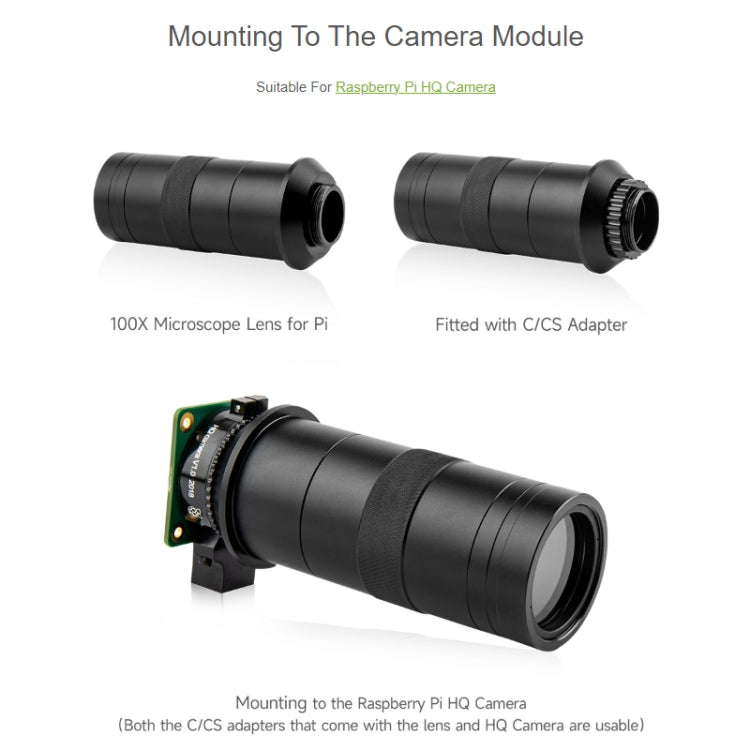

3. Image format: 1/2" MOUNT C/CS (C-CS adapter included)
4. Operating distance: 55 ~ 285 mm
5. Object distance: 2.4 ~ 36 mm

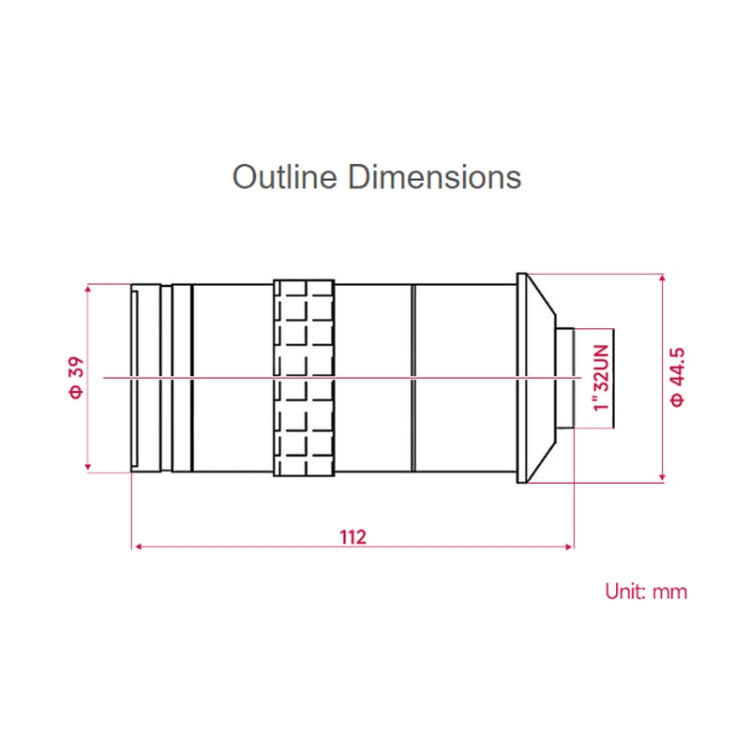

6. Dimensions: 39×112mm
7. Lens structure: aluminum alloy + 5 elements in 4 groups

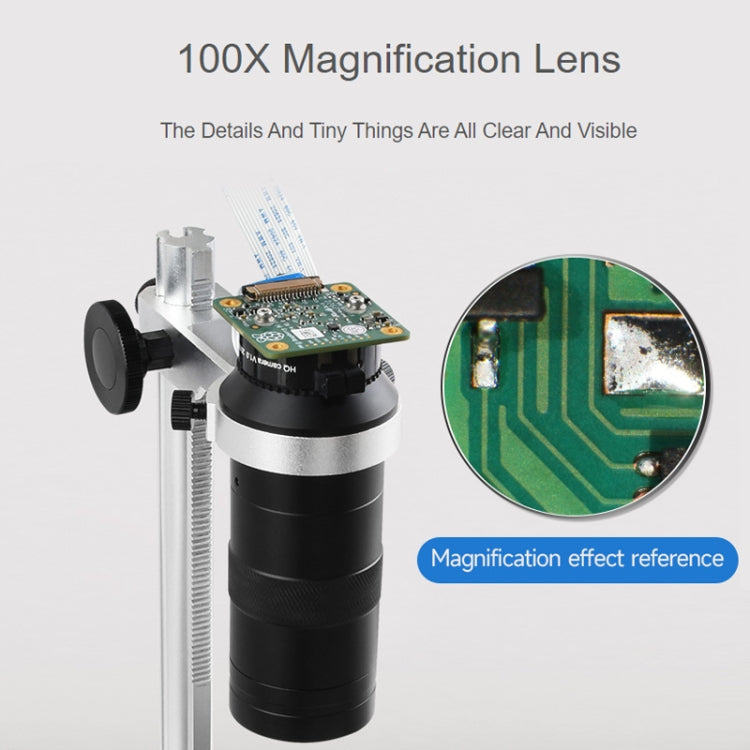

8. 100X magnification lens, details and tiny things are clearly visible

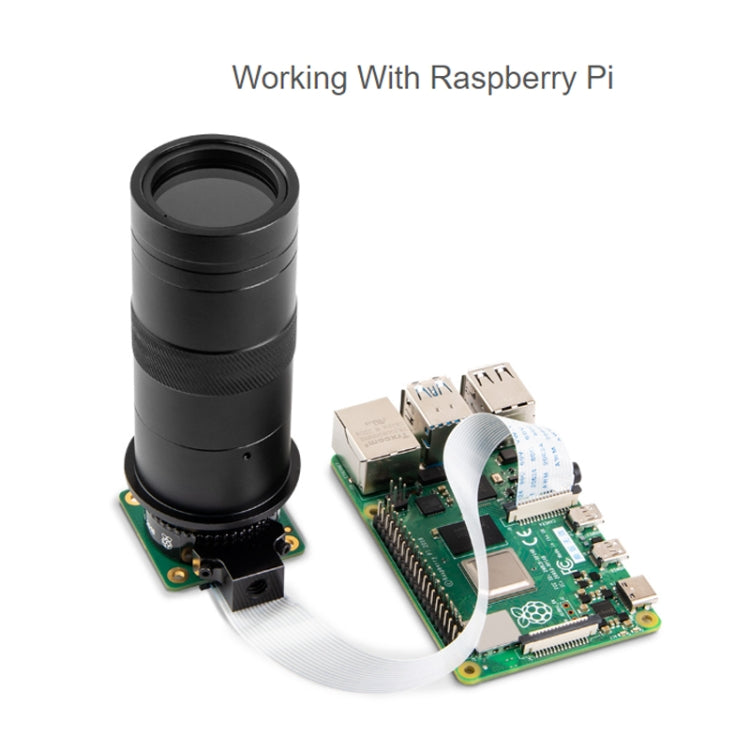

9. The Raspberry Pi development board and Raspberry Pi HQ camera in the photo are not included
For use with Raspberry Pi Zero or Zero 2W, additional purchase of a Raspberry Pi Zero v1.3 Camera Cable is required
10. The picture is for reference only. Due to the structural limitation of the microscope lens, additional lighting is required during use
