TTGO

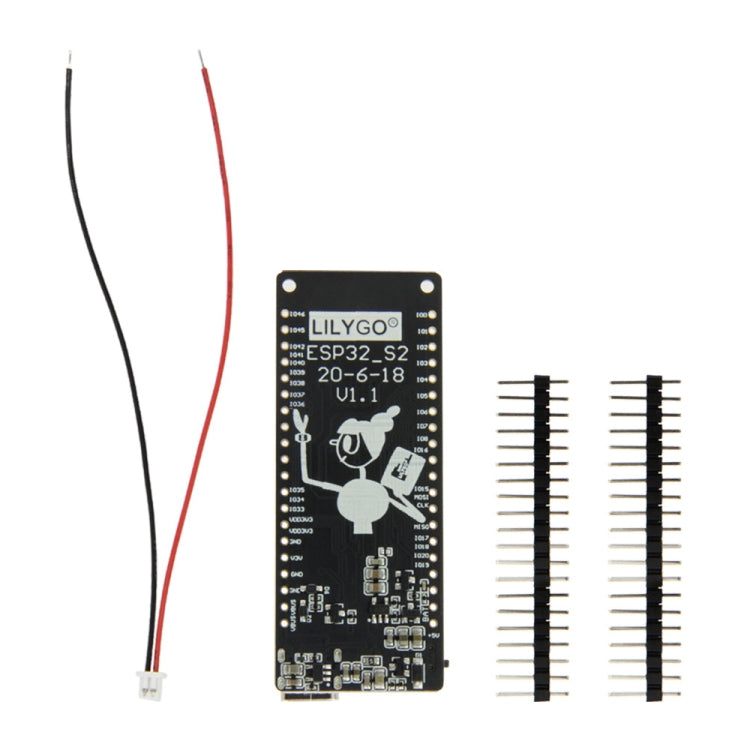

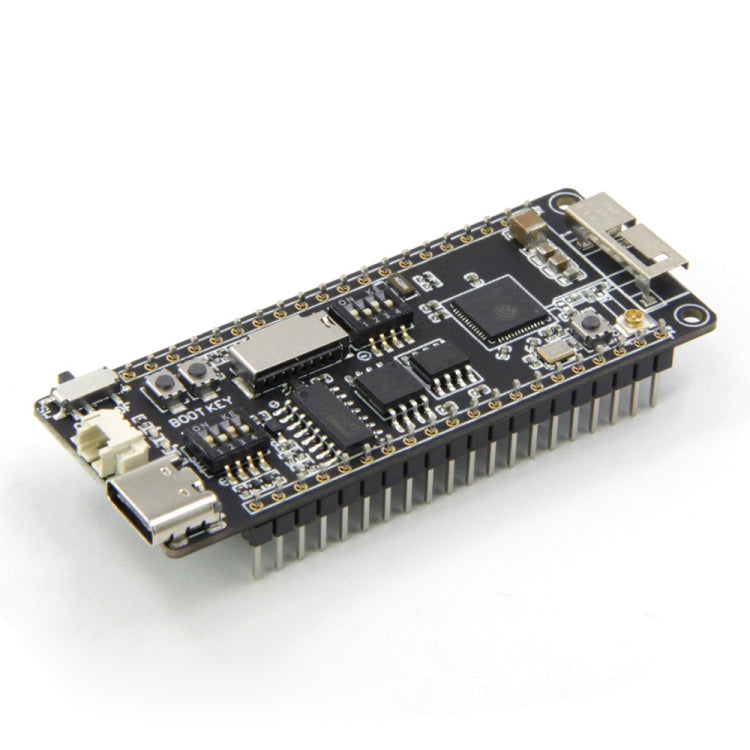

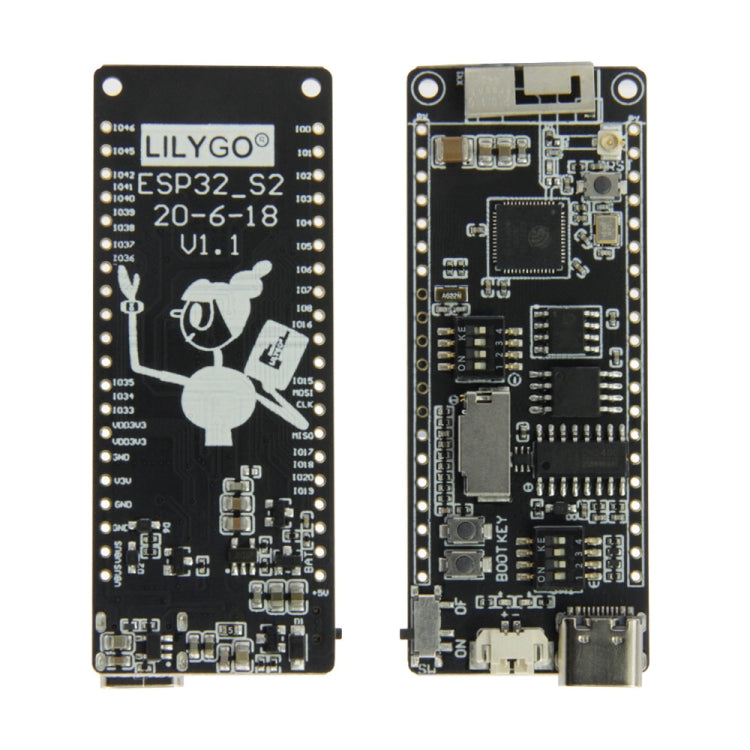

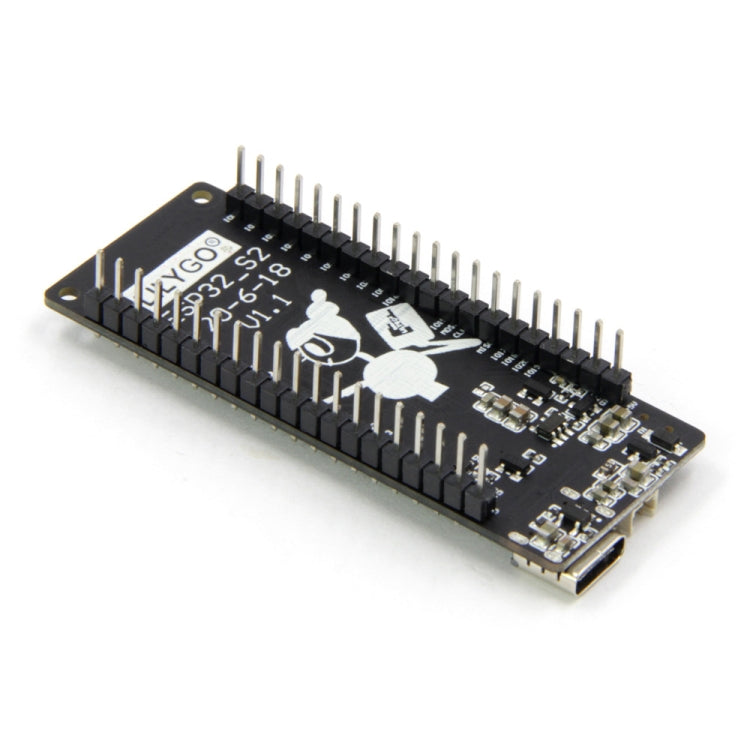

TTGO ESP32-S WiFi Wireless Module Type-C Connector TF Card Slot Development Board

Name: TTGO ESP32-S WiFi Wireless Module Type-C Connector TF Card Slot Development Board
Brand: TTGO
SKU: DIY5123
Price: 389.00 ZAR
Availability: InStock

R 389.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Hardware specifications
1. Chipset: ESPRESSIF-ESP32-S2
2. Flash: 4MB
3. Static SRAM: 8MB
4. SRAM: 520 kB SRAM
5. Buttons: power switch, base, start, custom
6. External device: TF card
7. USB to TTL: CH340C

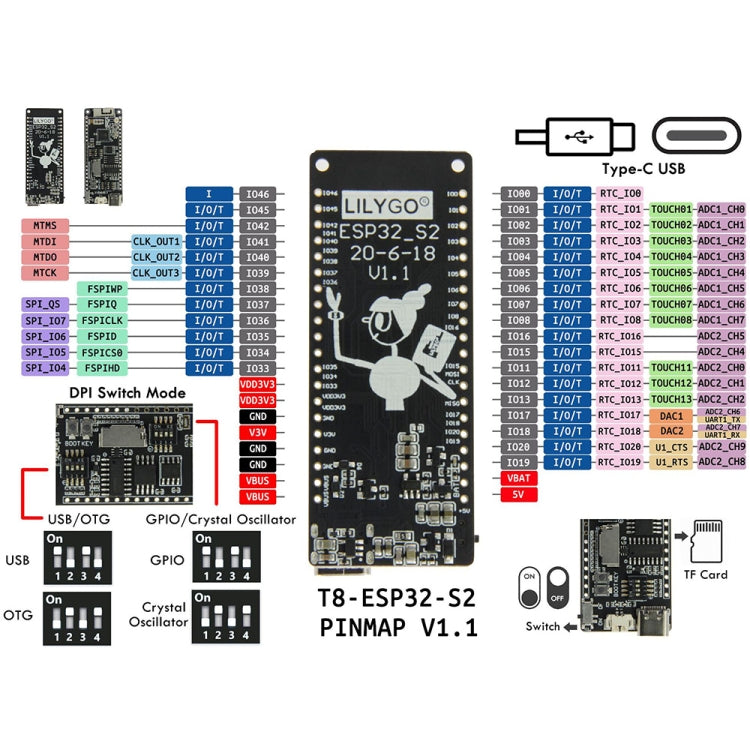

8. Modular interface: SD card, UART, SPI, I2C, PWM, I2S, ADC
9. Vehicle clock: 32.768KHz crystal oscillator
10. Working voltage: 2.7V to 3.6V
11. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius

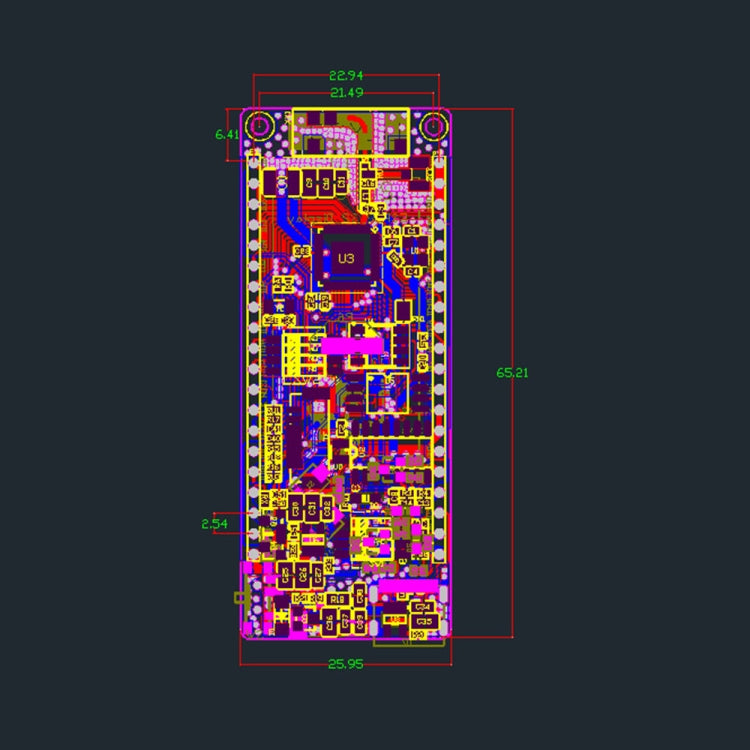

12. Dimensions: 63 x 30 x 6.6mm
13. Weight: 7g

Power Specifications
1. Power input: USB 5V / 1A
2. Charging current: 500 mA
3. Battery input: 3.7-4.2V
4. JST connector: 2-pin 1.25mm
5. USB: Type C USB

WiFi
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (esp32 chip)
2. Protocol: 802.11 b / g / n (802.11n, speed up to 150Mbps, A-MPDU and A-MSDU aggregation, support 0.4uS guard interval
3. Frequency range: 2.4GHz~2.5GHz (2400M`2483.5M)
4. Transmit power: 22dBm
5. Communication distance: 300m
