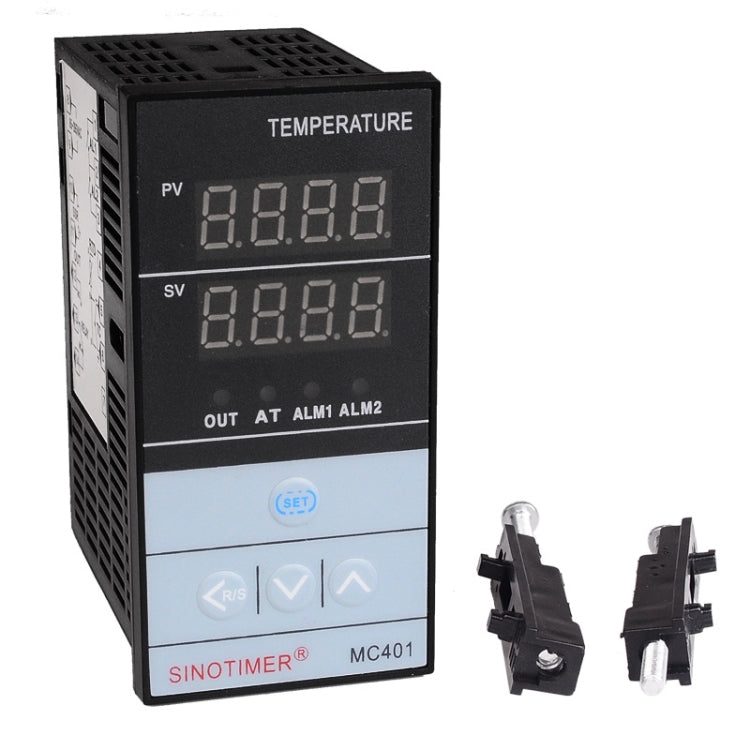

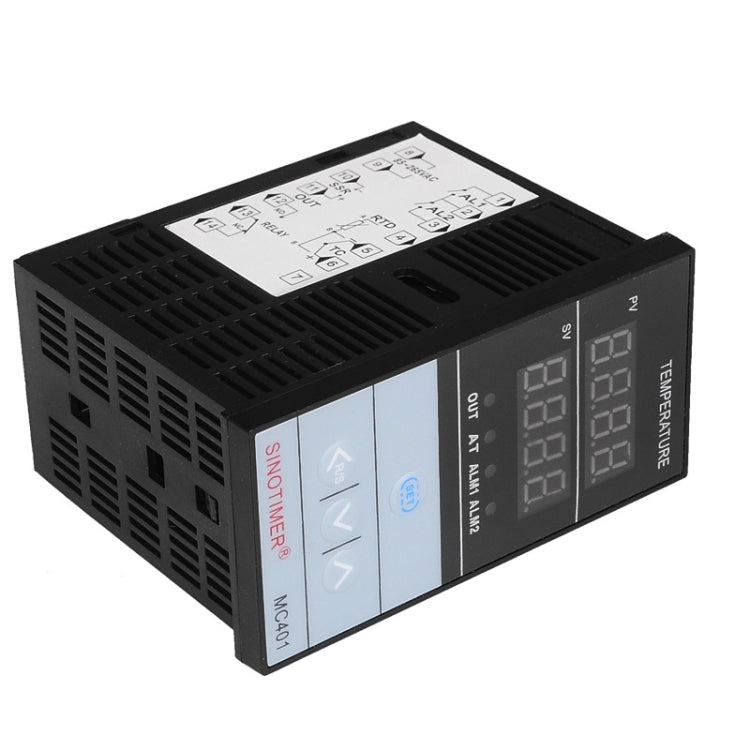

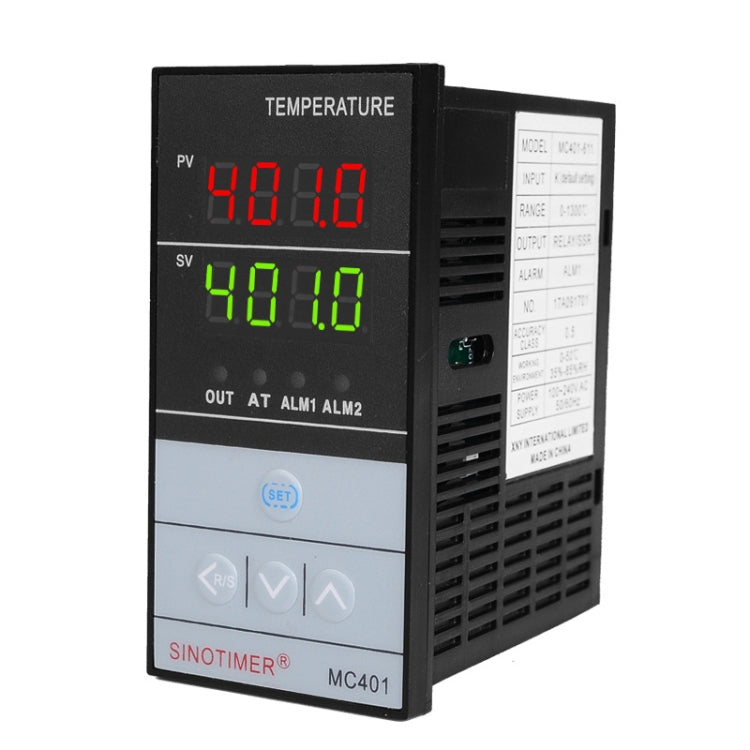

SINOTIMER MC401 Universal Input Short Case PID Intelligent Temperature Controller Meter Heating Cooling Relay SSR Solid State Output

• Product type: Thermostat & Thermometer
• Brand: SINOTIMER
• Compatibility: Universal input
• Material: Not specified
• Key feature: Intelligent control
• Color/Variant: Not specified
• Intended use: Temperature control
• Category: Consumer Electronics

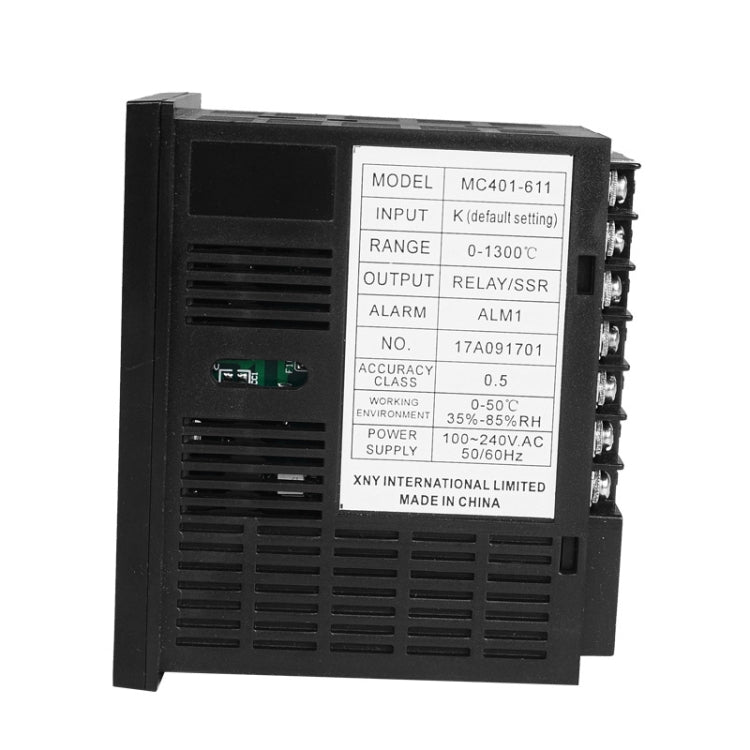

1. Measuring range: 0-1300 degrees Celsius
2. Measurement accuracy: 0.5%FS

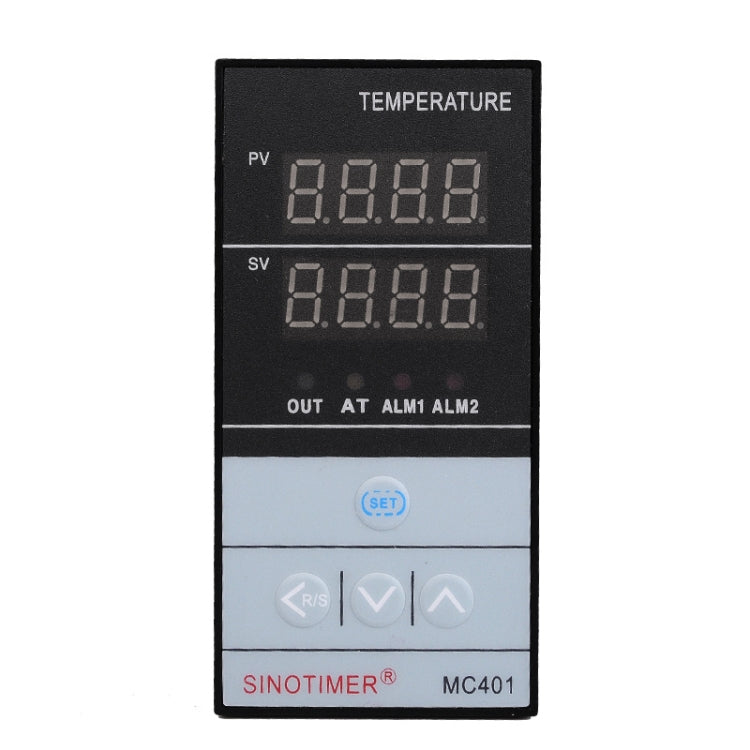

3. Display mode: LED
4. Input: universal input, K/E/J/N/S/T/R/B/Pt100 and other signals, can be changed by yourself
5. Resolution: 0.1
6. Temperature display: degrees Fahrenheit / degrees Celsius
7. Power input: AC 100-240V 50/60Hz
8. Operating environment: 0-50 degrees Celsius, 35%-85% RH
9. Opening size: about 4.5 x 9.2cm
10. Overall size: about 4.8 x 9.6 x 8.5cm
Features:
1. Universal input, can change the input signal at will
2. Fahrenheit or Celsius temperature can be switched as required

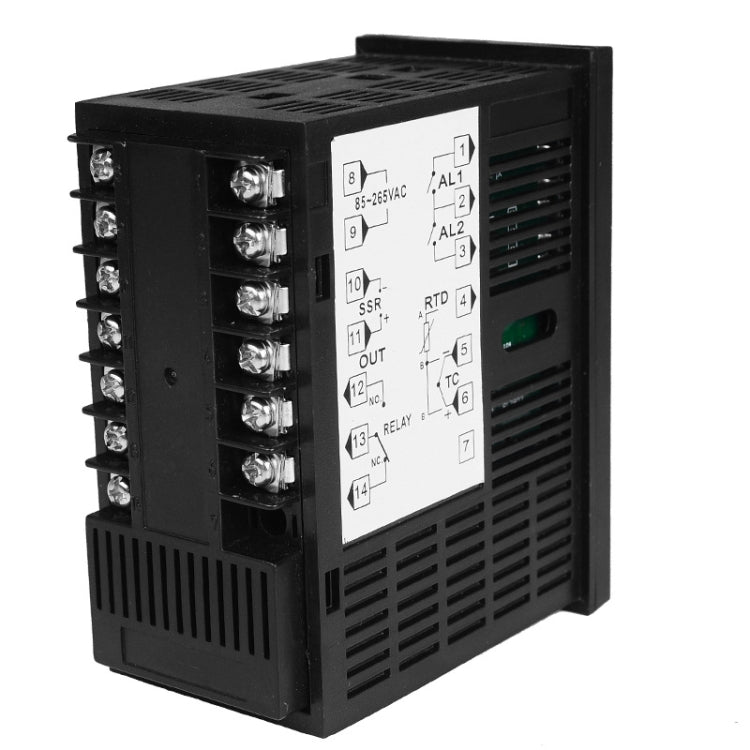

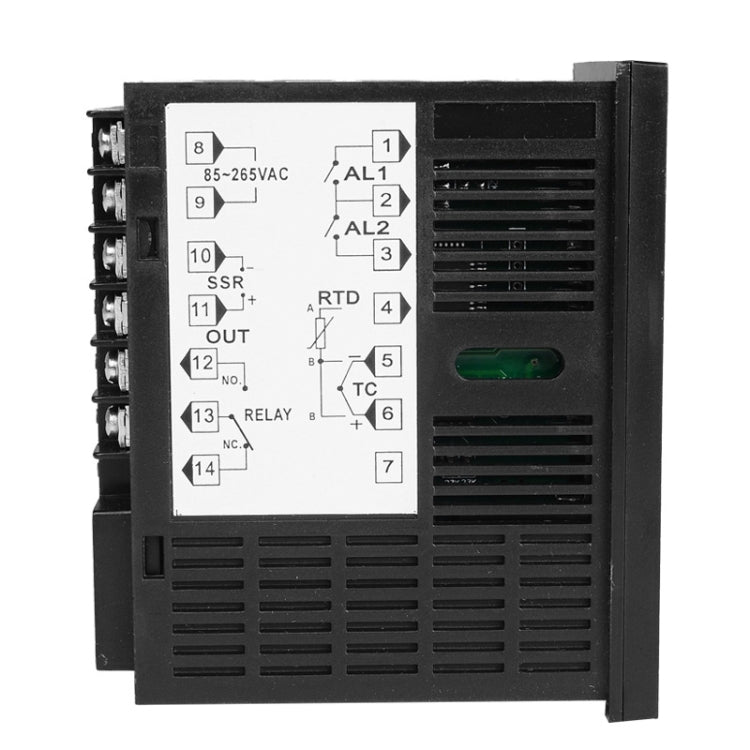

3. 1 set of control outputs (relay/SSR integrated), free to use relay outputs or SSR outputs
4. Thermometer signal input, with decimal point digital display
5. Using anti-interference chip, liquid crystal display, simple and clear
