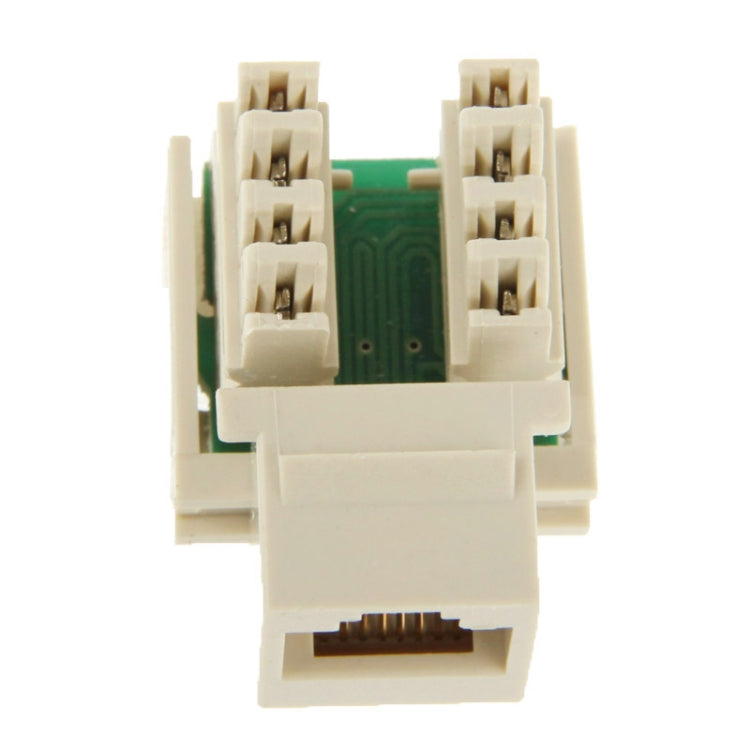

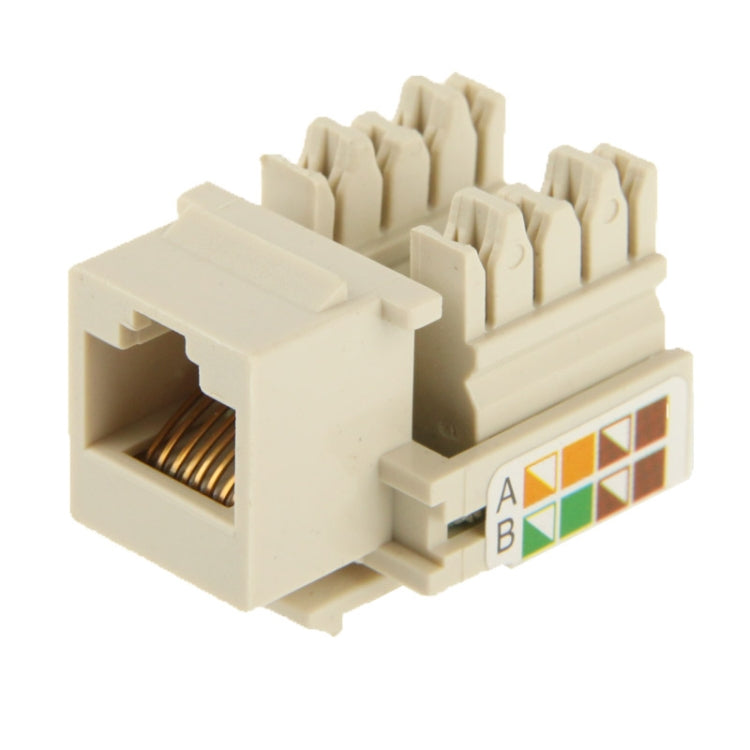

Networking RJ45 Cat5E Jack Module Connector Adapter (Good Quality)
Networking RJ45 Cat5E Jack Module Connector Adapter (Good Quality)
Sale
Sold out
Pre-order
Regular price
R 179.00
Regular price
Sale price
R 179.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Lan Cable and Tools
• Compatibility: RJ45 Cat5E
• Material: Polycarbonate, phosphor bronze
• Key feature: Compact structure with lockable terminal cap
• Color/Variant: Not specified
• Intended use: Telecommunication connections
• Category: Networking Accessories
1) Extra class V jack modular 2) Duct satisfies T-568A extra class V transmission specification as well as the wiring sequence of T568A and T568B 3) It is applicable for connection of telecommunication jacks between equipment room and working area 4) The structure is compact and on the modular, the distinct general-purpose wiring sequence labels are used for a correct and quick terminating 5) The lockable terminal cap will ensure a solid terminating to avoid its loose 6) The 8-pin contact has 30μm gold-plating and its durability can withstand 1,500 cycles of insert and pull 7) The post is covered by polycarbonate and IDC post clamp is made of phosphor bronze 8) It is applicable to wire sizes of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) and its durability can withstand 250 cycles of insert and pull 9) Standard wiring sequence of T568A and T568B 10) Transmission performance is tested under 100MHz 11) Near-end cross-talk: 44.5dB 12) Attenuation: 0.17dB 13) Backward wave loss: 30.0dB 14) Average: 46.3dB
• Compatibility: RJ45 Cat5E
• Material: Polycarbonate, phosphor bronze
• Key feature: Compact structure with lockable terminal cap
• Color/Variant: Not specified
• Intended use: Telecommunication connections
• Category: Networking Accessories
1) Extra class V jack modular 2) Duct satisfies T-568A extra class V transmission specification as well as the wiring sequence of T568A and T568B 3) It is applicable for connection of telecommunication jacks between equipment room and working area 4) The structure is compact and on the modular, the distinct general-purpose wiring sequence labels are used for a correct and quick terminating 5) The lockable terminal cap will ensure a solid terminating to avoid its loose 6) The 8-pin contact has 30μm gold-plating and its durability can withstand 1,500 cycles of insert and pull 7) The post is covered by polycarbonate and IDC post clamp is made of phosphor bronze 8) It is applicable to wire sizes of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm) and its durability can withstand 250 cycles of insert and pull 9) Standard wiring sequence of T568A and T568B 10) Transmission performance is tested under 100MHz 11) Near-end cross-talk: 44.5dB 12) Attenuation: 0.17dB 13) Backward wave loss: 30.0dB 14) Average: 46.3dB
