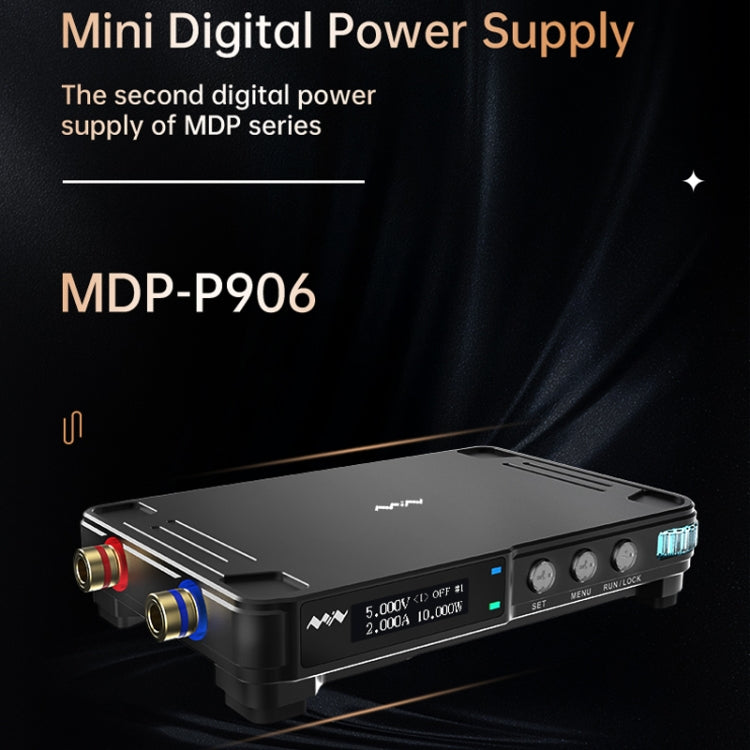

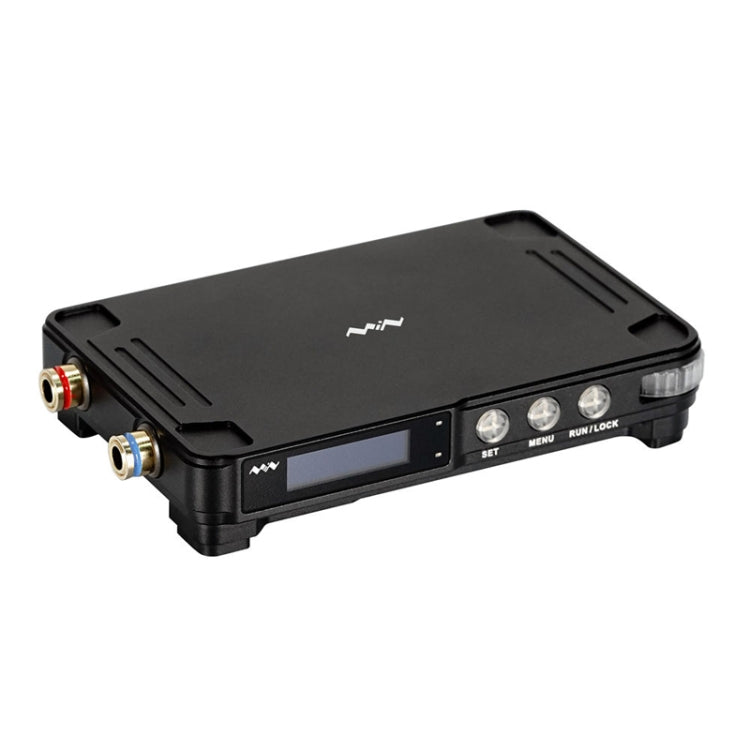

MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module, Model: MDP-P906

Name: MINIWARE Rise And Fall Linear Switching DC Mini Digital Power Module, Model: MDP-P906
Brand: MINIWARE
SKU: TBD0604635601
Price: 3939.00 ZAR
Availability: InStock

R 3,939.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

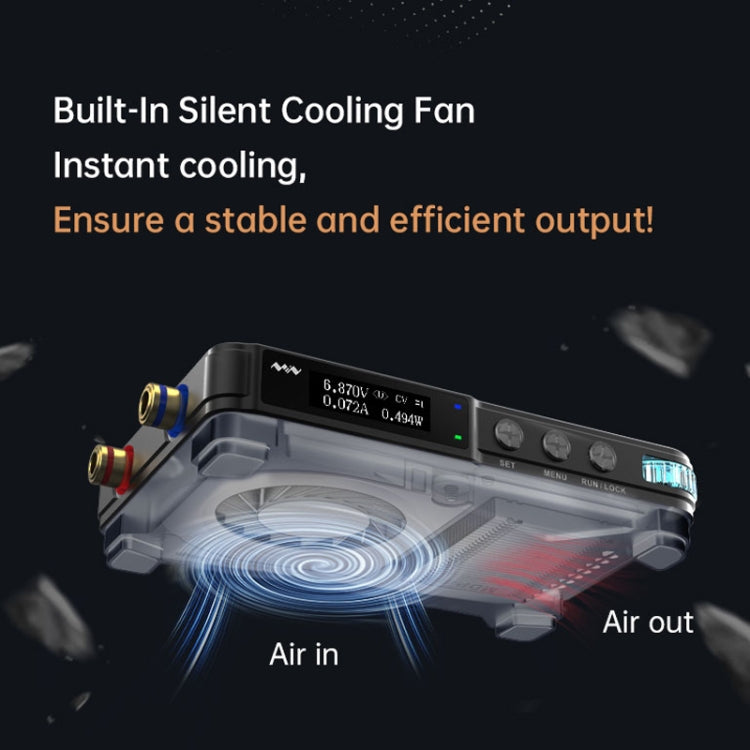

1. Built-in silent cooling fan, fast heat dissipation to ensure stable and efficient output

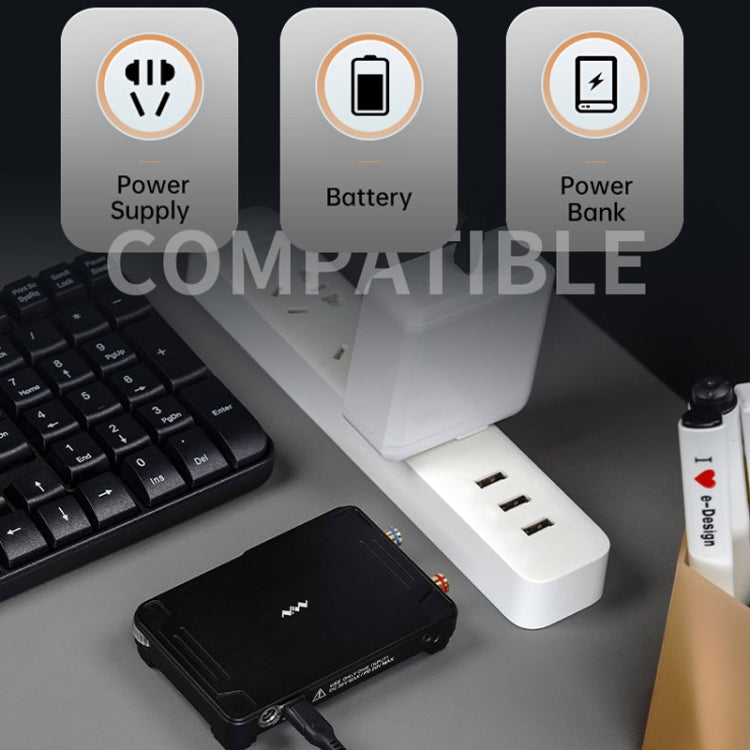

2. Compatible with a variety of mobile power supply, maintenance and debugging at any time and anywhere

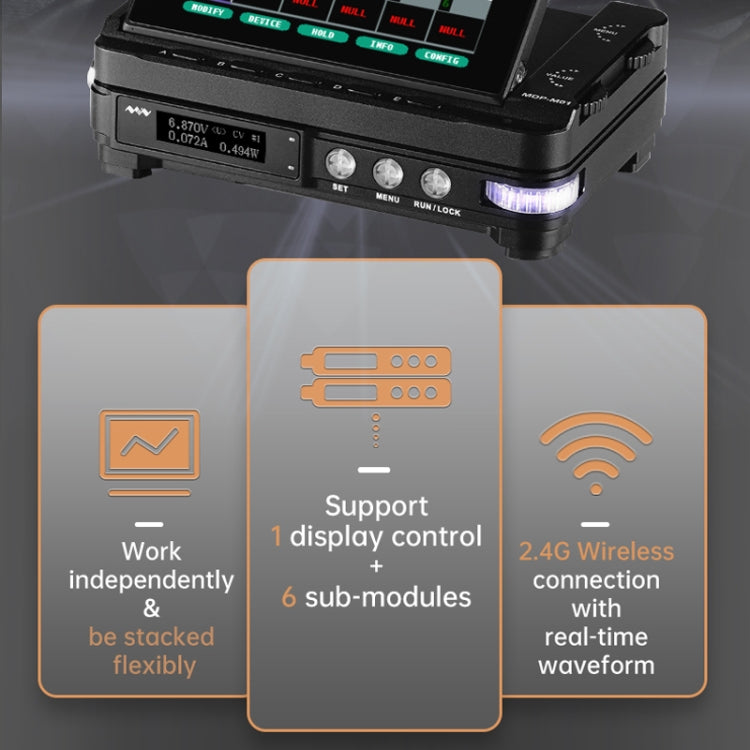

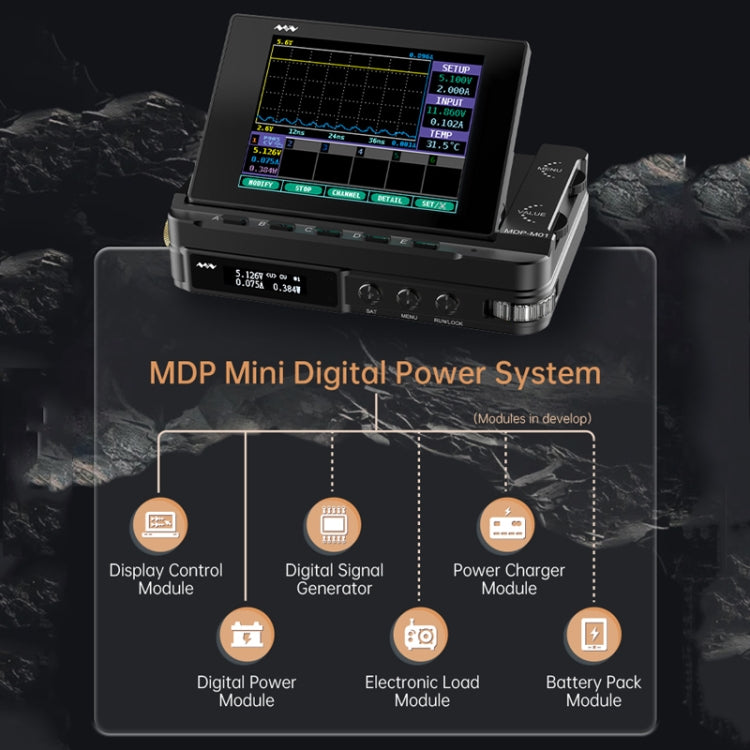

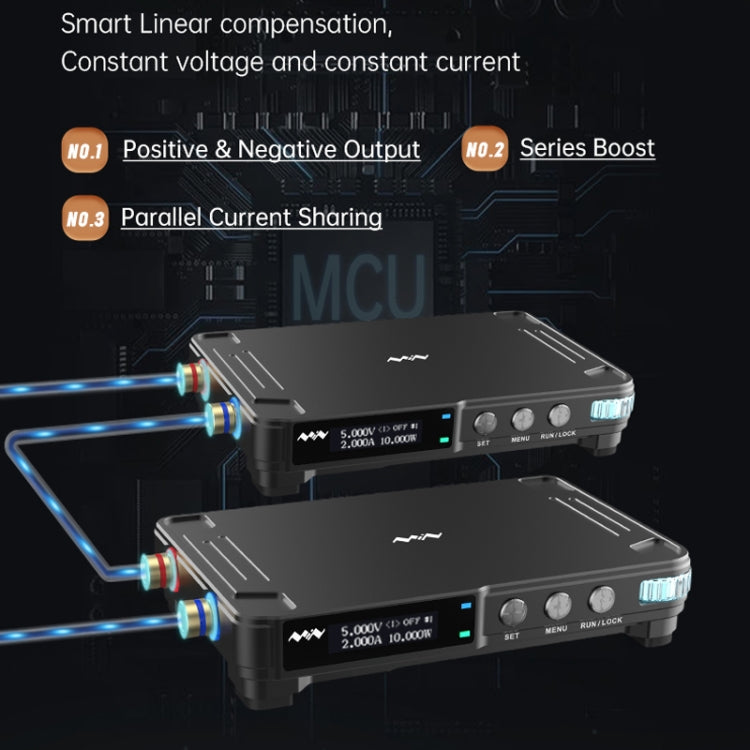

3. Can work independently or stacked flexibly
4. Mini size, higher sensitivity

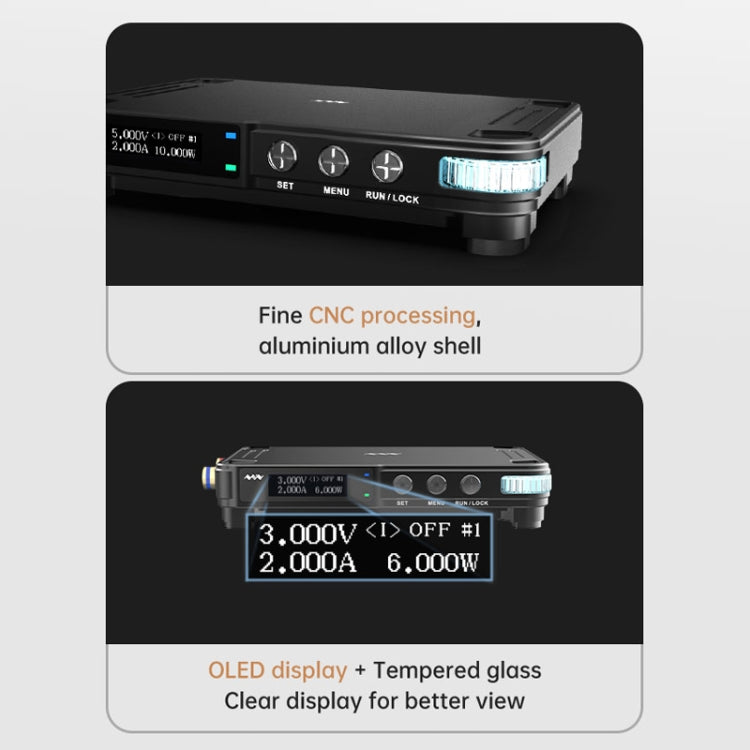

5. Precision CNC machining, full aluminum alloy plating shell, durable and rust resistant
6. OLED display, tempered glass surface for clearer display

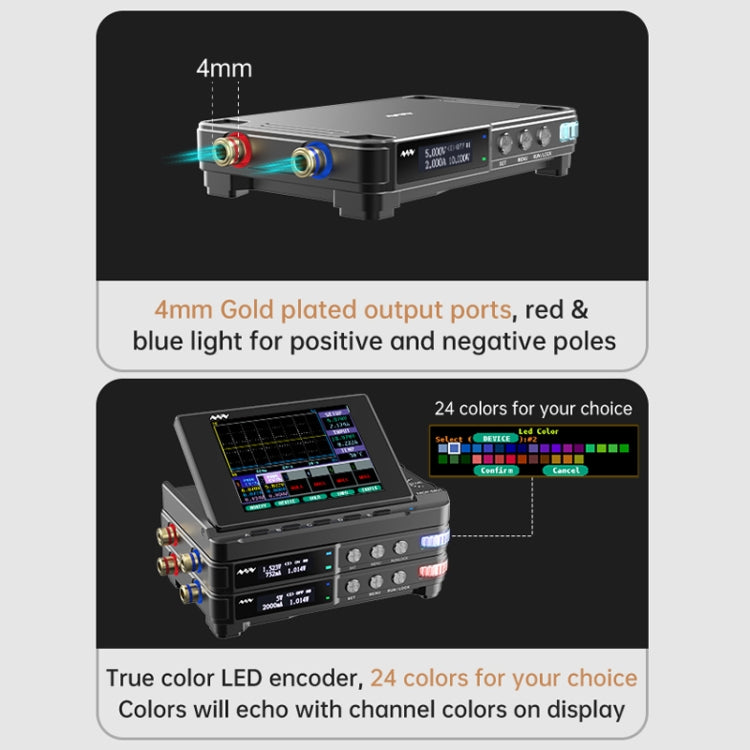

7. 4mm gold-plated output connector, positive and negative red and blue status indicators
8. 24-color colorful light dial wheel set up at will, the display and control interface color block and its intelligent echo when on-line
9. Built-in high-performance MCU chip, powerful function

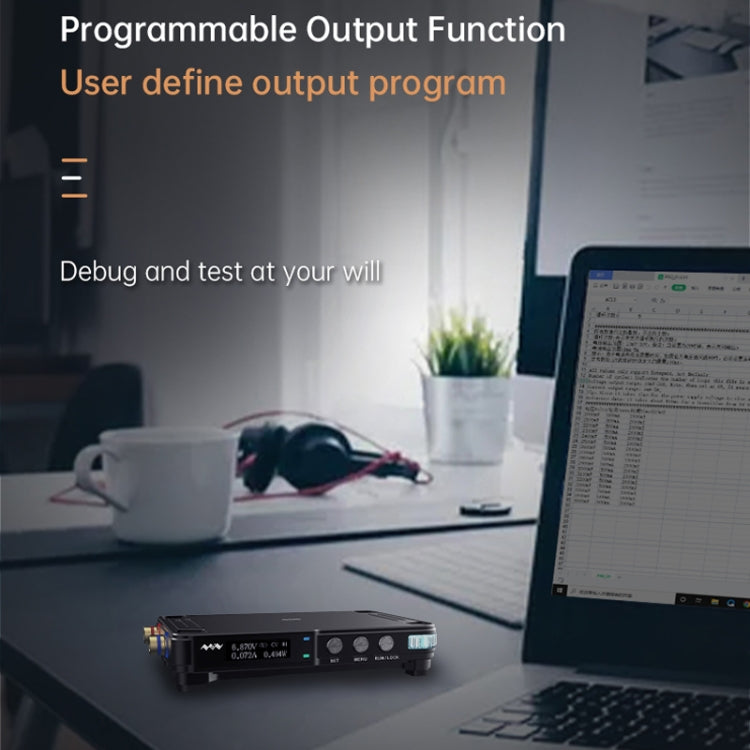

10. Programmable output advanced features, custom program output law
11. Can be preset parameters and firmware upgrades, a wide range of application scenarios

Parameters:
1. Input: DC4.2V-30V 14A; QC3.0/PD2.0 20V 5A
2. Output: 0-30V 0-10A 300W
3. Conversion efficiency: 95 percent
4. Output resolution: 10mV, 2mA; through the line control module settings up to 1mV, 1mA
5. Output accuracy: 0.03 percent+5mV, 0.05 percent+2mA
6. Adjustment rate: Load adjustment rate is less than +/-0.01 percent; power supply adjustment rate is less than +/-0.01 percent

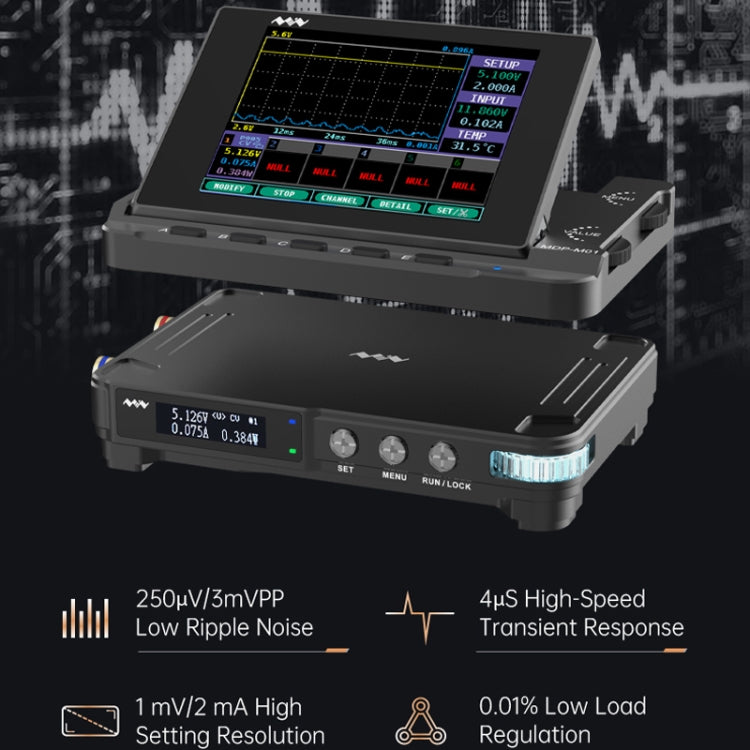

7. Ripple and noise: less than 250uVrms, 3mVpp; less than 2mArms
8. Transient response time: less than 4uS
9. Safety protection: input overvoltage, undervoltage, reverse connection protection, output overcurrent, backflow, over-temperature protection
10. Other features: automatic shutdown, enter micro-power mode, support USB firmware upgrade

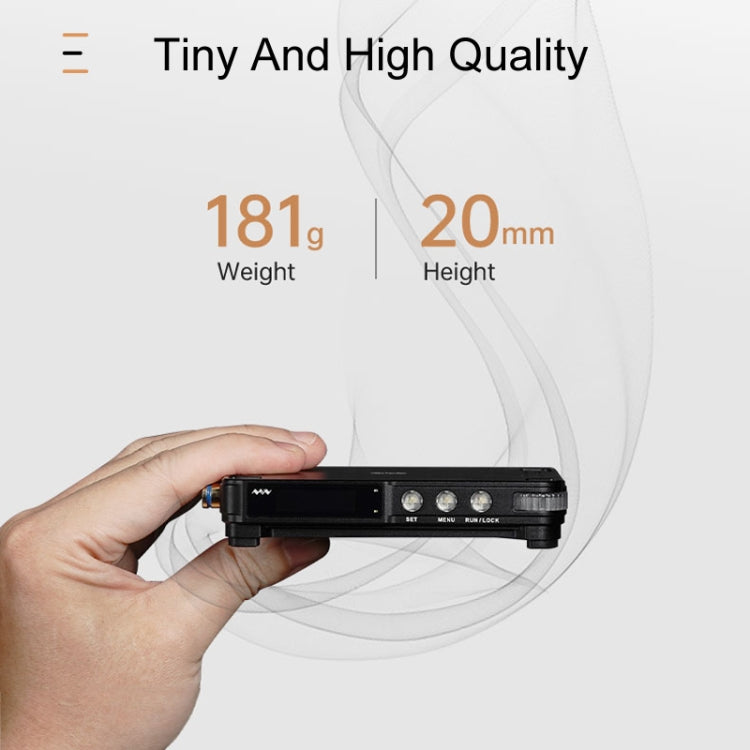

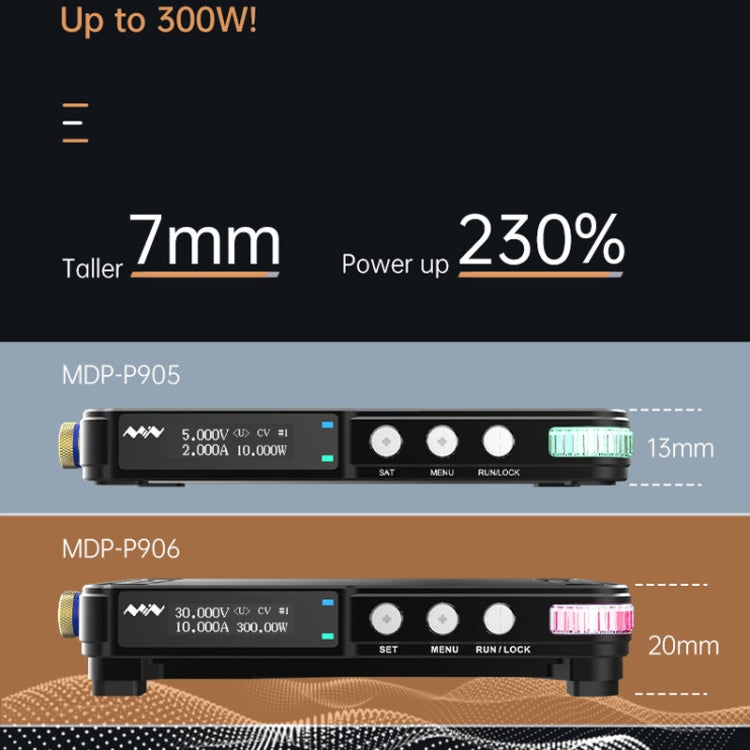

11. Size: 112 x 66 x 20mm
12. Weight: 181g

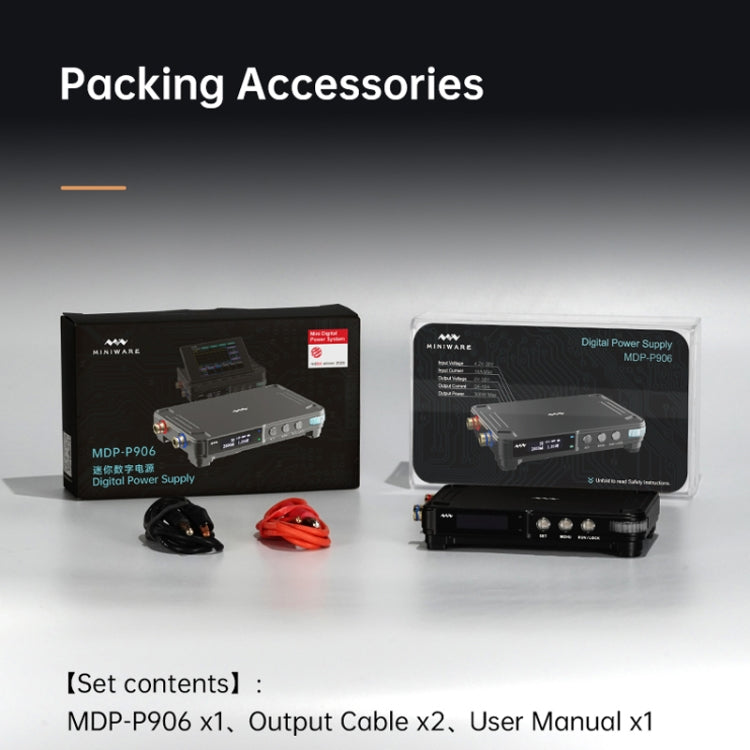

Packing list:
- MDP-P906 x 1
- Output data cable x 2
- Instructions for use x 1
