LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show)

Name: LM2596-ADJ DC-DC Adjustable Step-Down Power Module 4V-40V To 1.23-35V 3A Stereotype Board(As Show)
Brand: PMC Jewellery
SKU: TBD0603269701A
Price: 299.00 ZAR
Availability: InStock

R 299.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Stable operation at 3A at room temperature (test conditions 29°C, humidity 50%), if working for a long time it is recommended to add a heat sink

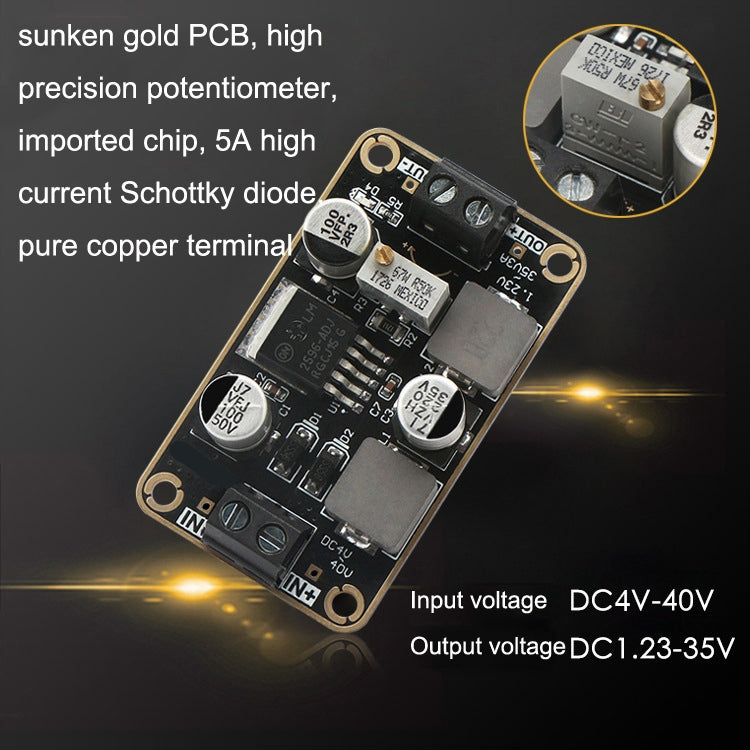

2. High Q high current shielded inductor, low ESR high capacity capacitor, sunken gold PCB
3. High precision potentiometer, imported chip, 5A high current Schottky diode, pure copper terminal
4. Input voltage: DC4-40V
5. Output voltage: DC1.23-35V
6. Output power: 15W
7. Breakdown voltage: over 45V input
8. Start-up voltage: 4V
9. Fault protection: reverse connection, undervoltage, overcurrent, overheat protection
10. Operating temperature: -40 to 85 degrees C
11. Output current: 3A
12. Output ripple: 4mV
13. No-load current: about 7mA

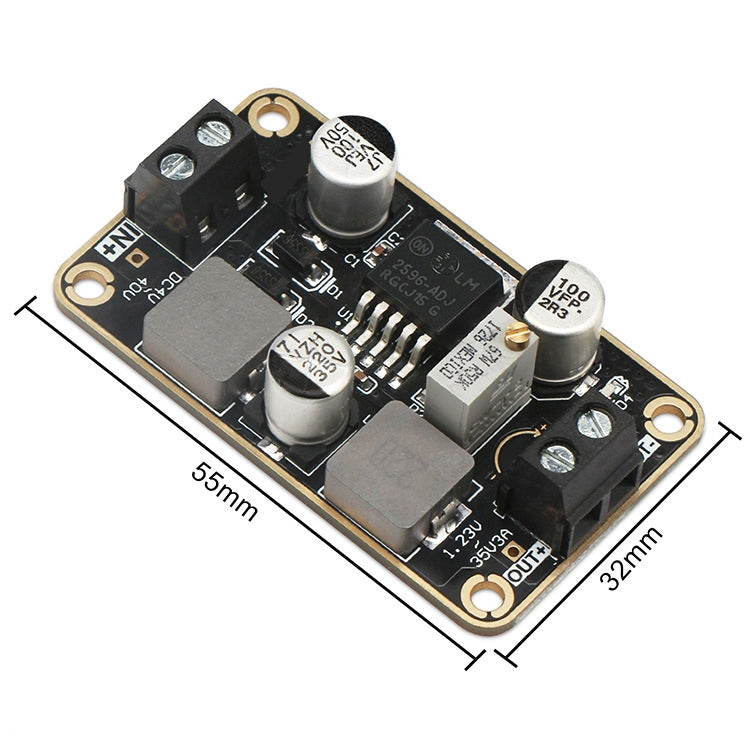

14. External dimensions: 55x32x13mm
15. Net weight: 20g
