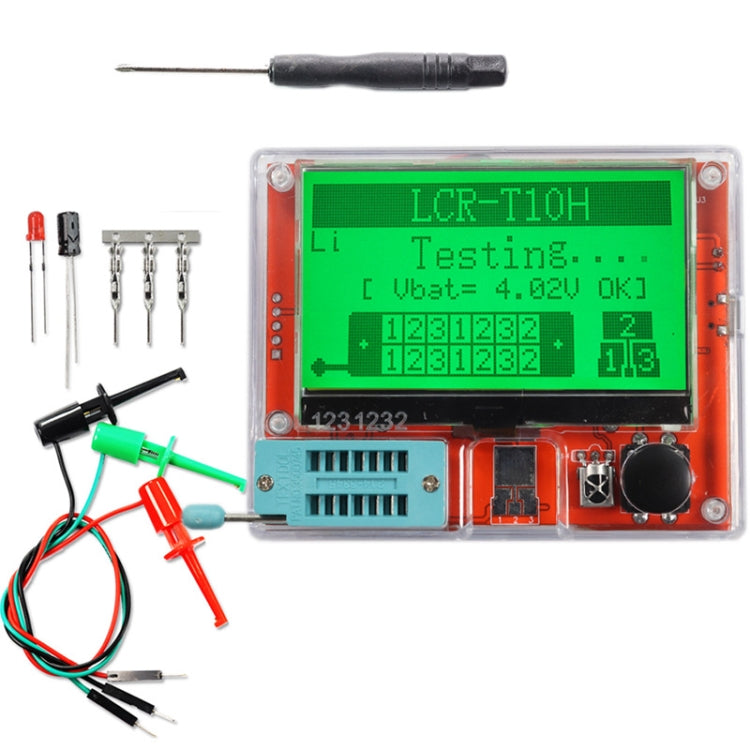

LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered

Name: LCR-T10H Transistor Tester TFT Display For Diode Triode Capacitor Resistor Test, Spec: Dry Battery Powered
Brand: PMC Jewellery
SKU: TBD0604287402
Price: 559.00 ZAR
Availability: InStock

R 559.00

Sale Sold out

FREE DELIVERY on all orders.

⚫🖤🟡Add to Cart Now for Black Friday Discounts! Hurry, stock is almost gone! 🟡🖤⚫

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Made of high-quality materials, durable and practical.
2. Small size, simple application and easy installation.
3. Efficient and stable performance, long service life.

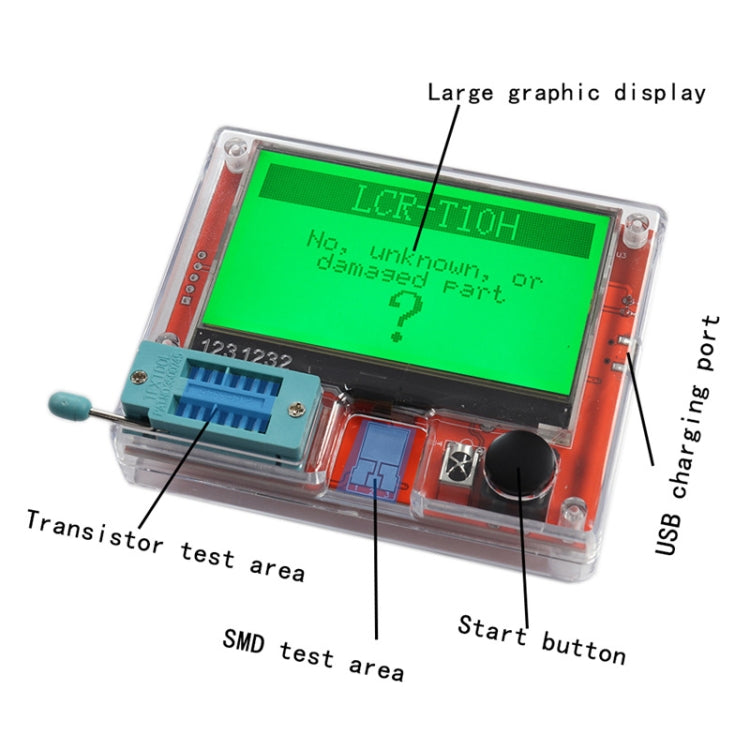

4. It can automatically identify the pin position and display it as a graphic. The large-screen graphic display is easy to read and observe.
5. Wide range of applications, with infrared waveform display and infrared receiving indication.
6. Easy to use, just place the component in the test area and press the "Start" button. Start automatic measurement

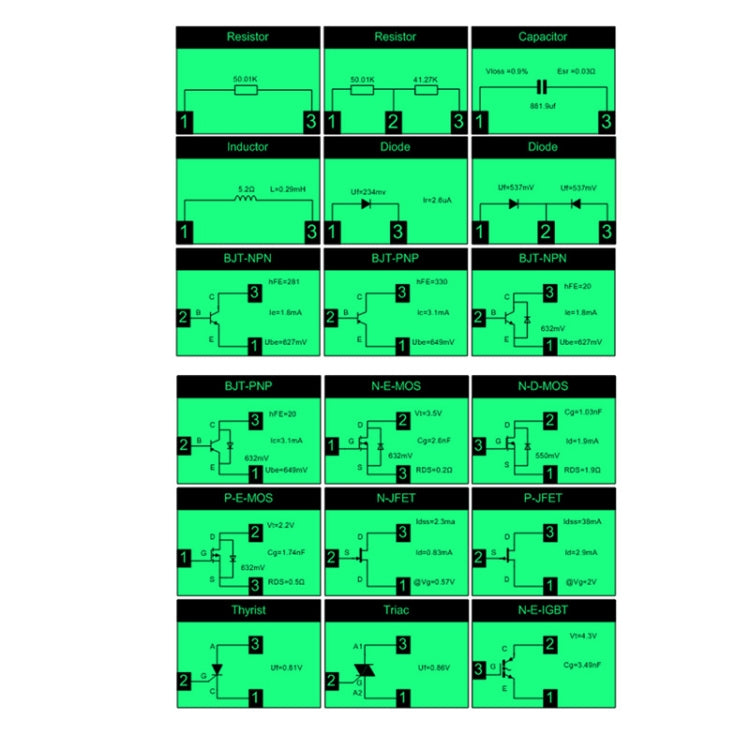

7. Can test related parameters of diodes, transistors, resistors, capacitors and inductors

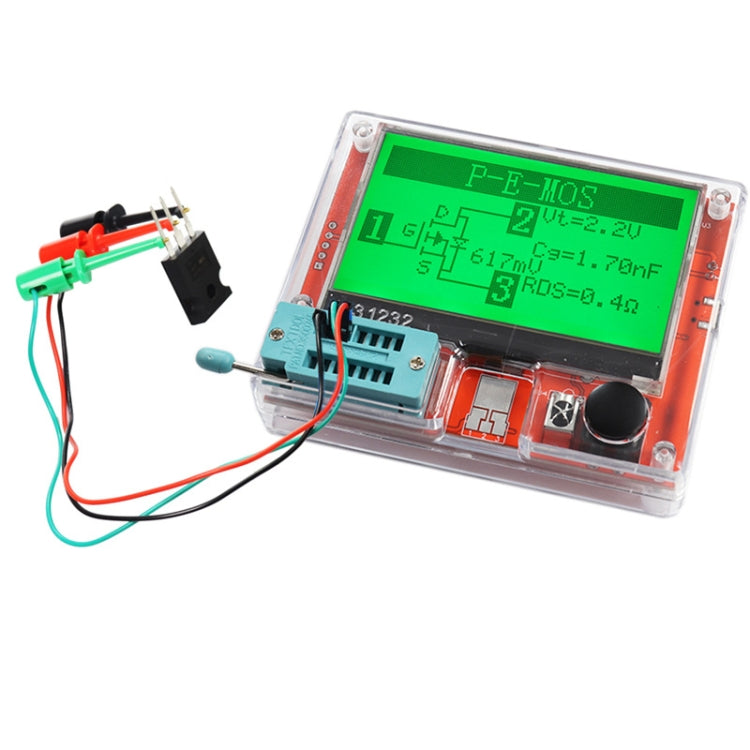

8. Able to test transistors, MOS tubes, thyristors, Darlington tubes, and IGBTs (note: high-power thyristors and IGBTs may not be tested accurately), and can automatically identify the foot position and display it graphically

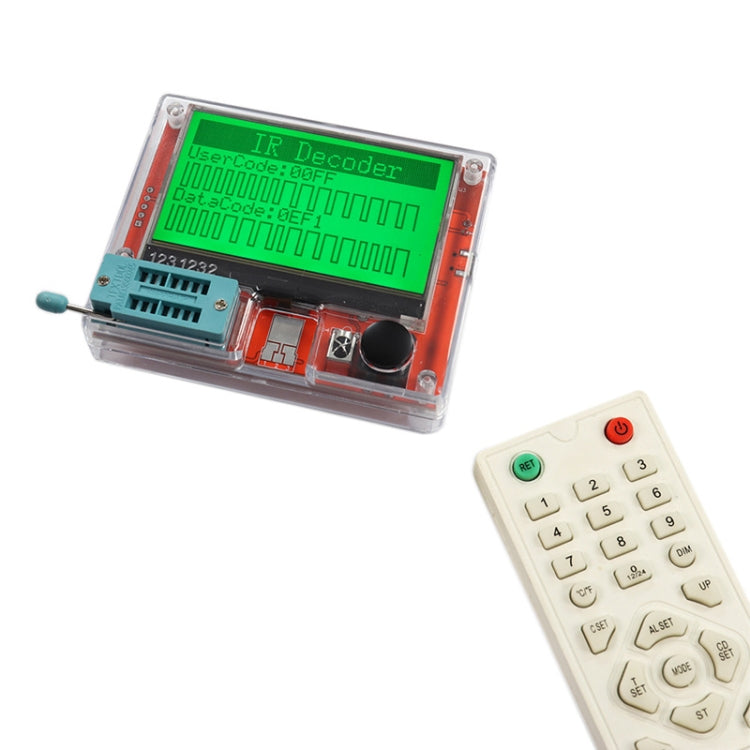

9. Can test the encoding value of the infrared remote control (only supports NEC format)

Parameter:
1. Lithium battery power supply: 3.7V
2. Working current: 50ma
3. Capacitance: 25pF-100mF
4. Resistance: 0.01-50MΩ
5. Inductance: 0.01mH-20H
6. Battery: 0.1-4.5V

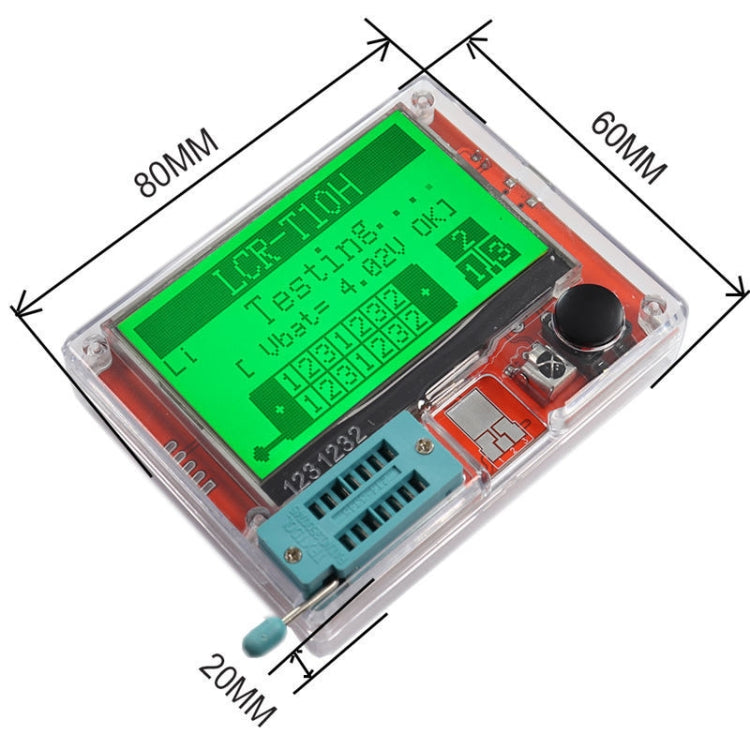

7. Dimensions: 80 x 60 x 20mm
8. Power supply method: rechargeable lithium battery (3.7V 300mAH)/2 AA batteries (optional style)

Note: The capacitor must be discharged before testing, otherwise the instrument will be directly damaged. This instrument is an active instrument. Do not use this instrument to measure live circuit boards, as it may cause damage to the circuit board and instrument.
