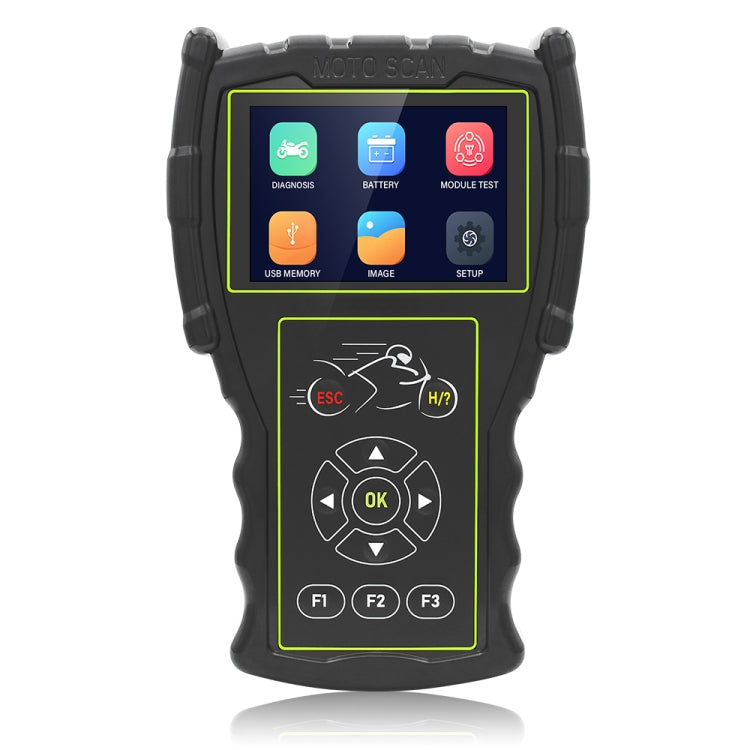

JDiag M100 PRO Intelligent Motorcycle Electronic Fuel Injection System Diagnostic Instrument(Black)

Name: JDiag M100 PRO Intelligent Motorcycle Electronic Fuel Injection System Diagnostic Instrument(Black)
Brand: PMC Jewellery
SKU: EDA002589801A
Price: 5789.00 ZAR
Availability: InStock

R 5,789.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. The product is a motorcycle diagnostic tool, which covers almost all major manufacturers diagnostic functions. It helps technicians diagnose problems and make repairs faster; many common procedures are written into the tool so the technician can follow them (injectors, ignitions, coils, fuel pumps, etc.).
2. It allows technicians to perform factory service procedures such as resetting service lights, unlocking immobilizers and configuring immobilizers/alarms, making injection adjustments (COTrimmer), adjusting throttle position sensor (TPS), resetting auto-adaptive parameters, and adjust the idle speed.
3. The tool displays real-time data, displays ECU data, reads stored faults (history) or real-time data (RPM, battery voltage, throttle).
4. List of supported motorcycles: Hartford, Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc.
5. Support multiple languages: English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian, Japanese, Korean.

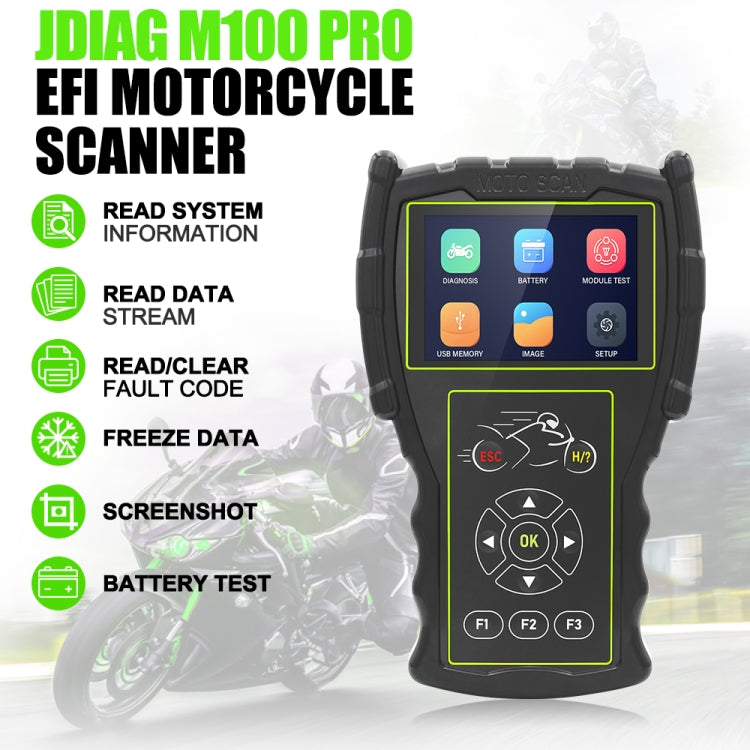

Feature:
1. Hand-held operation, easy and flexible to use
2. Support SD card to store data and upgrade
3. Reserved CAN bus interface
4. 3.5-inch color screen, clear display
5. Dynamic data with values ??and waveforms

Function:
1. Read system information
2. Read the data stream
3. Read the fault code
4. Clear the fault code
5. Freeze data
6. CO idle speed adjustment
7. ABS system test

Specification:
1. Power supply: DC10-15V
2. Working current: 250mA
3. Storage temperature: -10 degrees Celsius to 85 degrees Celsius
4. Operating temperature: 0 degrees Celsius to 70 degrees Celsius
5. Humidity: less than percent 90
6. Upgrade port: USB port
7. Communication port: COM port
