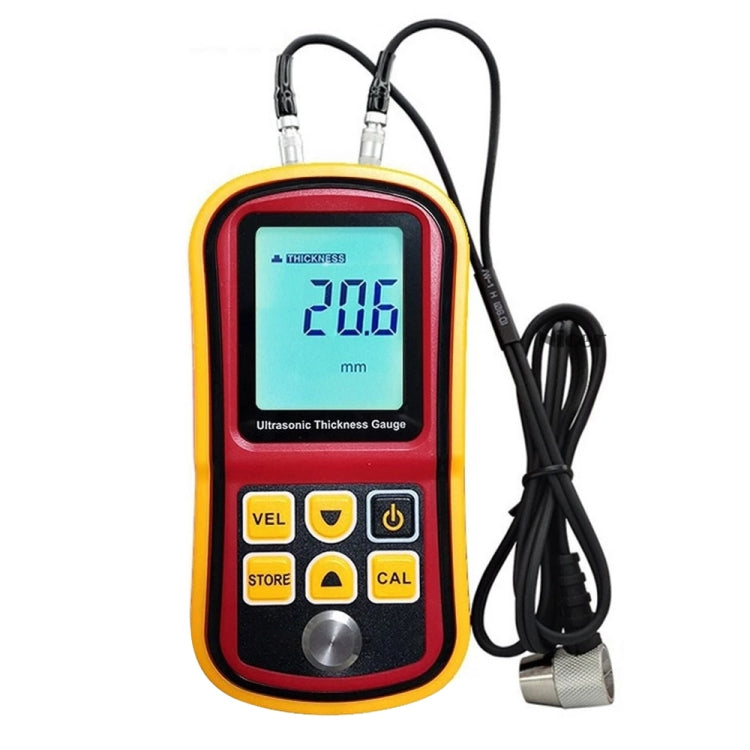

GM-100 Ultrasonic Thickness Meter Tester Gauge Velocity 1.2~225mm(Red)
GM-100 Ultrasonic Thickness Meter Tester Gauge Velocity 1.2~225mm(Red)
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
2. This unit is widely used in various precise measurements for different hardware / parts in industrial realm. One of its important applications is to monitor the level of thickness decreasing during operation of various and pressure container.
3. It is diffusely applied in manufacture fields, metal processing and commercial inspection. This product can be applied for the material that conduct and reflect constant sonic velocity

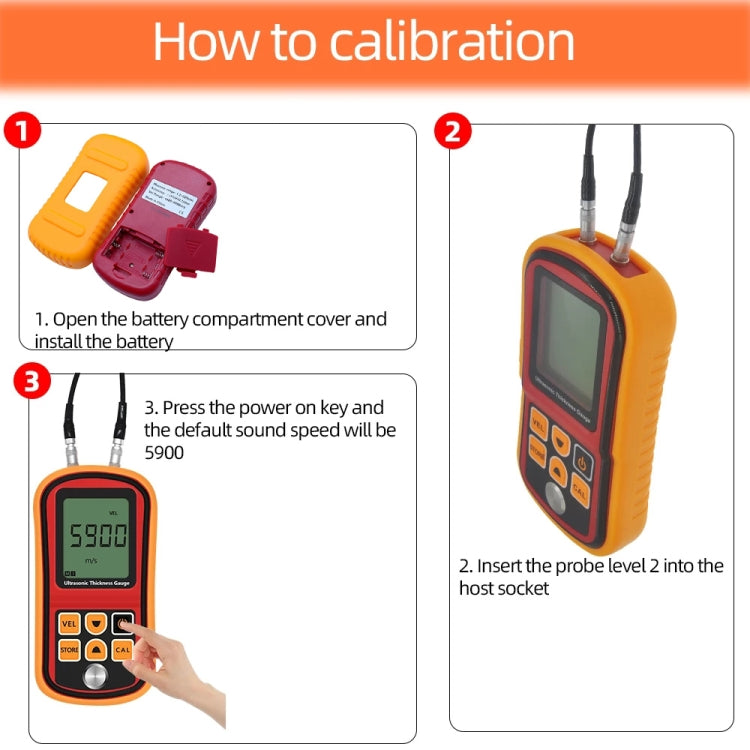

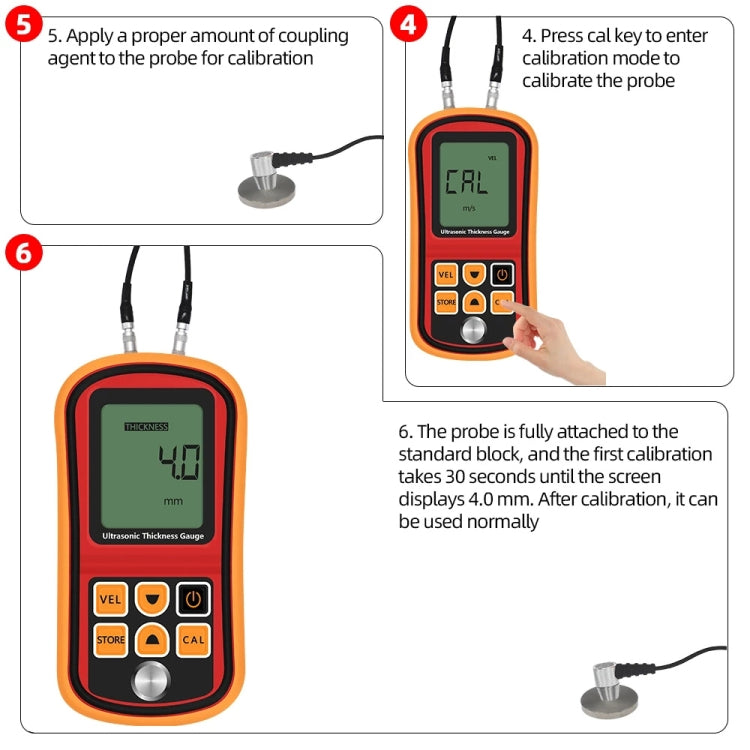

4. Auto Calibration to assure the accuracy
5. Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer

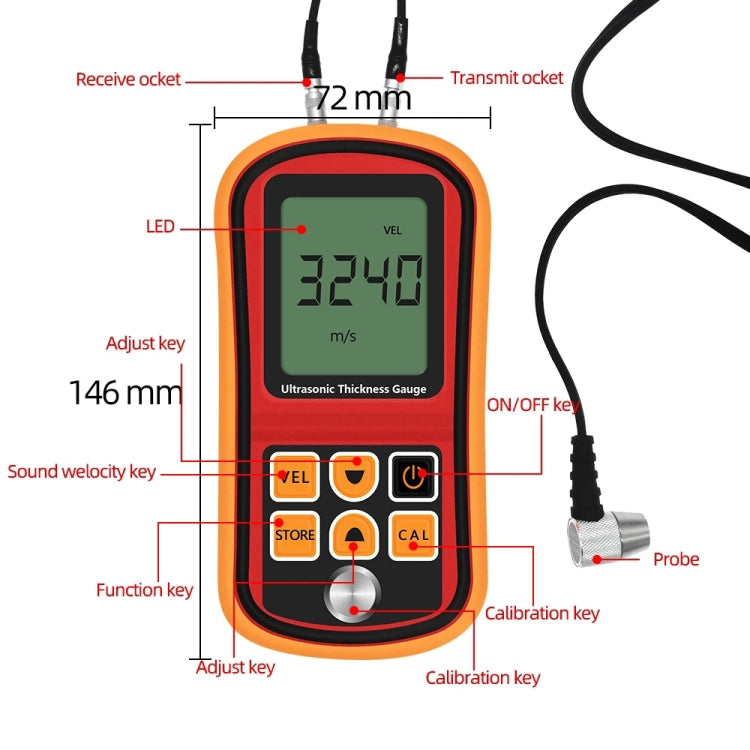

6. Use "up" and "down" keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
7. Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
8. 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
9. Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
10. 12 sound velocity for different material which also adjustable
11. Low battery indication
12. Auto power off mode designed to conserve battery life
13. More than 10000 times long life keys
14. The unit has a special memory that retains all of its setting even when the power is off
15. LCD Digital display: 4 digits
16. Minimum display unit: 0.1 mm
17. Working frequency: 5 MHz
18. Measurement Range: 1.2 ~ 225.0 mm (Steel)
19. Minimum limit for Tubes measurement: 20mm x 3mm (Steel)
20. Note: couplant (Not included)
21. Sound Velocity Range: 1000 ~ 9999 m/s
22. Measuring Sound Velocity with a given thickness
- Measuring Range: 1000 ~ 9999 m/s
23. Operating Temperature: 0 ~ 40 degree centigrade
24. Power supply: 3 x 1.5 AAA Alkaline Batteries (Not included)
25. Size: 150x76x30mm
