FG-100 1Hz-500kHz DDS Function Signal Generator Frequency Counter(White)
FG-100 1Hz-500kHz DDS Function Signal Generator Frequency Counter(White)
Sale
Sold out
Pre-order
Regular price
R 619.00
Regular price
Sale price
R 619.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The FG-100 is a DDS function signal generator and frequency counter designed for testing and debugging electronic circuits. It is compact and portable, making it suitable for use in various electronic testing scenarios.
- Product Type: Other Tester Tool
- Compatibility: Frequency Counter
- Material: Durable
- Color: White
- Intended Use: Testing and debugging electronic circuits
- Dimensions: 125mm x 80mm x 32mm
- Weight: Approximately 0.2kg (including accessories)
- Power Supply: DC 3.5V - 10V (recommended DC 5V with adapter, 3.7V lithium battery when using battery power)
- Frequency Range: Sine wave 1Hz - 500kHz (flat output amplitude reaches 200kHz, output amplitude decreases at higher frequencies); Other waveforms 1Hz - 20kHz (adjustable frequency limit not restricted if distortion and shaking requirements are low)
- Resolution: 1Hz
- Output Waveform: Sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, noise wave, electrocardiogram
- Sine Wave Distortion: Less than 1% below 1kHz; less than 0.5% at 1kHz and above
- Output Amplitude: Maximum +/-10V (P-P)
- Output Impedance: 50 ohms
- DC Offset: Maximum +/-10V, with shutdown function
- Filter: On/off filter for sine and pulse waveform output adaptation

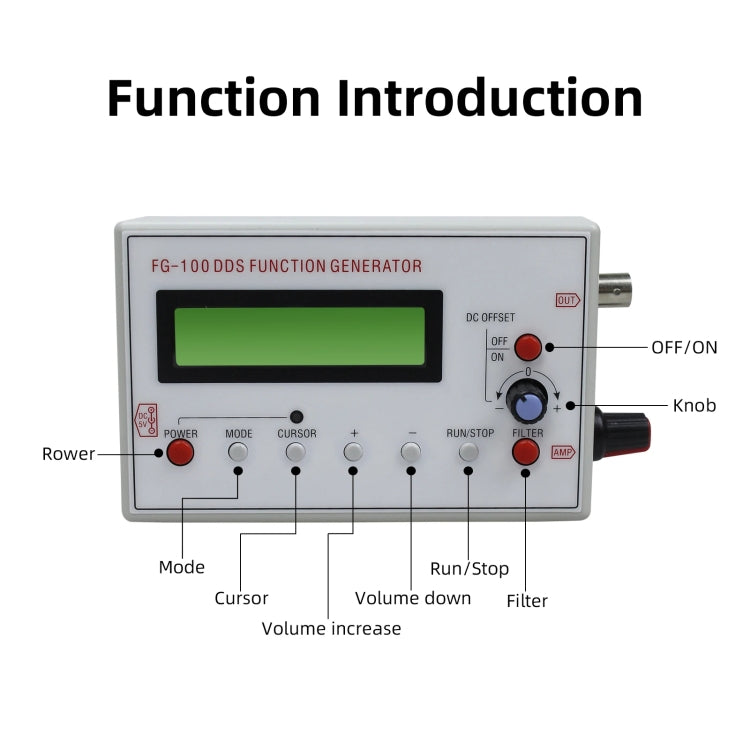

- Operation: Simple operation, easy to carry
