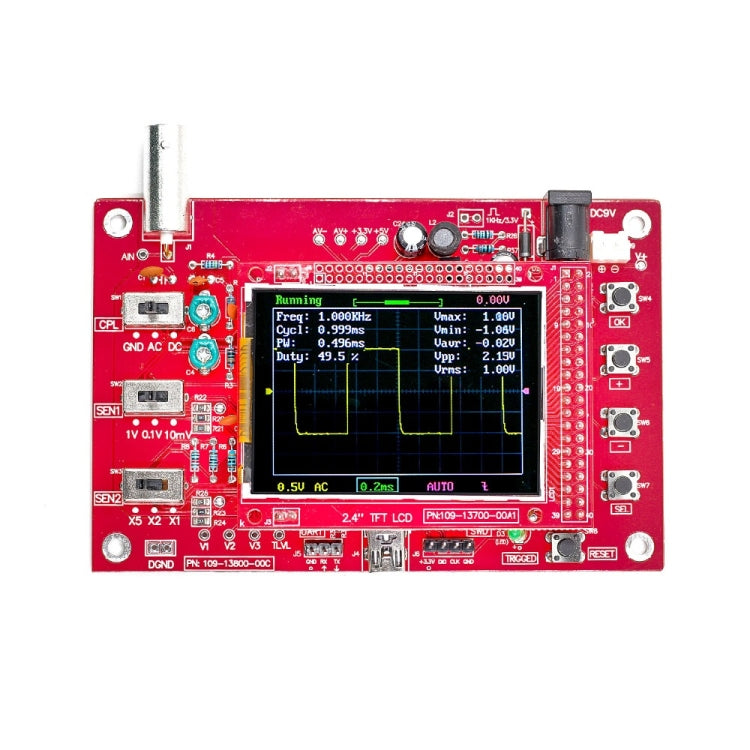

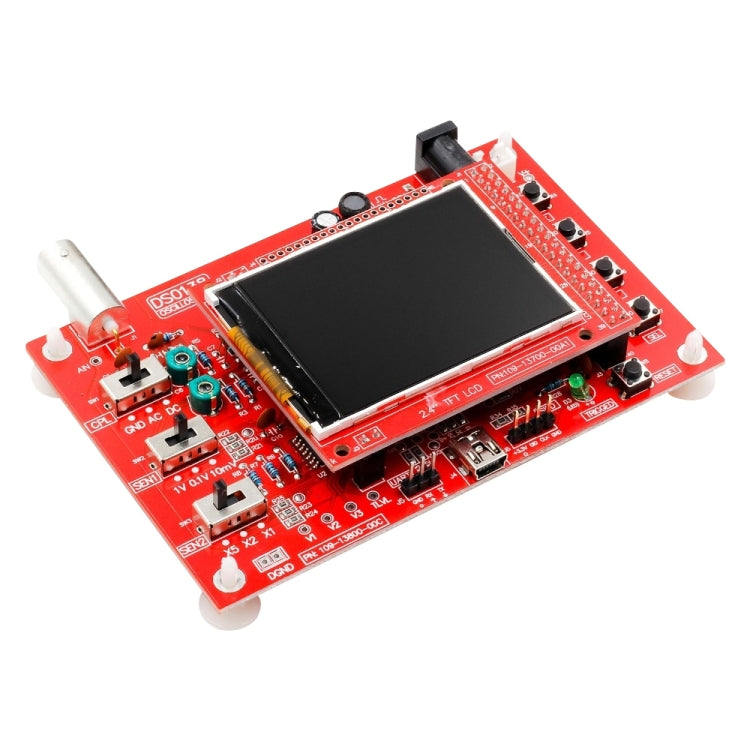

DSO138 Oscilloscope (Full Assembled)

Name: DSO138 Oscilloscope (Full Assembled)
Brand: PMC Jewellery
SKU: TBD0532699
Price: 529.00 ZAR
Availability: InStock

R 529.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features:

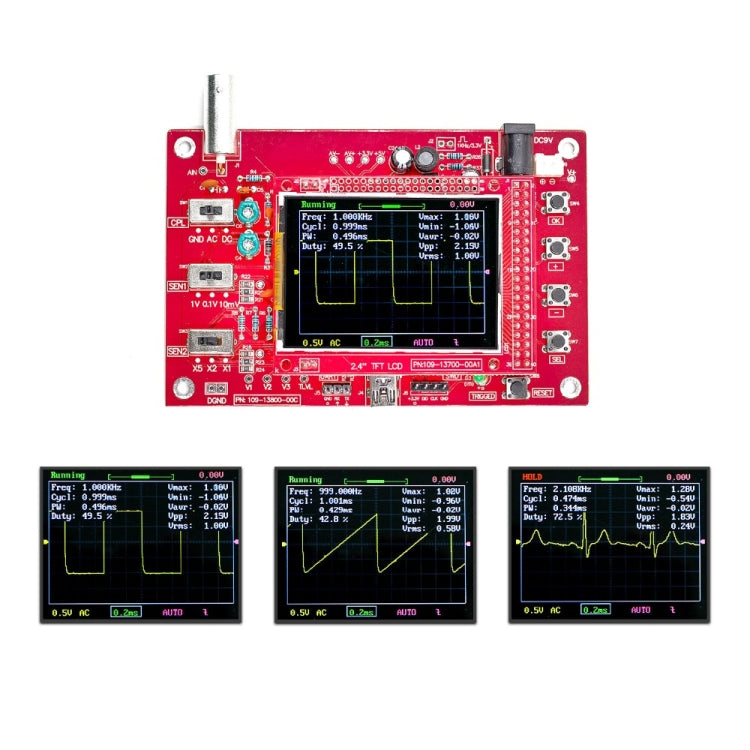

1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as ARM test development board.
2. Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
3. Adjustable vertical displacement, and with instructions.
4. With automatic, regular and one-shot modes, easy to capture the moment waveform.
5. Available rising or falling edge trigger.
6. Observable previous trigger waveform (negative delay).
7. Can freeze at any time waveform display (HOLD function).
8. Come 1Hz /3.3V square wave test signal source.
9. With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
10. Waveform storage function: will not lose the waveform after power off.
11. Short-circuit and open-circuit detection: can help the user find out the soldering error.
12. TFT controller recognition function.

Note:
This DIY kit is soldered.

Specifications:
1. Maximum Real-time Sampling Rate: 1Msps
2. Accuracy: 12Bit
3. Sampling Buffer Depth: 1024 bytes
4. Analog Bandwidth: 0-200KHz
5. Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
6. Input Impedance: 1Mohm
7. Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
8. Coupling Modes: DC / AC / GND
9. The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
10. Supply Voltage: DC 9V

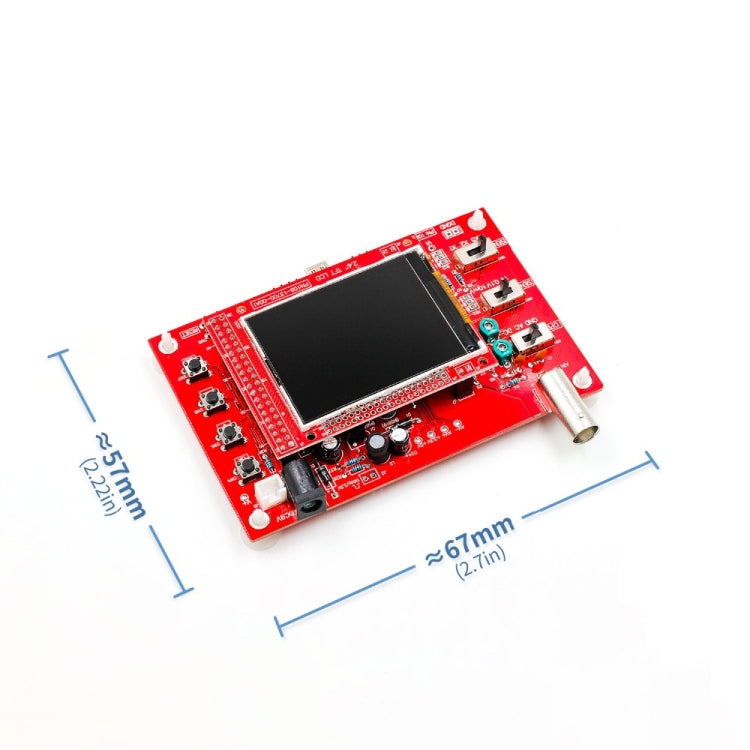

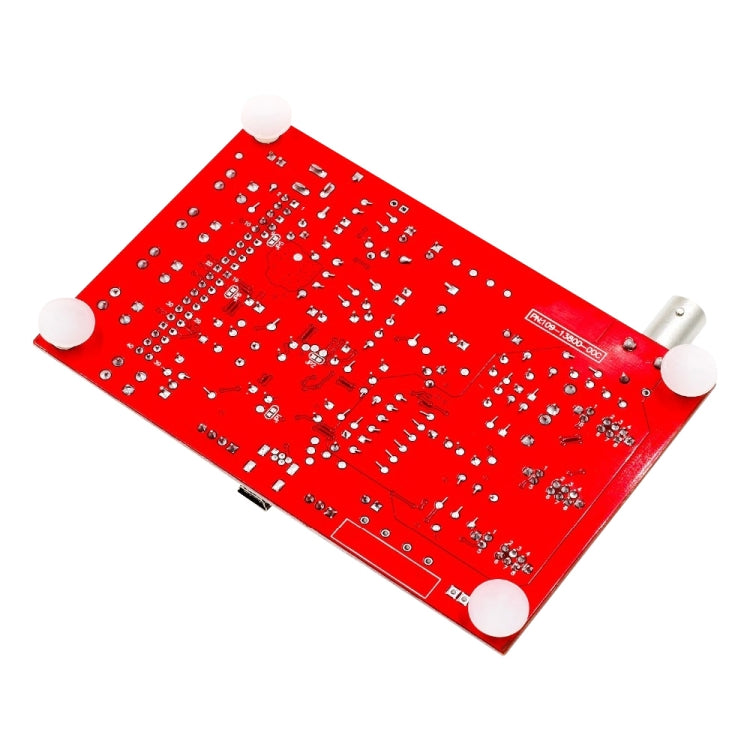

11. PCB Size: 117 * 76mm / 4.6 * 3in
12. Screen Size: 52 * 40mm / 2 * 1.57in

Package List:
- 1 * DSO138 soldered Oscilloscope Kit
- Soldering
- 1 * Probe
- 3 * User Manual(English)
