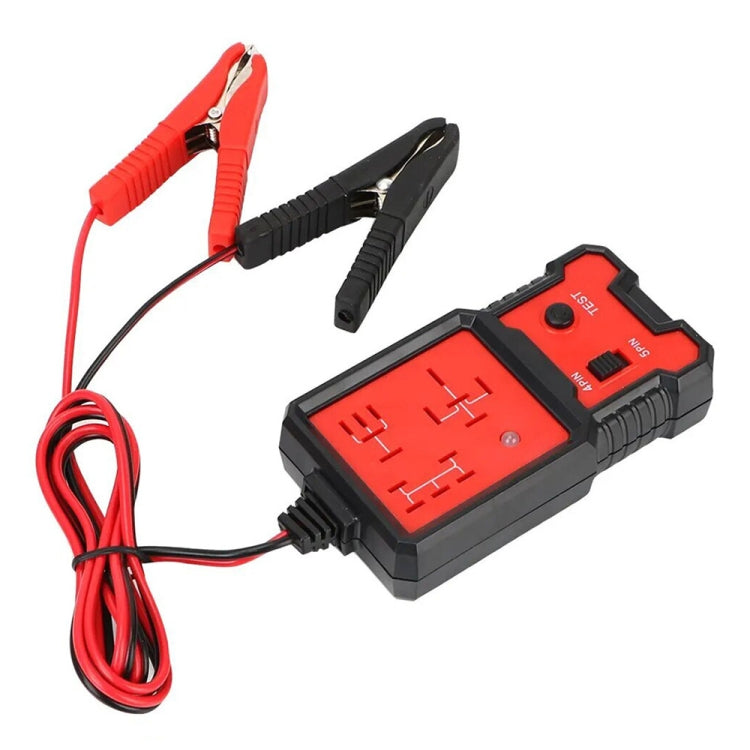

CNBJ-707 4 Pin 5 Pin Relays Quick Tester
CNBJ-707 4 Pin 5 Pin Relays Quick Tester
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Operating Instructions:

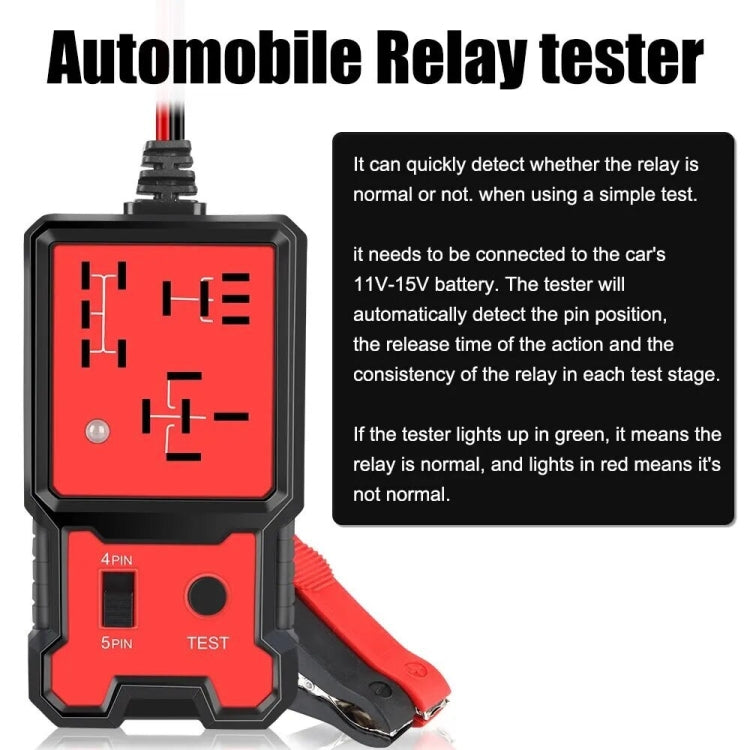

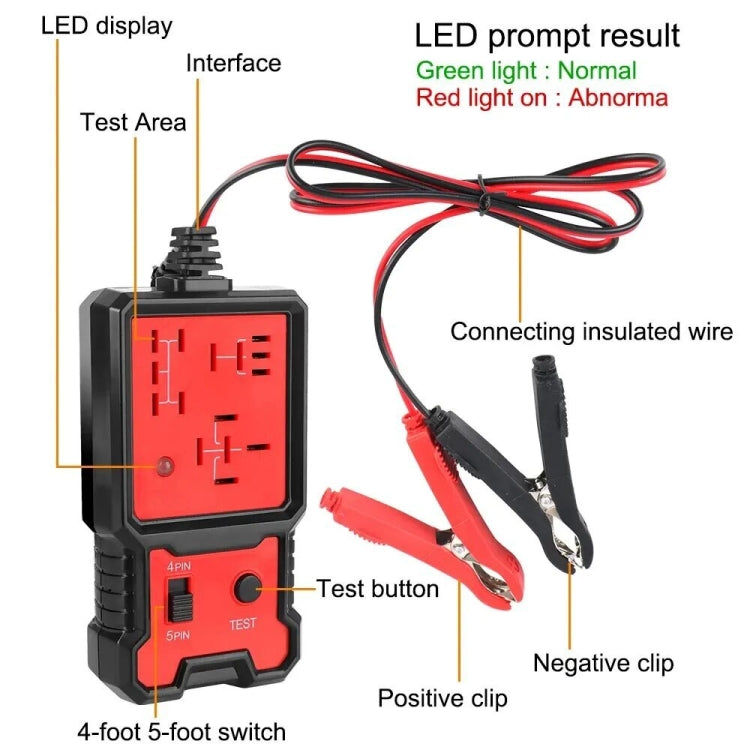

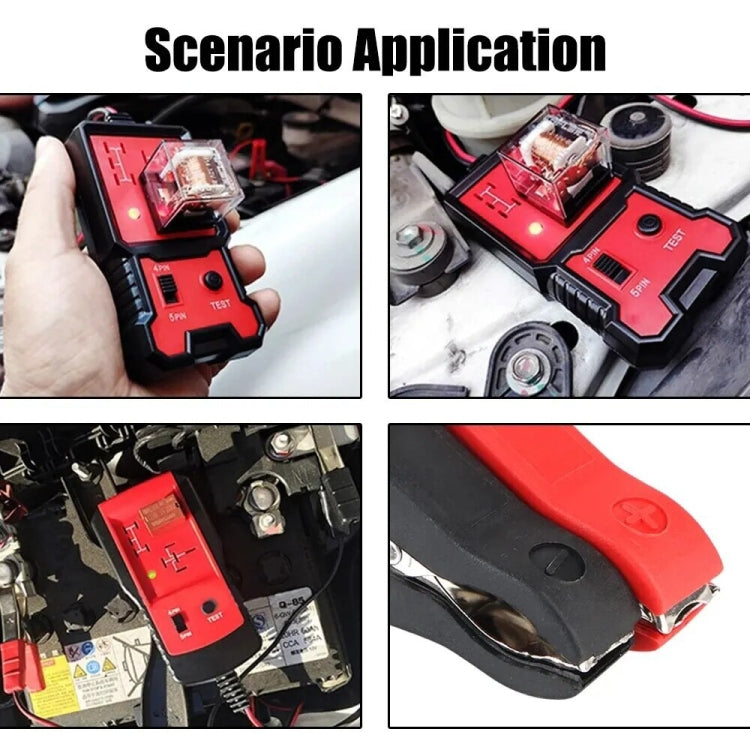

1. Connect the power leads to the car battery -- black alligator clip to negative terminal, red alligator clip to positive terminal.
2. Tester is powered up when the LED illuminates in RED.
3. Check the relay before plugging into the tester. If it is a 4 pin relay, select "4 pin" on the tester.If it is a 5 pin relay, select "5 pin" on the tester.
4. Plug in the relay into one of the three receptacles.
5. Press the "Test" button.
6. Tester will check the pin configuration of the unknown relay. Tester will light the RED LED if the unkonwn relay is not the same to the most of common automotive relaysor the pin of the unknown relay is destroyed.
7. Tester will open and close the relay 10 times for testing the time to contacts closure and opening if the pin configuration of the relay is right. Tester will light the RED LED immediately if the time is overtime.
8. Tester will check the consistency of the relay after testing the time to contacts closure and opening ten times. Tester will light the GREEN LED if the test passed, if not light the RED LED.
9. Disconnect power leads from the car battery and remove relay from the tester.
Attention:

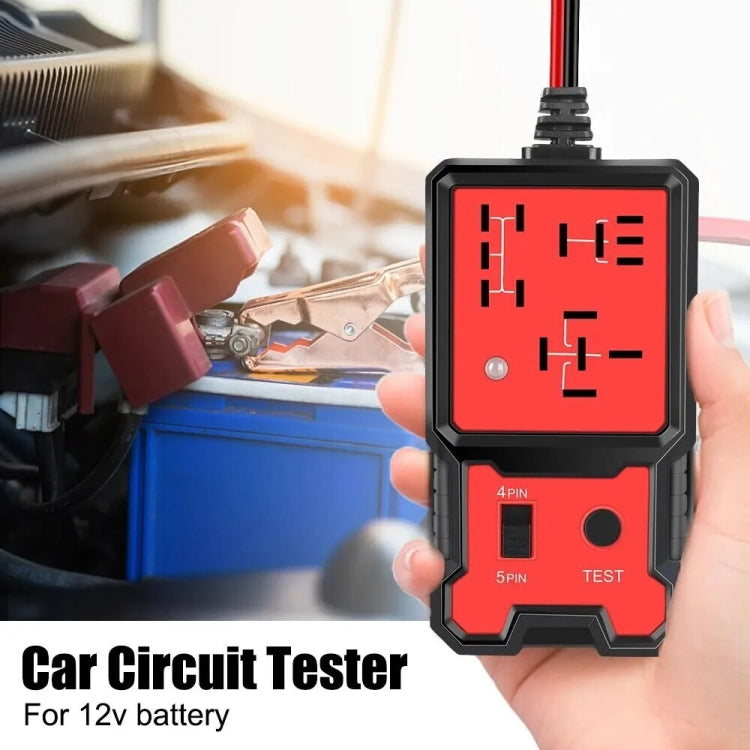

1. The car battery must be 12V battery, and the voltage of the battery is among 11V-15V.
2. Ideal for coil resistance above 20 ohms.
