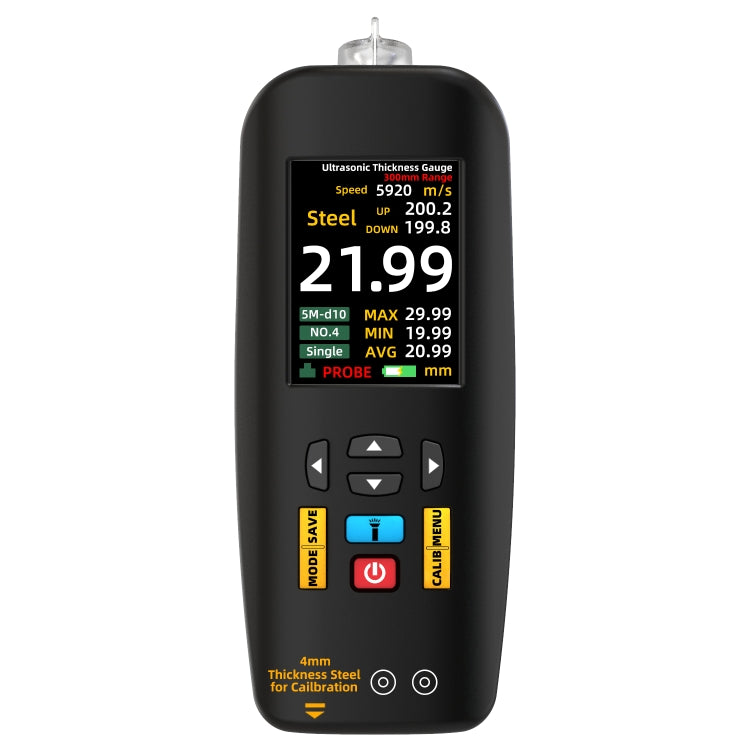

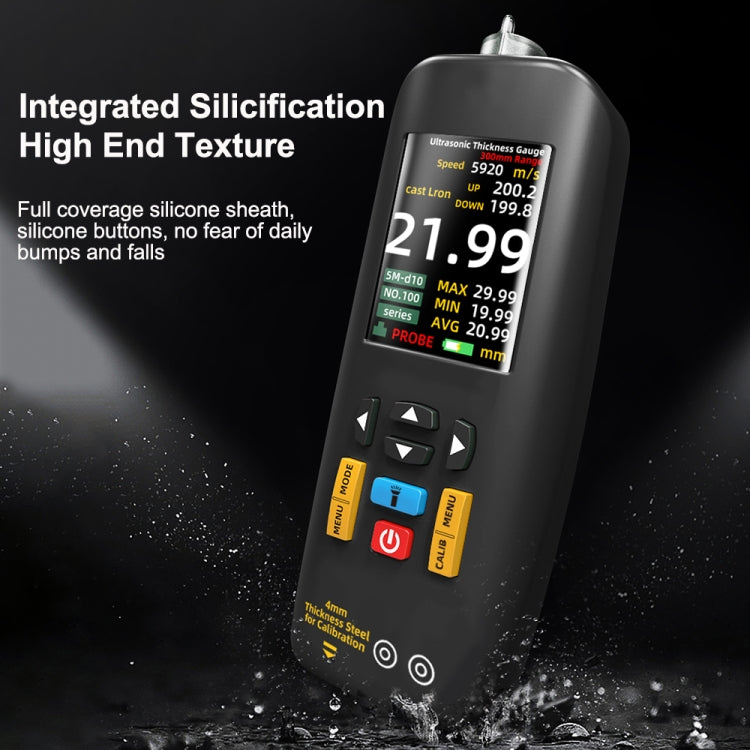

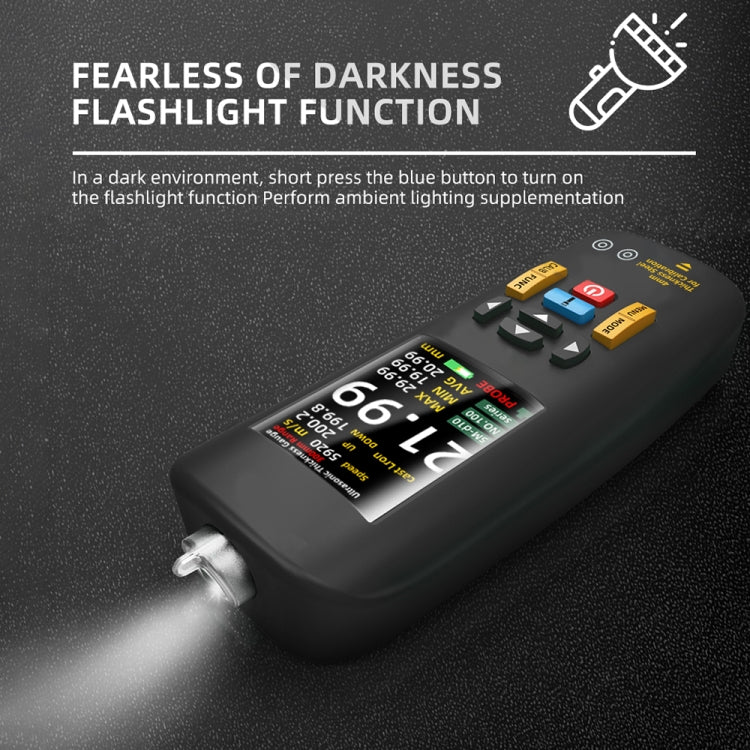

BSIDE T7 2.8 inch TFT Color Screen Ultrasonic Thickness Gauge

BSIDE T7 2.8 inch TFT Color Screen Ultrasonic Thickness Gauge

Regular price R 2,899.00
Regular price Sale price R 2,899.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, glass fiber and any other good conductors of ultrasound.

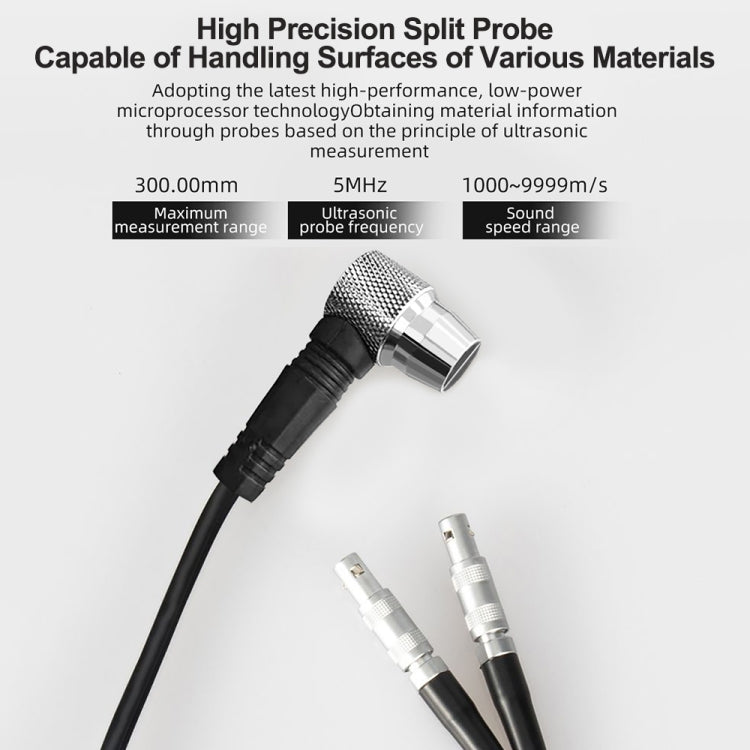

2. Can be equipped with a 5MHz frequency ultrasonic probe.
3. With a 4mm thickness, the stainless steel standard sheet is used for self-calibration and can automatically correct the system error.
4. The known thickness can be used to measure the sound velocity to improve the measurement accuracy.
5. With a coupling status prompt function.
6. With a remaining power indicator function, the remaining battery power can be displayed in real time.
7. Beautiful, portable, highly reliable, suitable for harsh operating environments, resistant to vibration, impact and electromagnetic interference.

Parameters:

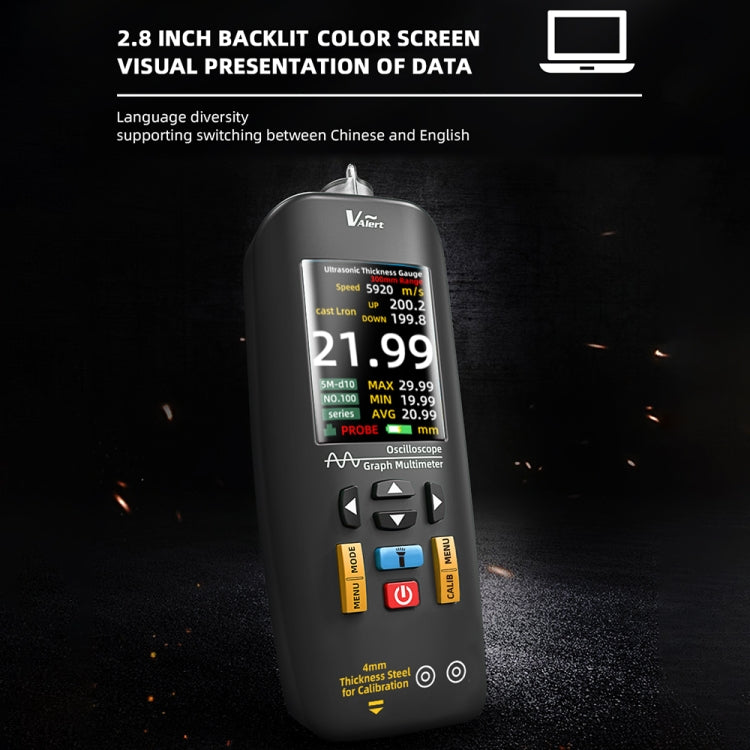

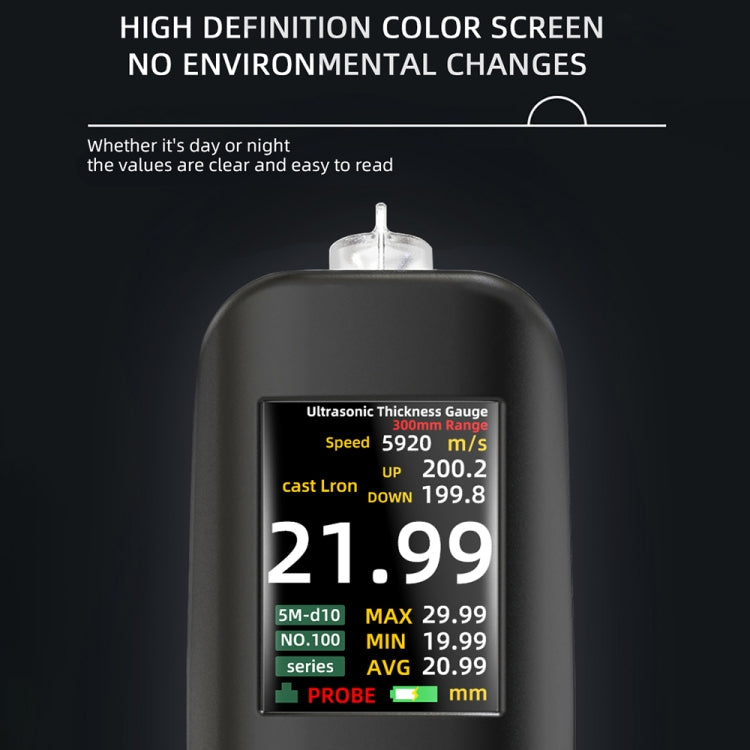

1. Display: 2.8-inch TFT color screen

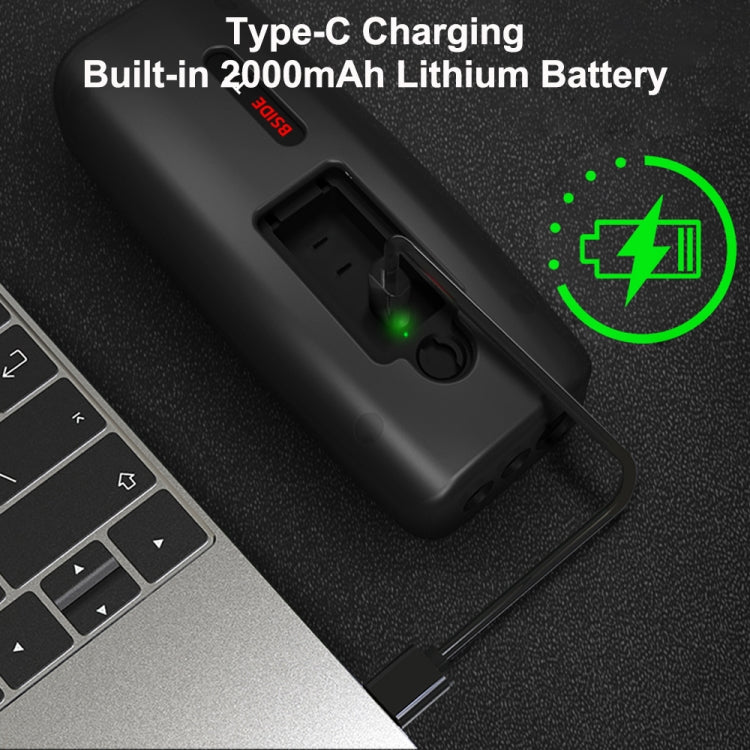

2. Power supply: built-in 3.7V 2000mA lithium battery
3. Automatic shutdown function: If the instrument is not used within 3 minutes, it will automatically shut down

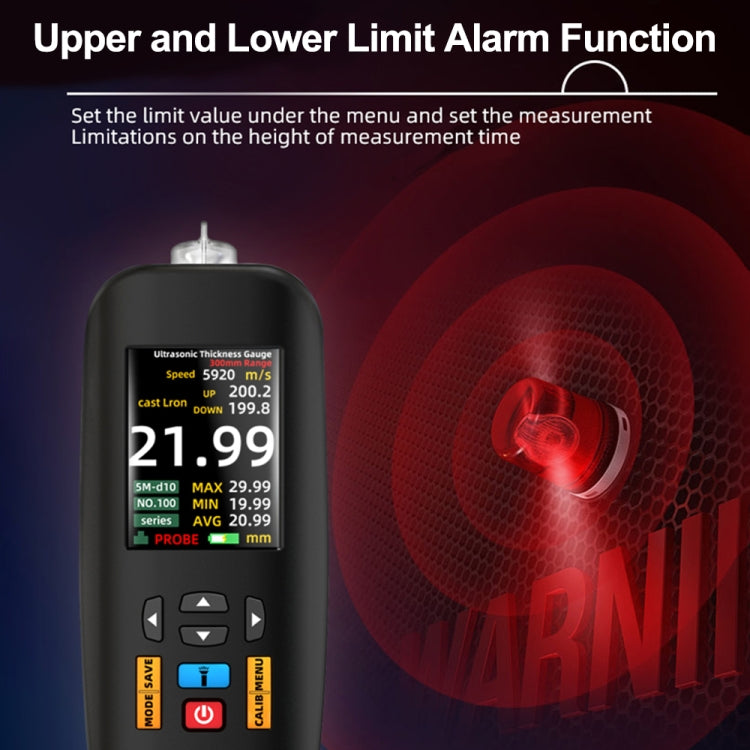

4. Over-range prompt: beeps twice in single mode and continuously beeps in continuous mode
5. Temperature and humidity:
Operating temperature: -20 degrees Celsius to +50 degrees Celsius
Storage temperature: -30 degrees Celsius to +70 degrees Celsius
Relative humidity: less than or equal to 90%
6. Environmental requirements: The surrounding environment has no strong vibration, no strong magnetic field, no corrosive media and severe dust.
7. Dimensions: 178x74x40.5mm
8. Weight: 265g

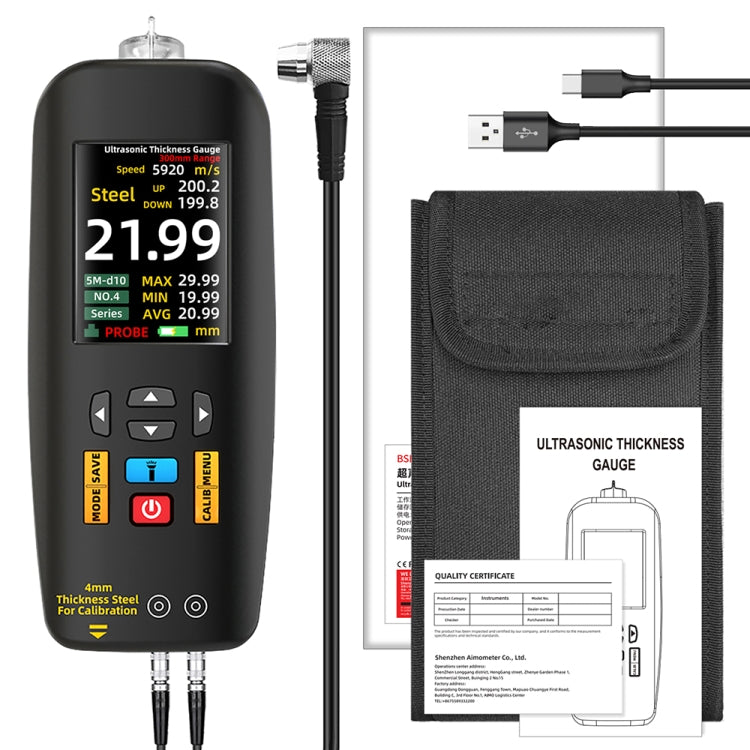

Package List:
Host x 1
Charging cable x 1
Tool kit x 1
Ultrasonic probe x 1
English manual x 1
Built-in 3.7V 2500mAh lithium battery x 1
Packing box x 1
