Description

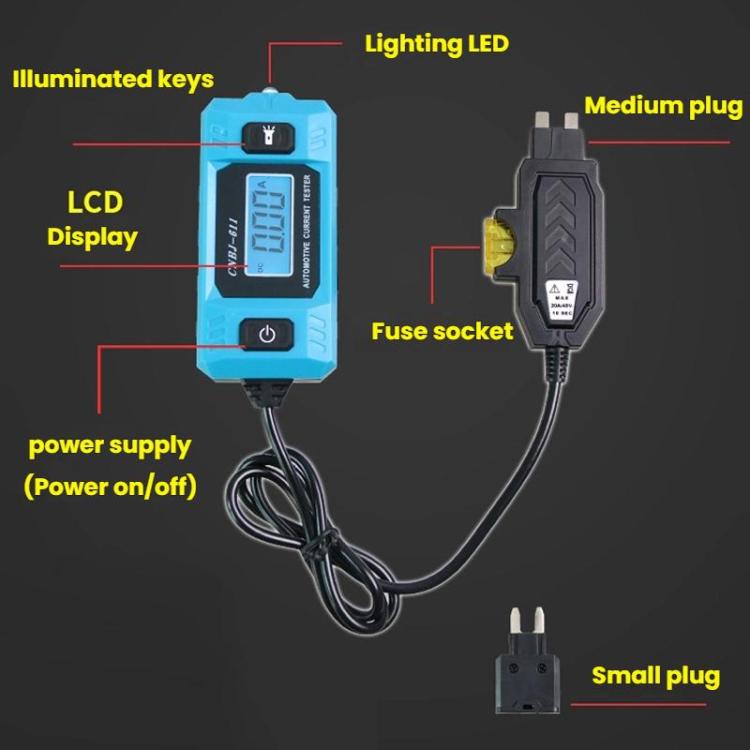

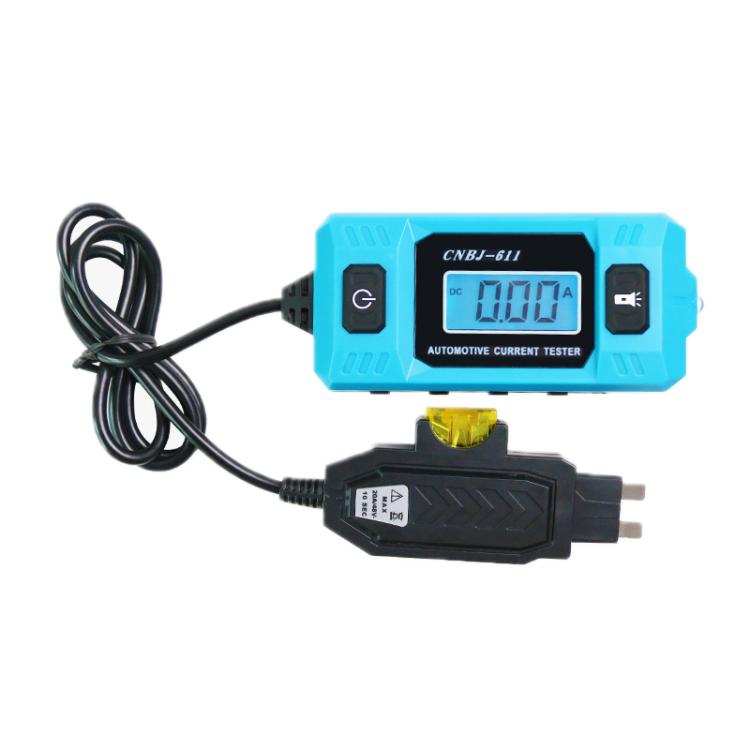

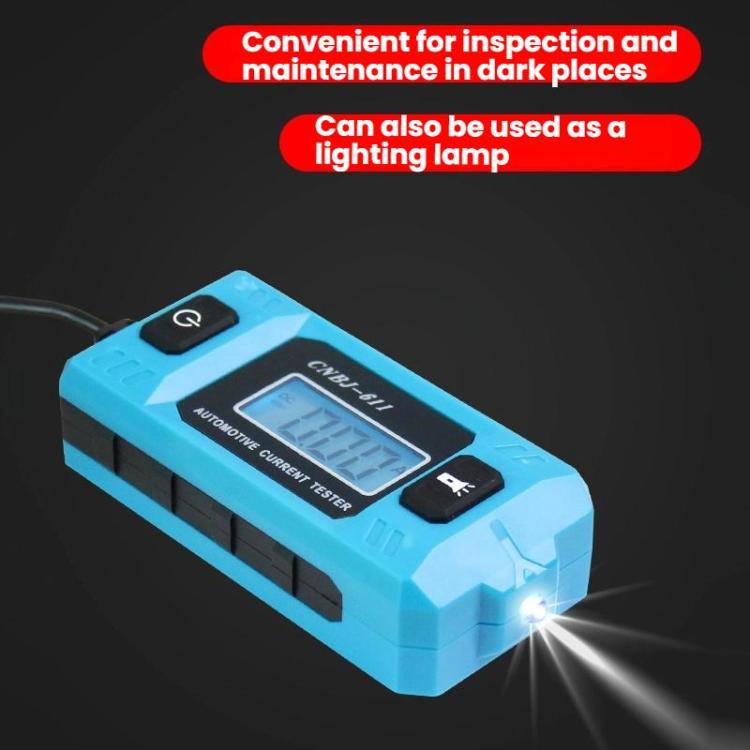

Automotive Fuse Current Leakage Fault Detector is a compact and portable device designed for testing electrical circuits in vehicles. It is suitable for diagnosing faults in automotive and commercial vehicle electrical systems, particularly in low-light conditions.
- Type: Automotive Fuse Current Leakage Fault Detector
- Dimensions: Tester 110mm x 45mm x 30mm; Plug 75mm x 36mm
- Weight: Approximately 110g
- Measuring Range: 0.01A - 19.99A
- Load (Maximum): 20A/48V (DC) for 10 seconds

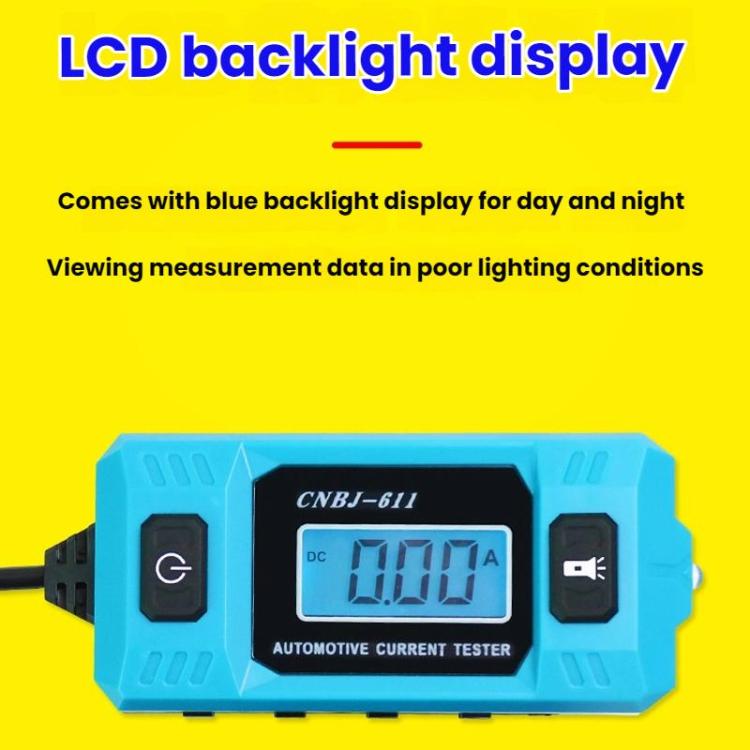

- Display: LCD screen with blue backlight

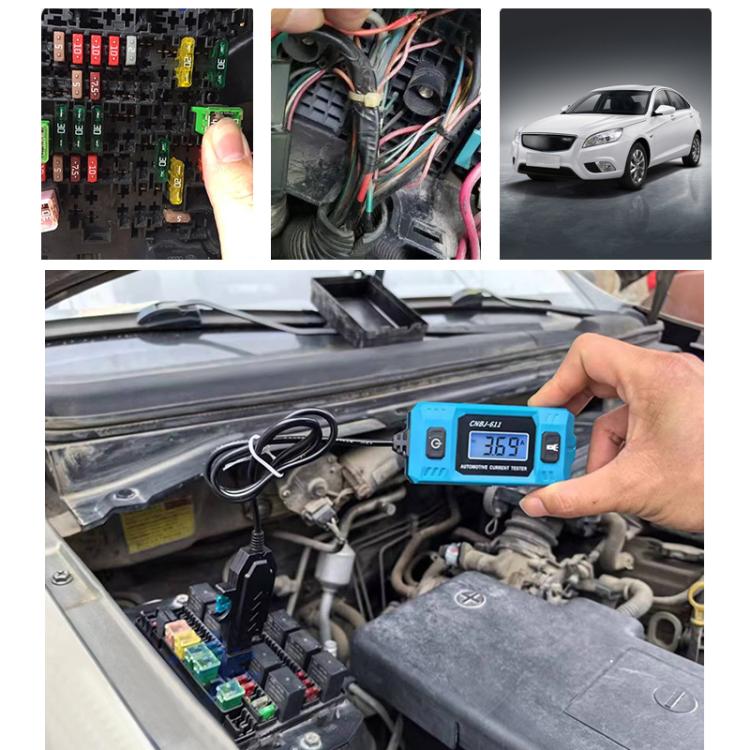

- Functionality: Suitable for electrical circuit fault detection in automobiles and commercial vehicles
- Operational Instructions:
- Turn off the vehicle's ignition before use.

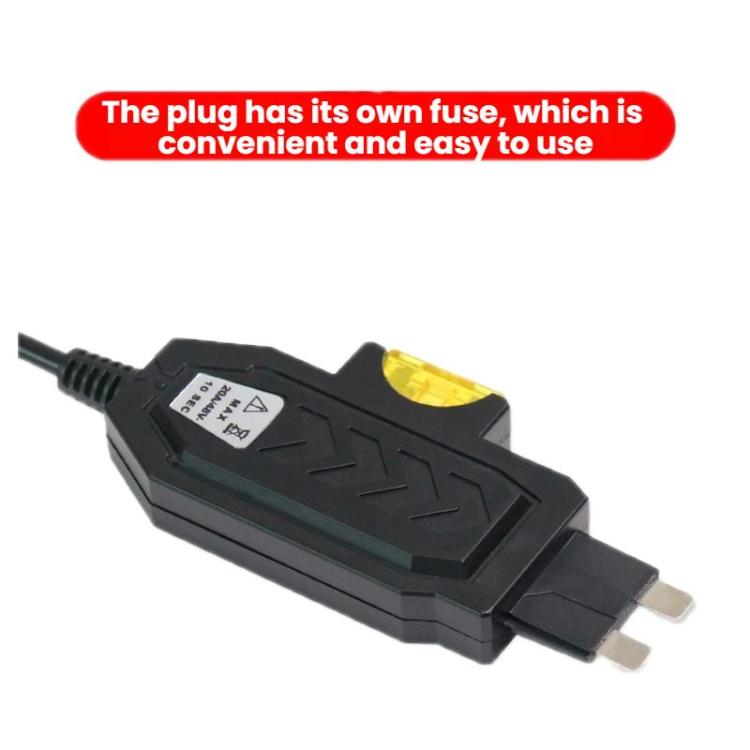

- Remove the vehicle's fuse and insert it into the tester's fuse socket.
- Insert the tester's plug into the vehicle's fuse socket.
- Turn on the vehicle's ignition if necessary and power on the tester.
- Read the current measurement on the display.
- Display indicates positive or negative current.
- Turn off the tester after use.
- Safety Notes:
- Tester is for vehicle current testing only.
- Blade fuse may become hot during testing; allow to cool before touching.
- Do not exceed the maximum load of 20A/48V for 10 seconds.
- Keep the tester dry and do not disassemble or modify.
- Avoid pulling on the tester cable and do not use if damaged.
