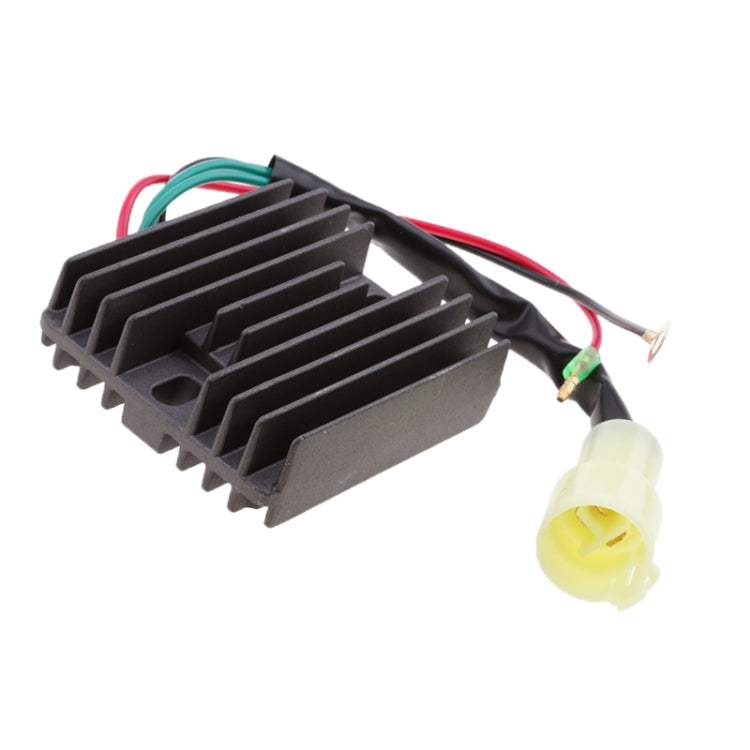

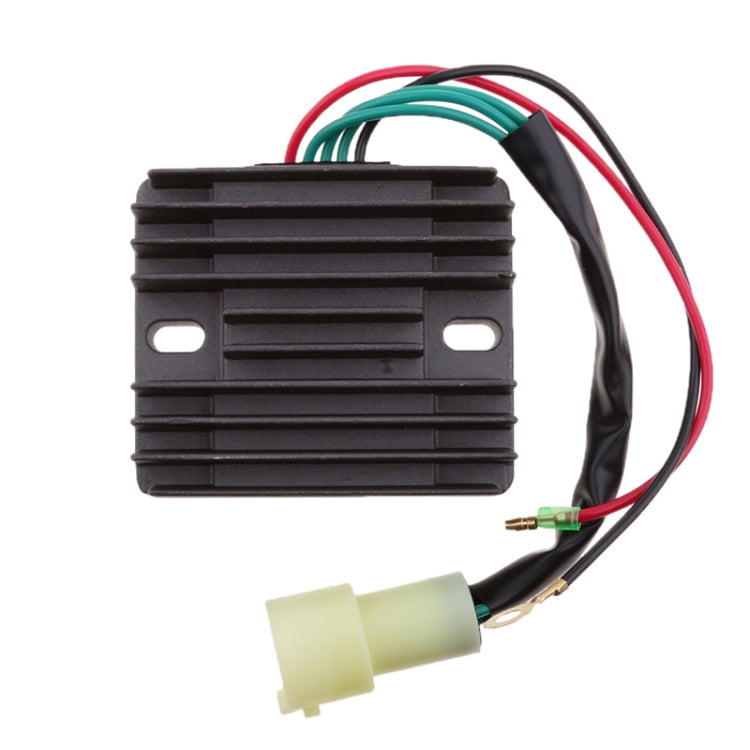

2003.7 Motorcycle Rectifier For 67F-81960-12-00 / Mercury 75-90 HP 804278A12

Name: 2003.7 Motorcycle Rectifier For 67F-81960-12-00 / Mercury 75-90 HP 804278A12
Brand: PMC Jewellery
SKU: TBD05475979
Price: 559.00 ZAR
Availability: InStock

R 559.00

Sale Sold out

FREE DELIVERY on all orders.

⚫🖤🟡Add to Cart Now for Black Friday Discounts! Hurry, stock is almost gone! 🟡🖤⚫

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Weight: 310G
2. Output voltage: 14.5V

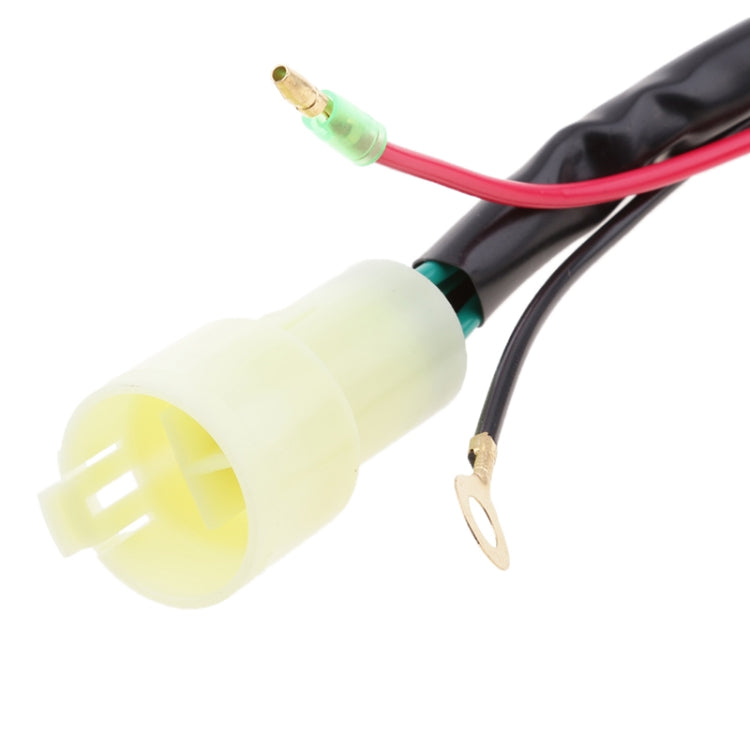

3. Wire length: 25CM
4. Category: Three-phase full-wave rectifier

Applicable models:
For Mercury 75-90 HP 4 Stroke/ Mercury 804278A12 Sign II Yamaha 75-80-90-100 HP PN: 67F-81960-12-00
For Cross Reference: 67F-81960-00-00, 67F-81960-11-00, 67F-81960-12-00, 804278A12, 804278T11

Installation precautions:

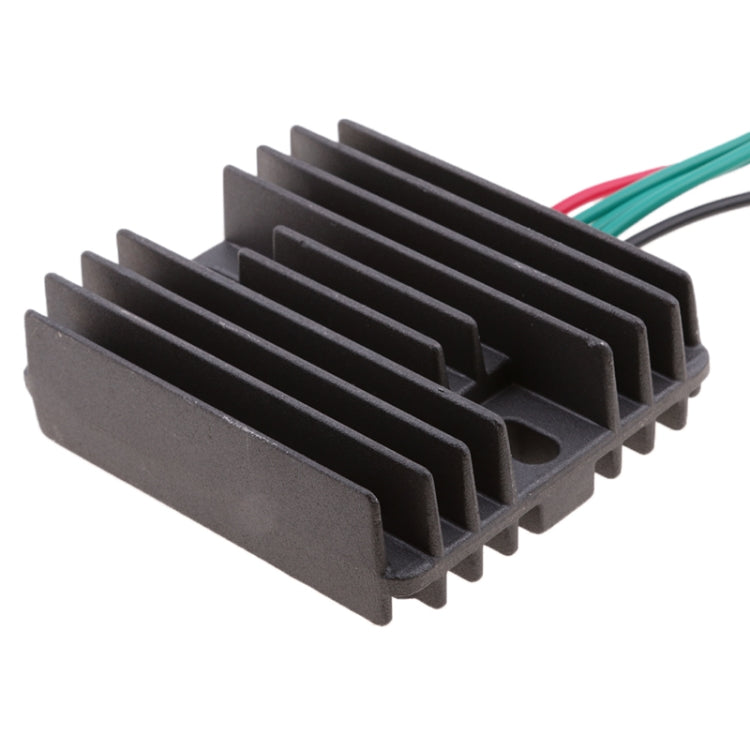

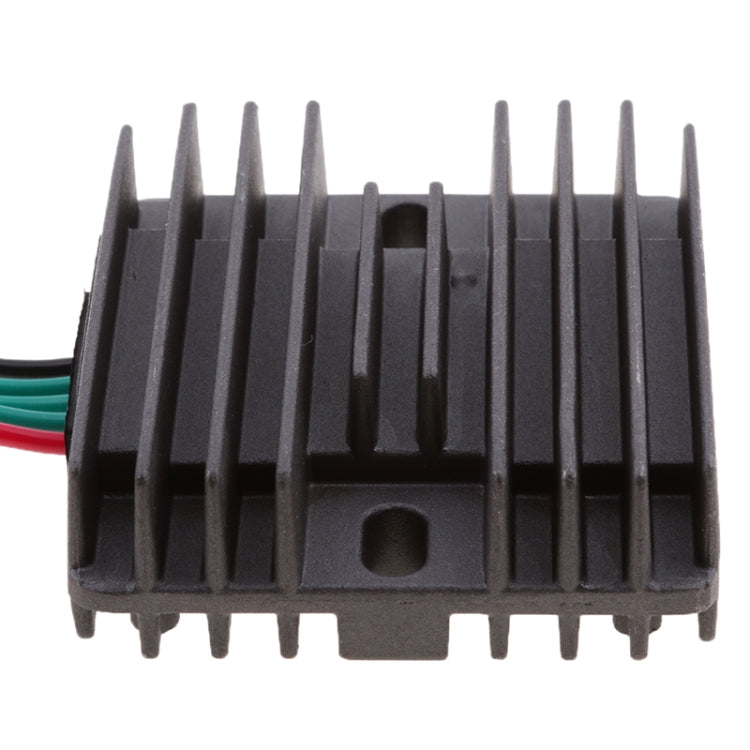

1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier

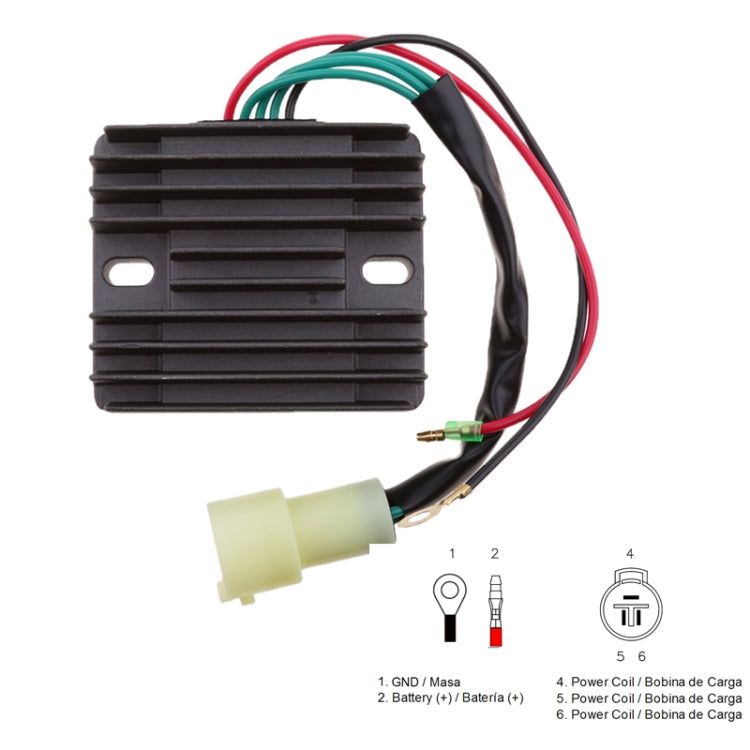

2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

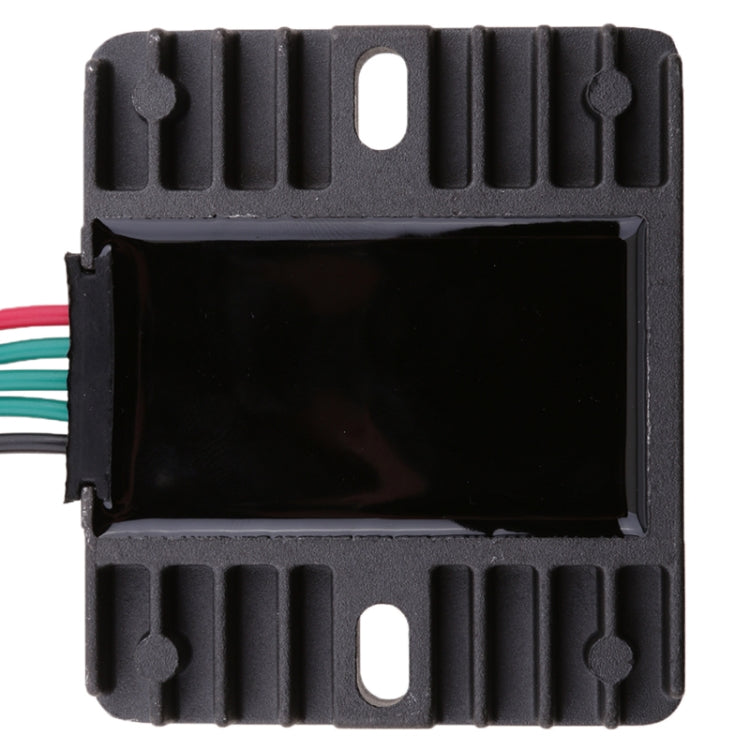

3. Note that the rectifier should be closely attached to the frame when installing it, which is conducive to heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.
