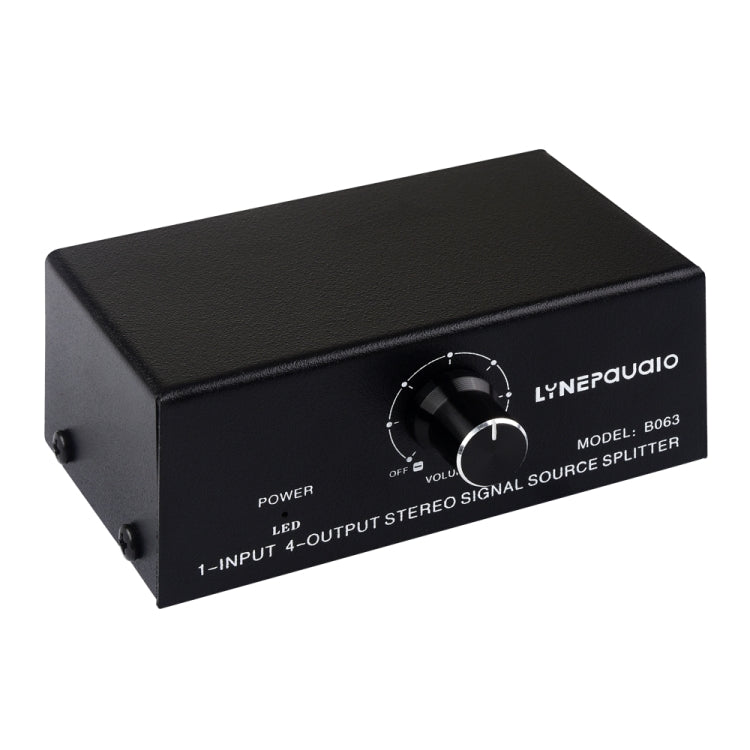

1 In 4 Out Audio Frequency Signal Distribute Device Non Consumption Output RCA Interface

Name: 1 In 4 Out Audio Frequency Signal Distribute Device Non Consumption Output RCA Interface
Brand: PMC Jewellery
SKU: SYA0017949
Price: 909.00 ZAR
Availability: InStock

R 909.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

Extra Surprise Discount: Add to Cart to view

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

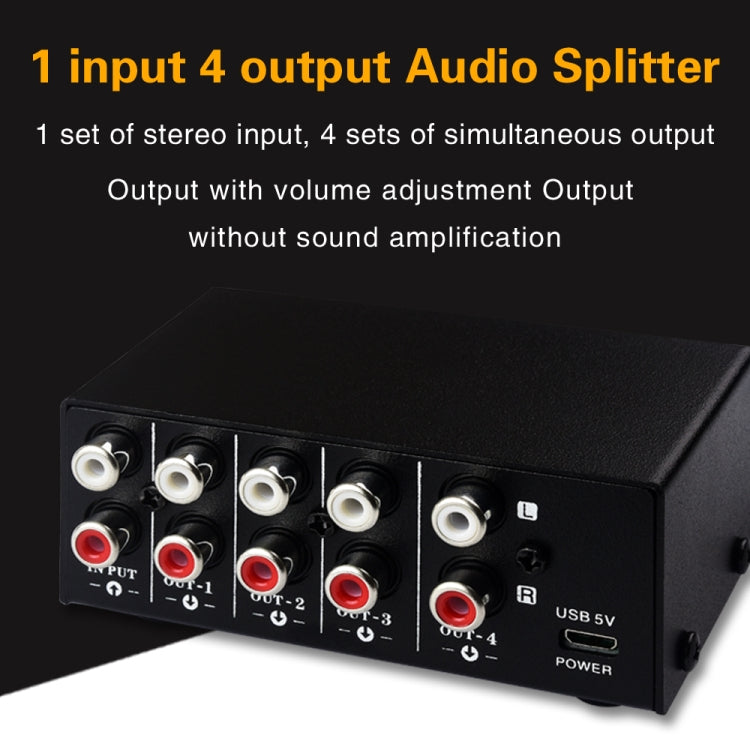

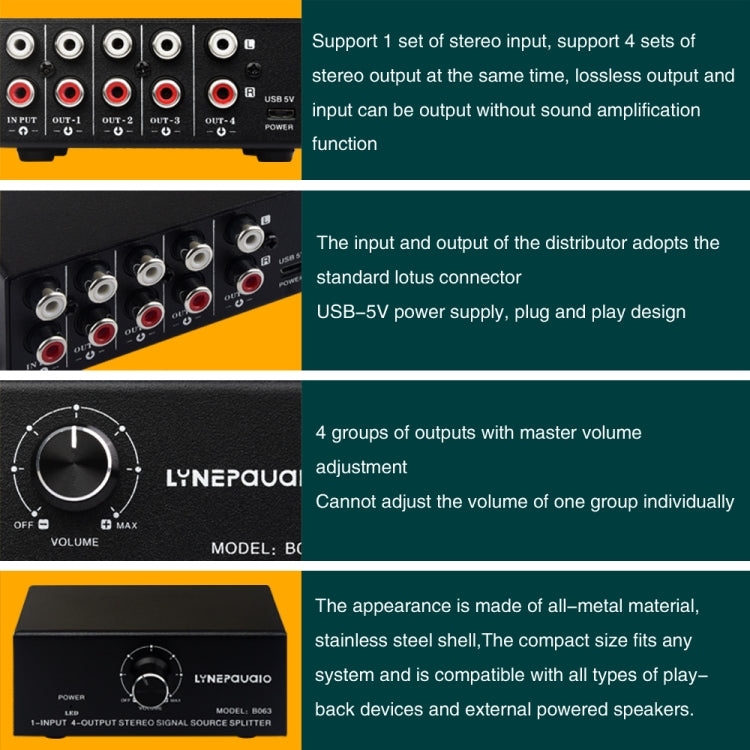

1. You have one stereophonic signal source (TV audio frequency, player, video game, mobile phone, PAD, computer, gramophone) want to output to other equipment at the same time (example the power amplifier, loudspeaker box or prepose amplifier)
2. This type product able to solve that 1 set stereophonic input able to distribute output 4 sets stereophonic,
3. Output has volume adjustment function, output without sound amplify function, the output keep the original tone quality and volume same with the input.

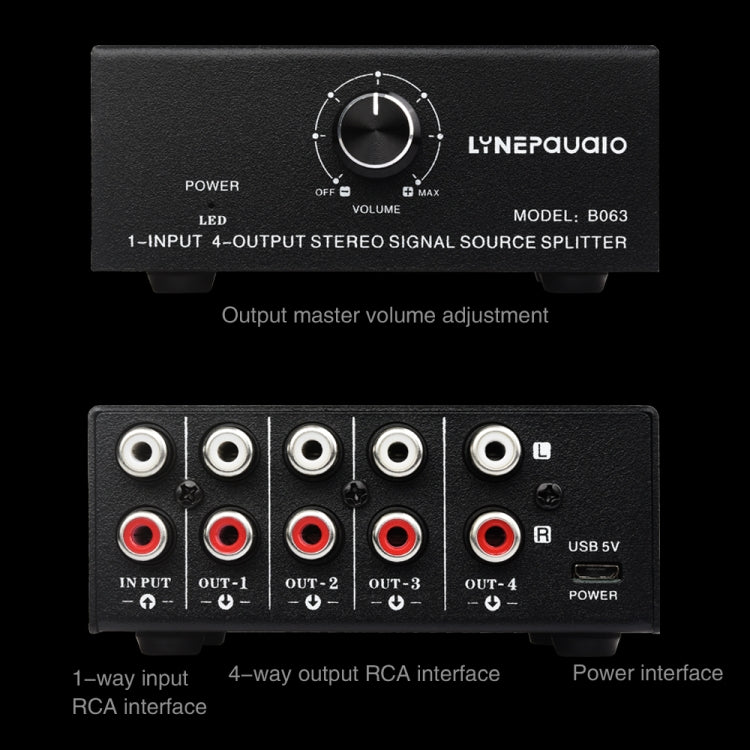

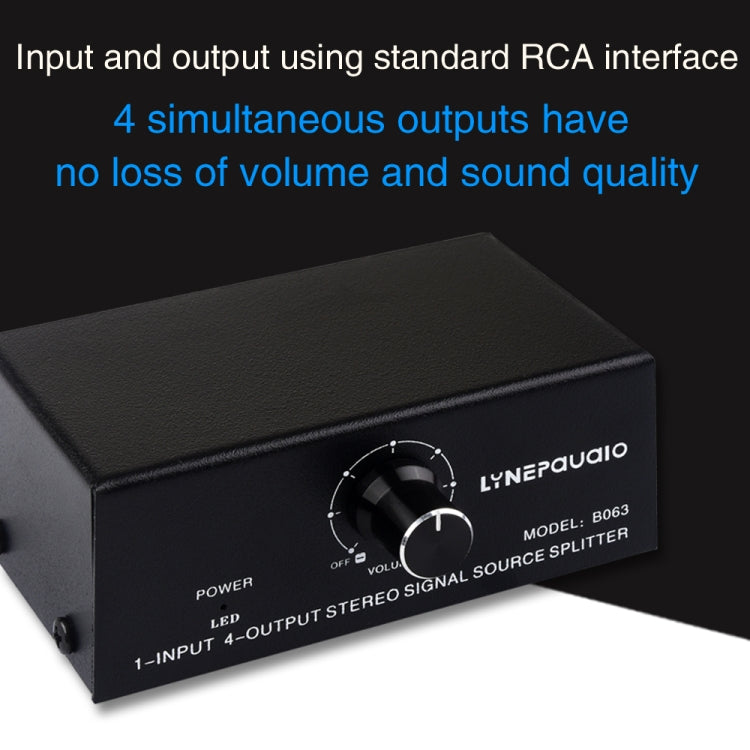

4. Input and output adopt standard RCA interface
5. Simple installation: input and output, able to be used once inserted, convenient to install, input and output signal no consumption, then can enjoy different hearing experience

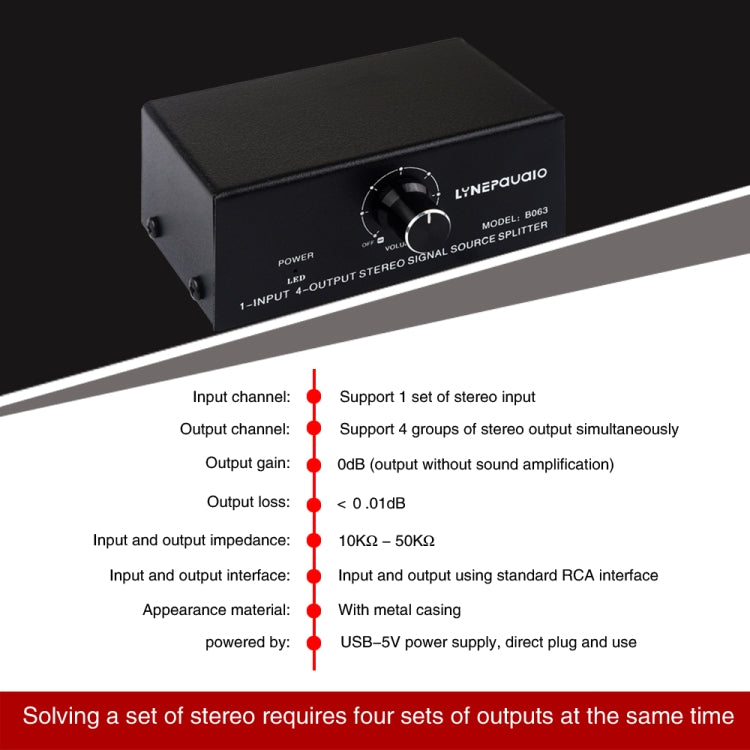

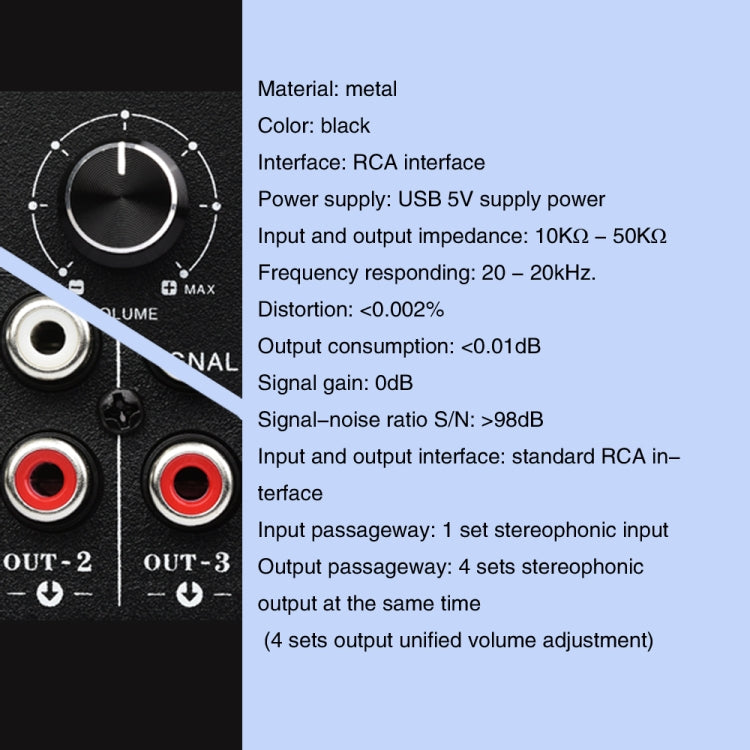

Product Parameter
1. Material: Metal
2. Interface: RCA interface
3. Power supply: USB 5V supply power
4. Input and output impedance: 10K ohms - 50K ohms
5. Frequency responding: 20 - 20kHz.
6. Distortion: Less than 0.002%
7. Output consumption: Less than 0.01dB
8. Signal gain: 0dB
9. Signal-noise ratio S/N: Greater than 98dB
10. Input and output interface: Standard RCA interface
11. Input passageway: 1 set stereophonic input
12. Output passageway: 4 sets stereophonic output at the same time (4 sets output unified volume adjustment)
13. Single product net weight: 0.21kg

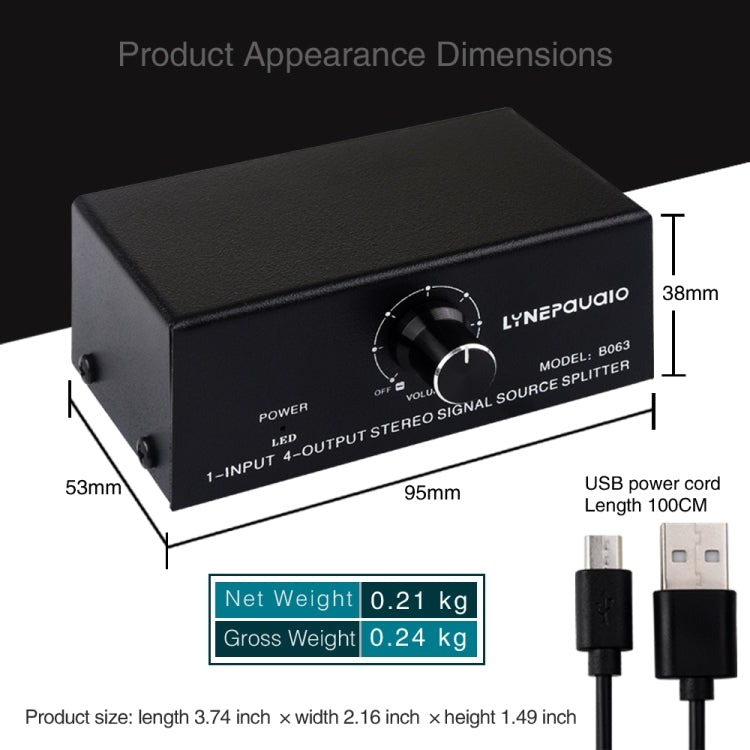

14. Product size: 95mm x 53mm x 38mm

Kit list
1. B063 1 in 4 out audio frequency signal distribute device RCA interface x 1
2. USB power supply wire (wire length 100cm) x 1
